Eine Baureihe mit vollständig bestückten Anschlussfeldern mit Feedthrough-DVI-Buchsen (doppelseitige Back-to-Back-Bestückung), die eine einfache Systemverkabelung und von mobilen und externen Geräten gestatten. Bei den Adaptern handelt es sich um vollständig bestückte, normalisierte Anschlüsse (DVI-Kupplung auf DVI-Kupplung) mit Kompatibilität für 'DVI-I Single/Dual Link', 'DVI-D Single/Dual Link' und männliche DVI-A Kabelstecker. Die Steckkontakte sind vergoldet.
Gefertigt von Canford.
A range of panels supplied fully-populated with feedthrough (also known as double-sided or back-to-back) DVI sockets, enabling system patching and easy connection of portable or external equipment. The adapters are fully-populated DVI female to DVI female, wired straight through pin-to-pin, and are compatible with DVI-I single/dual link, DVI-D single/dual link and DVI-A male cable connectors. Pins are gold-plated.

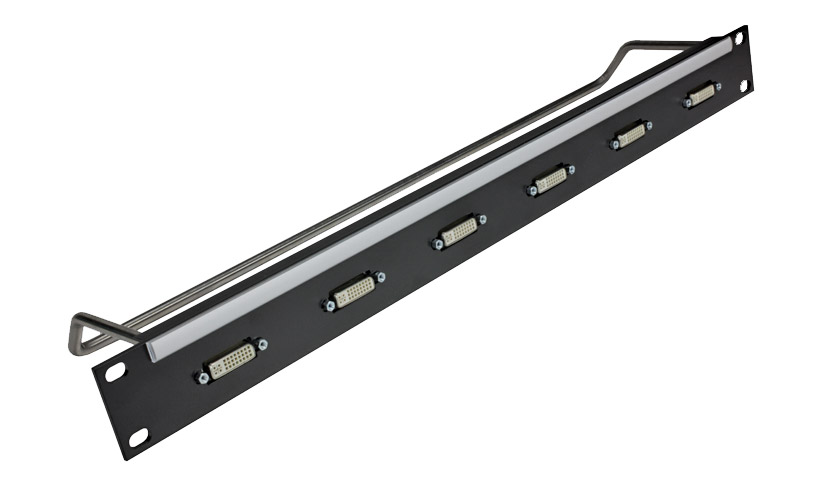

Manufactured from a lightweight but extremely rigid aluminium extrusion, panels are fitted with a cranked lacing-bar allowing easy access to the rear sockets. The connectors are equally spaced across the panel and a designation-strip holder with snap-on cover is fitted above the connector row to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.
Available finished in Dawn Grey (BS4800-10A03), Dark Grey or Black.
Optional accessories: see DVI Cables, 'HDMI Adapters' and see Canford Rackbracket - Recess mounting brackets.
Technical Note - DVI
| DVI-D single link: |
Some DVI 'digital' signal pins connected |
| DVI-D dual link: |
All DVI 'digital' signal pins connected (for higher resolution displays) |
| DVI-I, DVI 'integrated': |
Digital and analogue signal pins connected |
