Auslieferung in Vollbestückung mit geschirmten RJ45 CAT5E Feedthrough-Buchsen (doppelseitige Back-to-Back-Bestückung) zur Systemverkabelung und leichten Einbindung von mobilem und externem Equipment. Ein bedruckbarer Beschriftungsstreifen mit aufschnappbarer Abdeckung und eine Kabelführung gehören zur Standardausstattung.
Gefertigt von Canford.

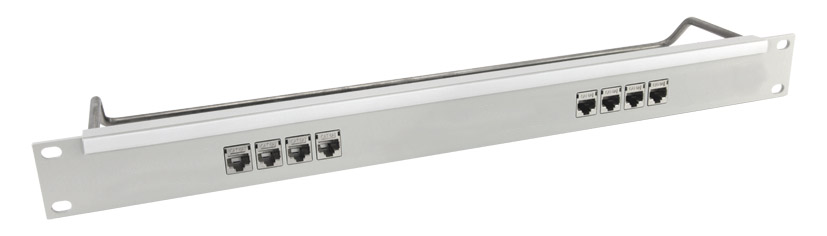

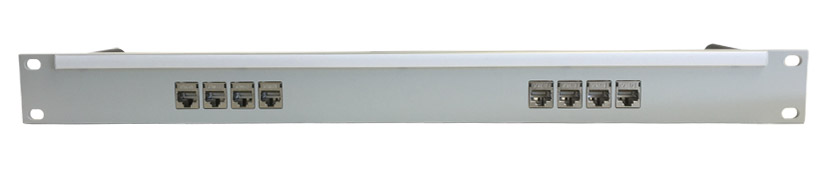

A range of panels supplied fully populated with feed-through (also known as double-sided or back-to-back) screened, RJ45, CAT5E sockets, enabling system patching and easy connection of portable or external equipment. A printable designation-strip with snap on cover and a lacing bar are fitted as standard.

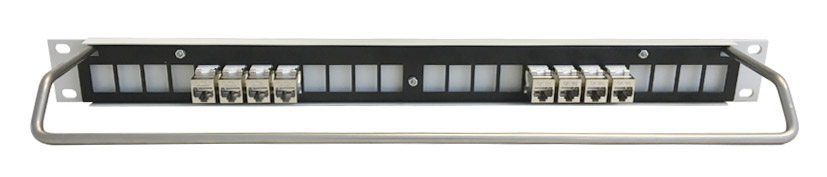

Manufactured from a lightweight, but extremely rigid, broadcast style, aluminium extrusion. The individual connectors are mounted in a sub chassis and are presented flush with the face of the front panel. Panels are fitted with a cranked lacing-bar giving easy access to the rear sockets. The connectors are arranged in equal groups either side of a central divide and a designation-strip holder with snap-on cover is fitted on the front panel to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

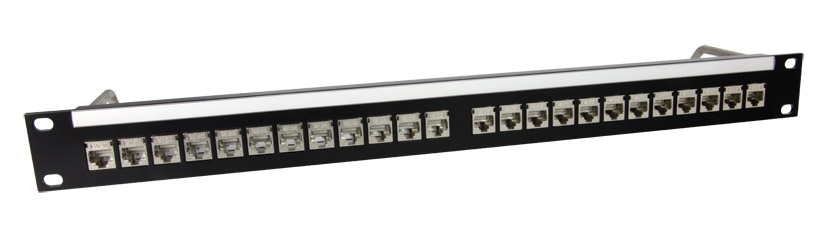

Available finished in Dawn Grey (BS4800-10A03) or Black.
Optional accessories: see Canford Rackbracket - Recess mounting brackets.
Technical Note:
Screened (FTP) 100 ohm Cat5E RJ45 modules are recommended for electrically noisy areas and are suitable for LAN data rates up to 100Mb/s and for AES/EBU digital audio. Cat5E also supports short-run Gigabit Ethernet (1000Mb/s) networking by utilising all four wire pairs and is backward compatible with ordinary Cat5.
Manufactured by Canford.
