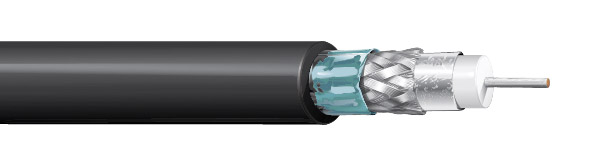

BELDEN 4731ANH - UHDTV DIGITAL VIDEO CABLE Low fire hazard

BELDEN 4731ANH CABLE Dca (s1 d1 a1), black
BELDEN 4731ANH CABLE Dca (s1 d1 a1), black

75 ohm coaxial cable specifically for 4K 12G digital video signals, triple screened, in a ‘non-halogen’ construction. Industry type RG11/U.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Z
Inner conductor: 1.63mm (14AWG) silver plated copper
Dielectric: Foam polyethylene, 7.11mm OD
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid, optical coverage 95%
Screen 3: Aluminium/polypropylene tape bonded to outer jacket
Construction: Coaxial cable
Jacket: Low Smoke Zero Halogen material, black
Overall diameter: 10.2mm
CPR Euroclass: Dca-s1,d1,a1
Minimum bend radius: 101.3mm
Impedance: 75 ohms
Capacitance: 50.8pF/m nominal
Attenuation: MHz 10 100 180 750 1500 3000 6000 12000
dB/100m 1.5 4.1 5.3 11.0 15.8 23.2 34.3 53.8
Weight: 12.94kg/100m
Reel length: 305m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

BNC Male - 3G

Ordering note: Other colours available to special order, contact sales for further details.

Bezeichnung Preis €
Hinzufügen
BELDEN 4731ANH CABLE Dca (s1 d1 a1), black Black Artikelnummer: 60-4731ANH
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Monate. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
1+ 24,62 €
100+ 19,69 €
500+ 19,21 €
1.000+ 18,47 €
pro Meter
