Shure BLX wireless radiomic systems have been designed for users wanting to make the move from wired microphones into the wireless microphone market. Systems are available with a variety of handheld, headworn, or lavalier options, and either single or dual channel broadcast. Up to twelve BLX series systems can be used within channels 606-630MHz (channel 38), depending upon region and band congestion.
Shure have implemented a ‘QuickScan’ feature that allows the user to locate the best available frequency with a single button press. Internal micro-processing controls the diversity of the antenna to reduce RF signal dropout.
Usage Note: Licensing and legal use information for radiomic equipment in this product group is applicable to the UK only. Customers should check with the relevant regulatory body for the territory the equipment is to be used in prior to purchase to ensure appropriate legal usage and local environmental restrictions.
Unless otherwise stated, the below equipment is operational on channel 38, 606-630Mhz.

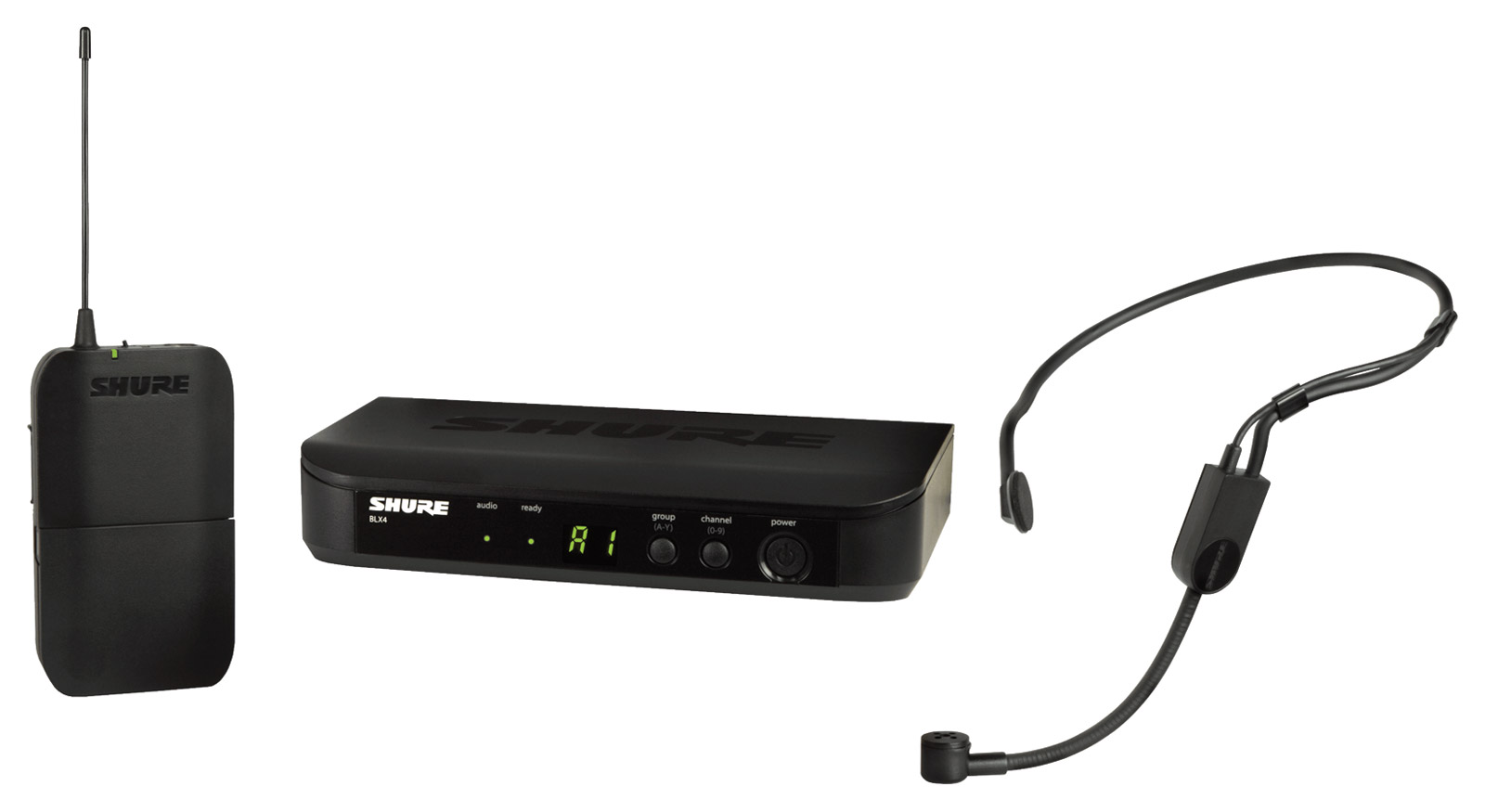

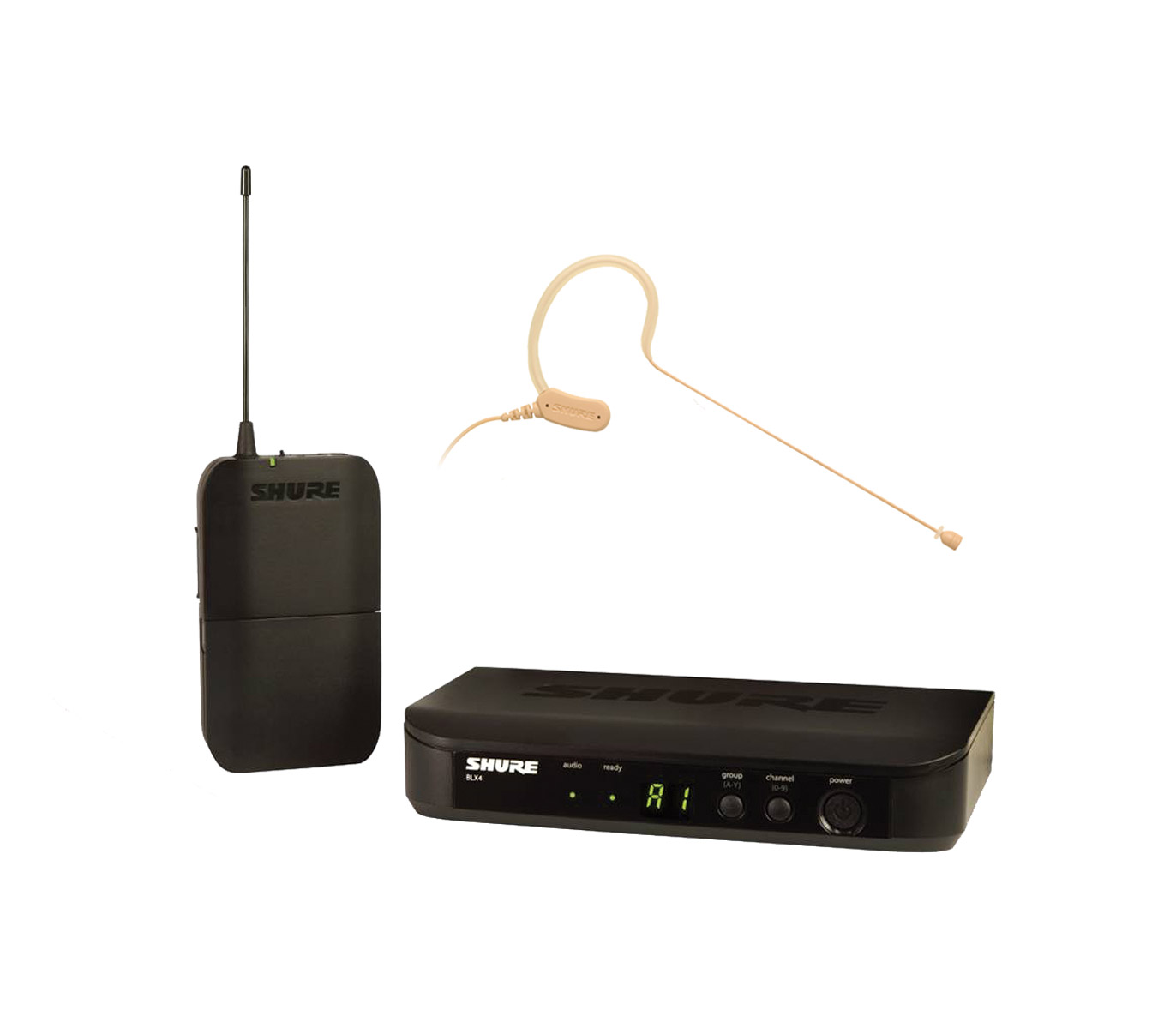

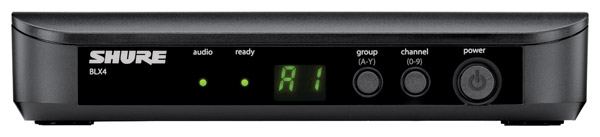

BLX4 Receiver – Fixed
Shure BLX4 wireless receiver is manufactured from moulded ABS plastic and is the most cost effective of the BLX receivers, whilst offering the same ‘one-touch’ channel and group scan features along with internal antenna to avoid damage in transit. The front facing panel of the receiver has a power switch, soft-touch channel and group scan buttons and a two digit LED display showing the channel set. A green LED illuminates when the receiver has locked onto a transmitters frequency and is ready to operate. A second, dual-colour LED illuminates green to signify normal audio levels, and red to signify overload or clipping. The rear panel has 12-15V, 160mA DC input, 3-pin balanced XLR output, and 6.3mm jack output at line level.
Image rejection: 50dB, typical. RF sensitivity: -105dBm, for 12dB SINAD, typical. Dimensions (HxWxD): 40 x 188 x 103mm. Weight: 241g

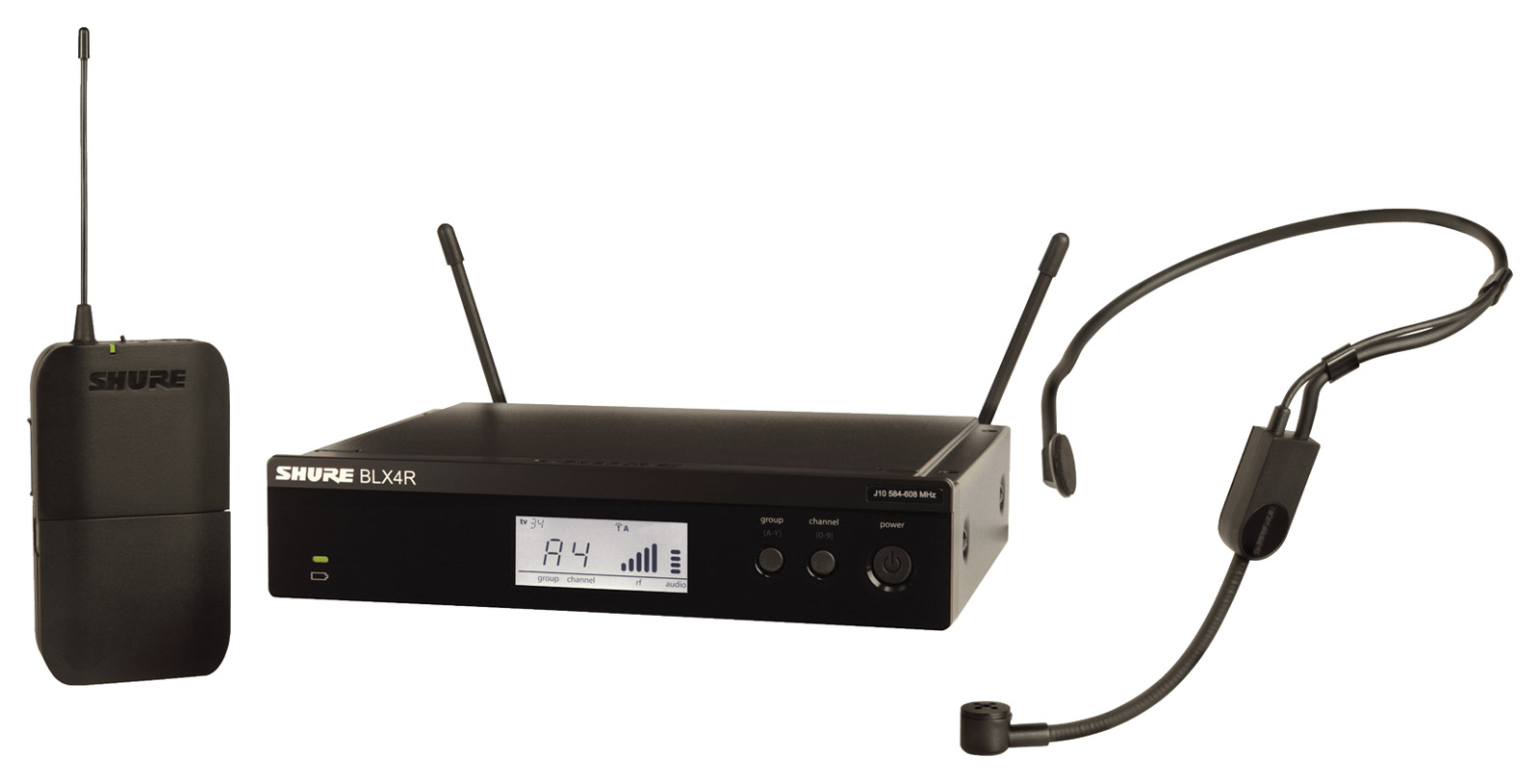

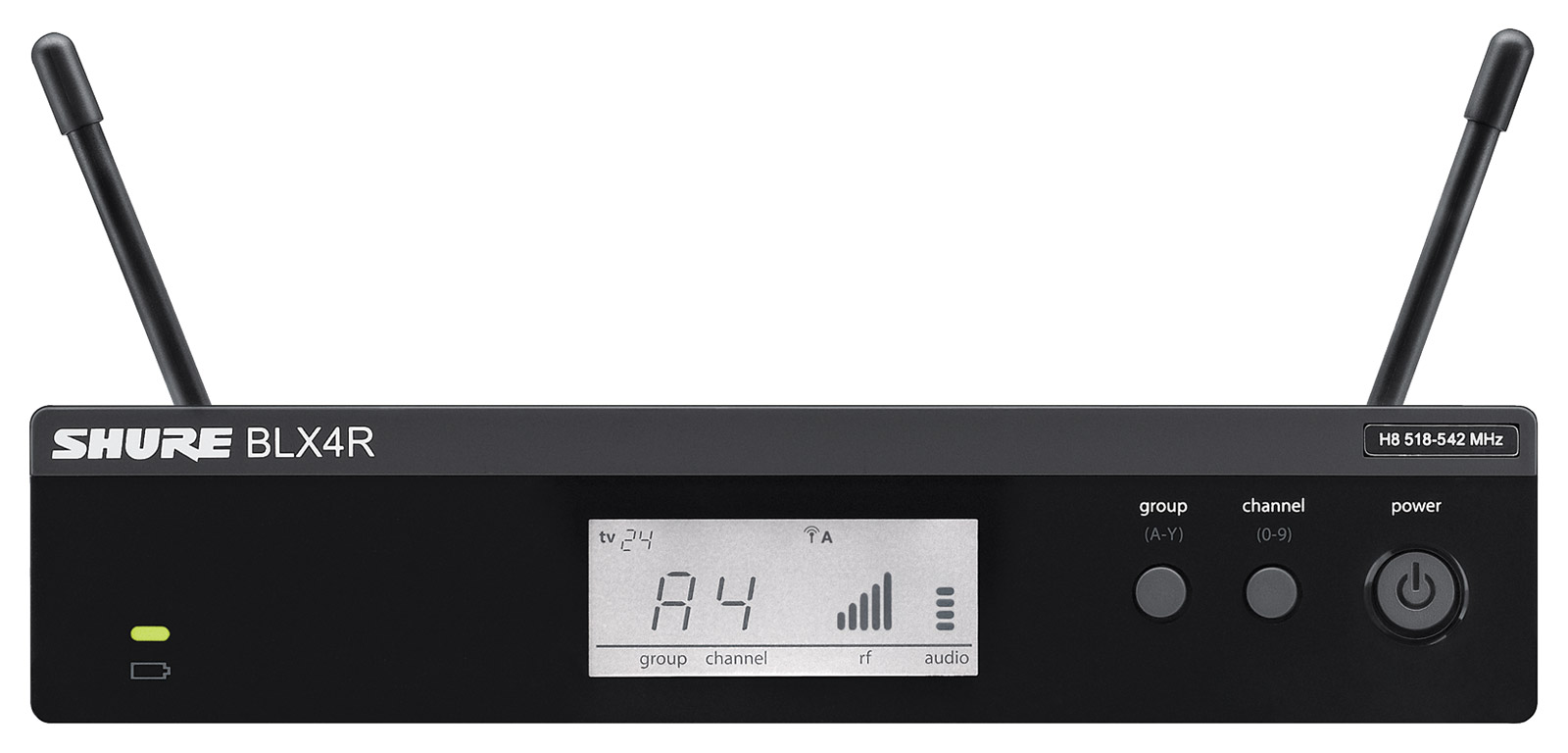

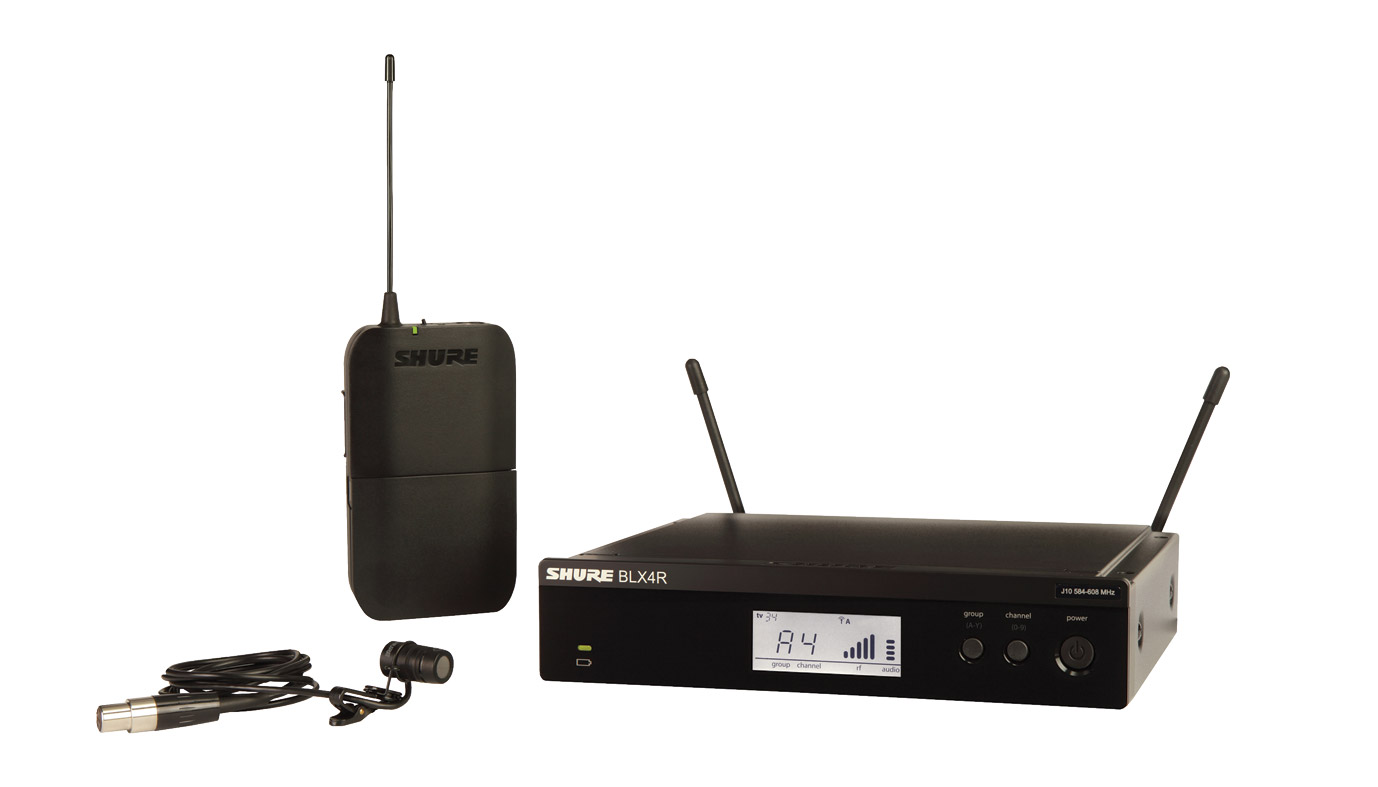

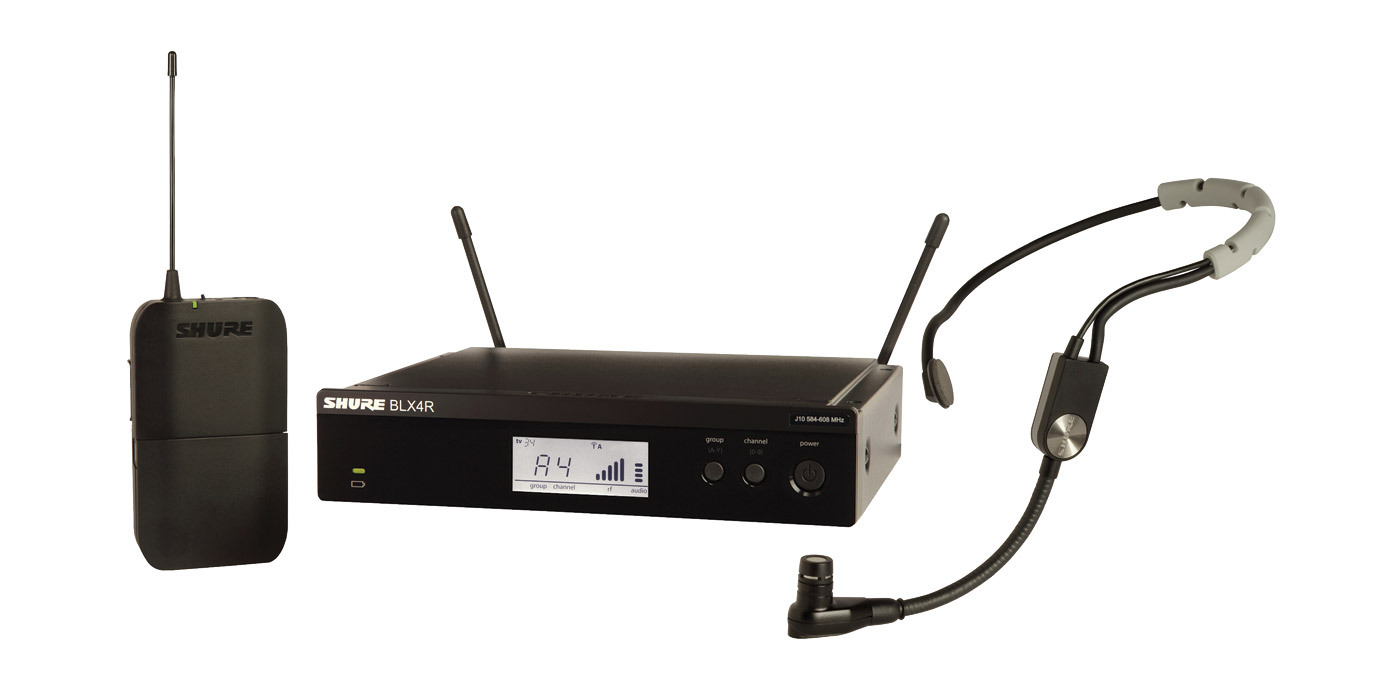

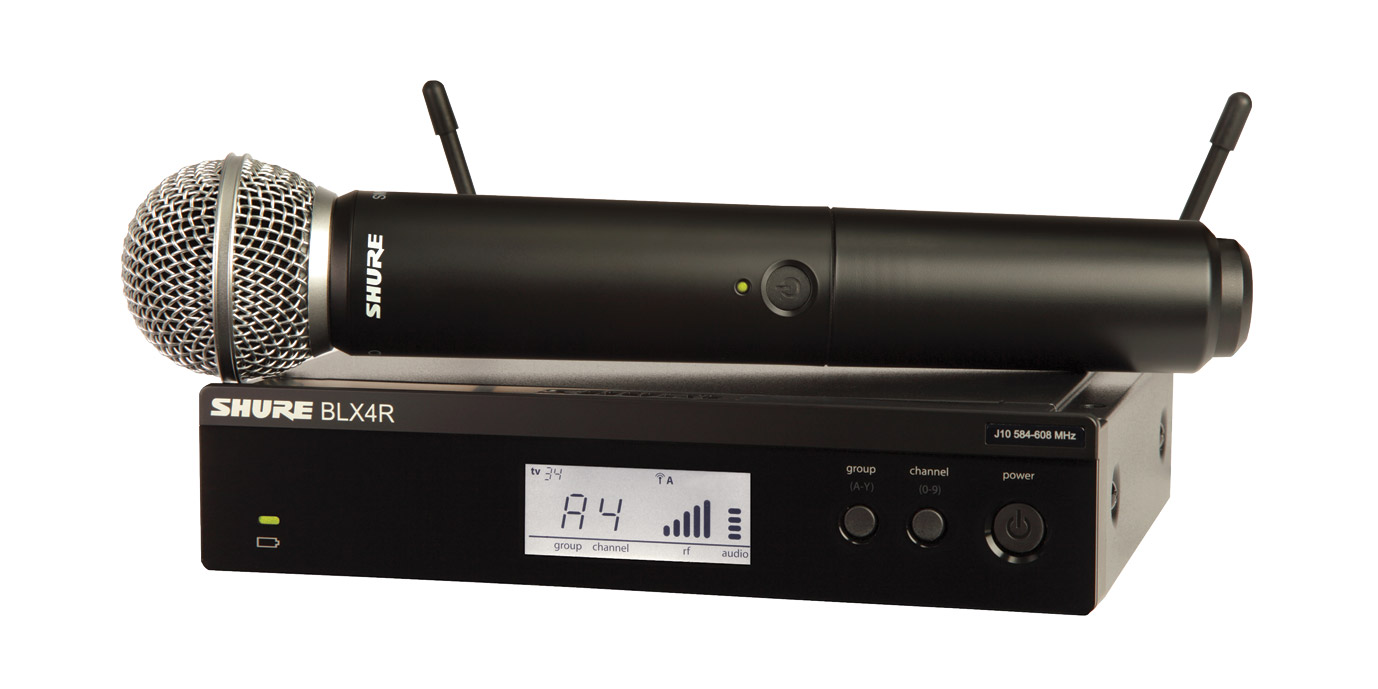

BLX4R Receiver – Rackmount

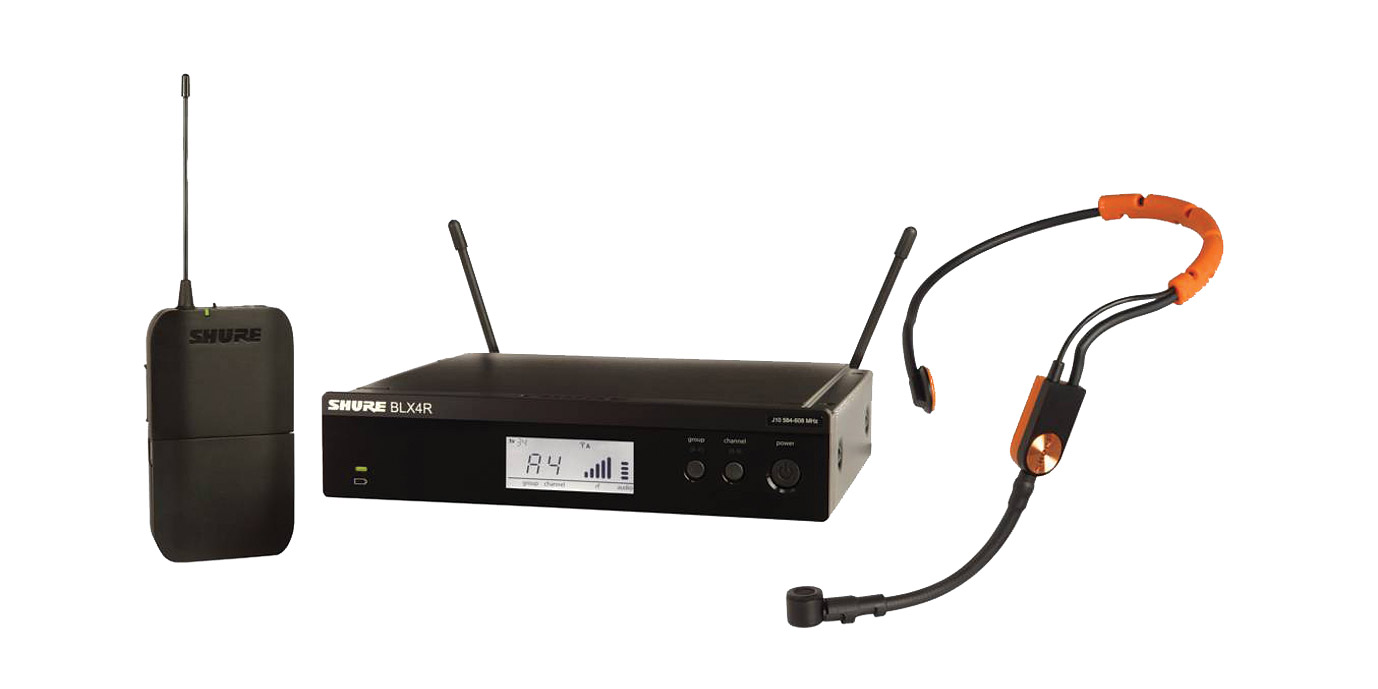

Shure BLX4R wireless receiver has many of the features of the BLX4, including channel and group scan buttons, however it is manufactured from moulded ABS plastic and metal, and is designed to be secured into a single 19-inch rack space using the included rack adapter kit. The front facing panel of the receiver hosts the power switch, soft-touch channel and group scan buttons and a LCD display that shows the channel set, RF strength, audio signal level, and antenna operation. A dual-colour LED illustrates the corresponding transmitter’s battery status, with green signifying a run time greater than one hour, and red signifying a run time of less than one hour. The BLX4R also has a control and power lock function to avoid risk of unwanted changes.

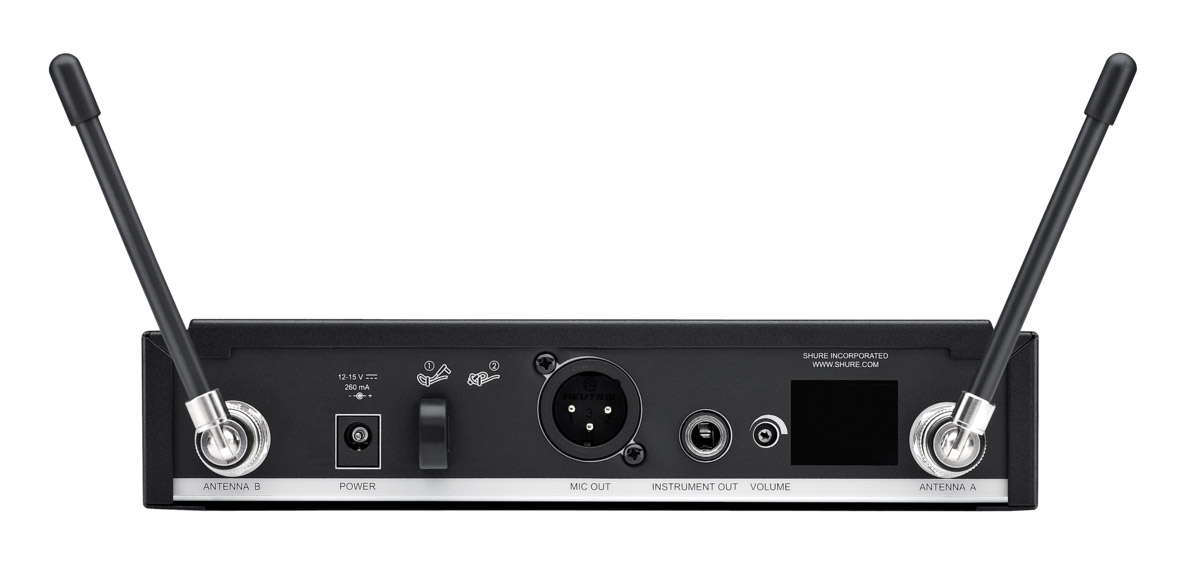

The rear panel has 12-15V, 260mA DC input, 3-pin balanced XLR output, 6.3mm jack output at line level, output volume control – adjustable with screwdriver; and two BNC connectors to connect the removable antenna.

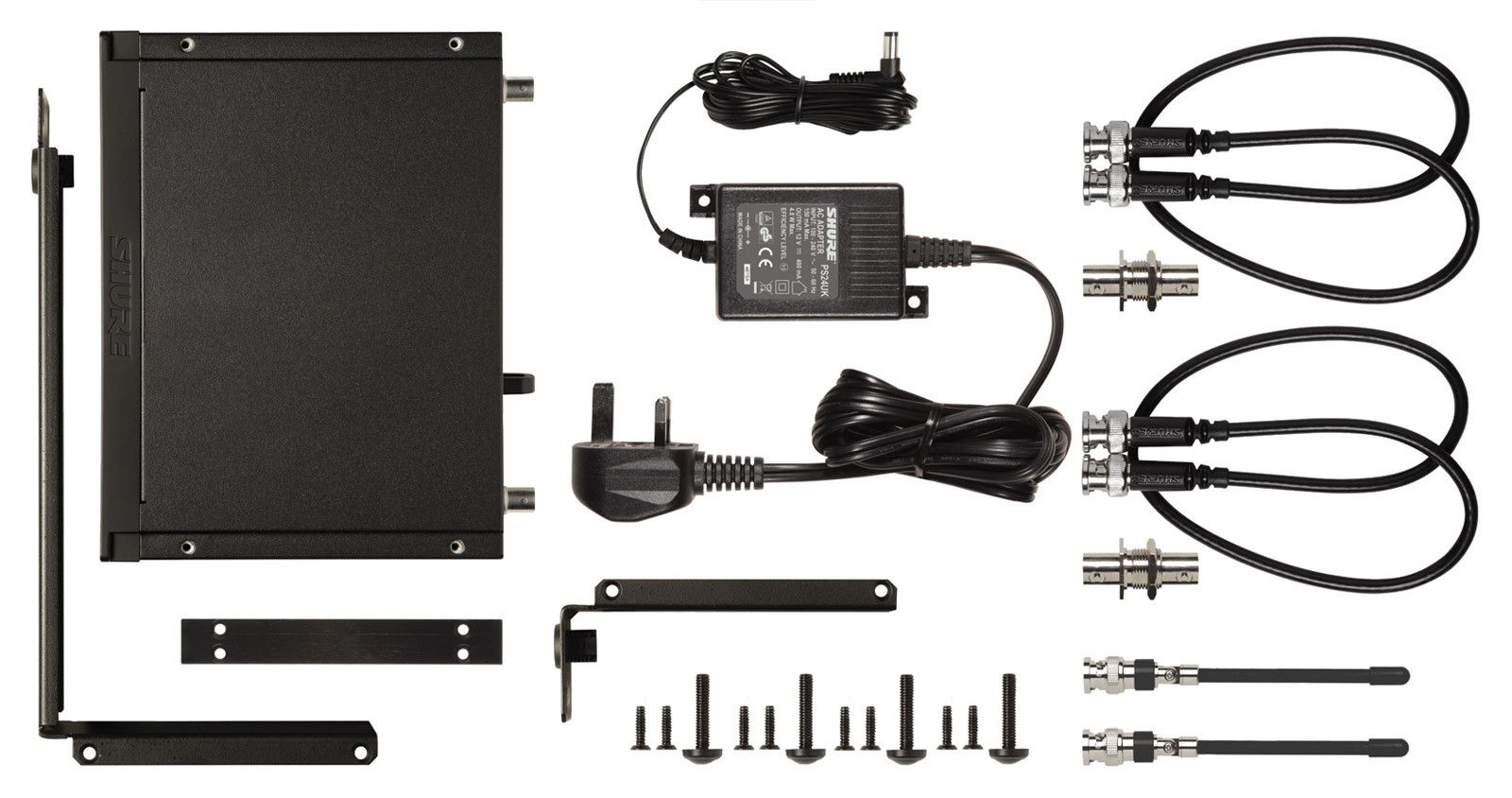

Included accessories: Rack mount bracket, long rackmount bracket, link bracket, hardware kit, swivel adapter, thread adapter, 2x antenna, 2x bulkhead BNC adapters, BNC cable, PS24 power supply.
Image rejection: 50dB, typical. RF sensitivity: -105dBm, for 12dB SINAD, typical. Dimensions (HxWxD): 45 x 198 x 163mm. Weight: 998g

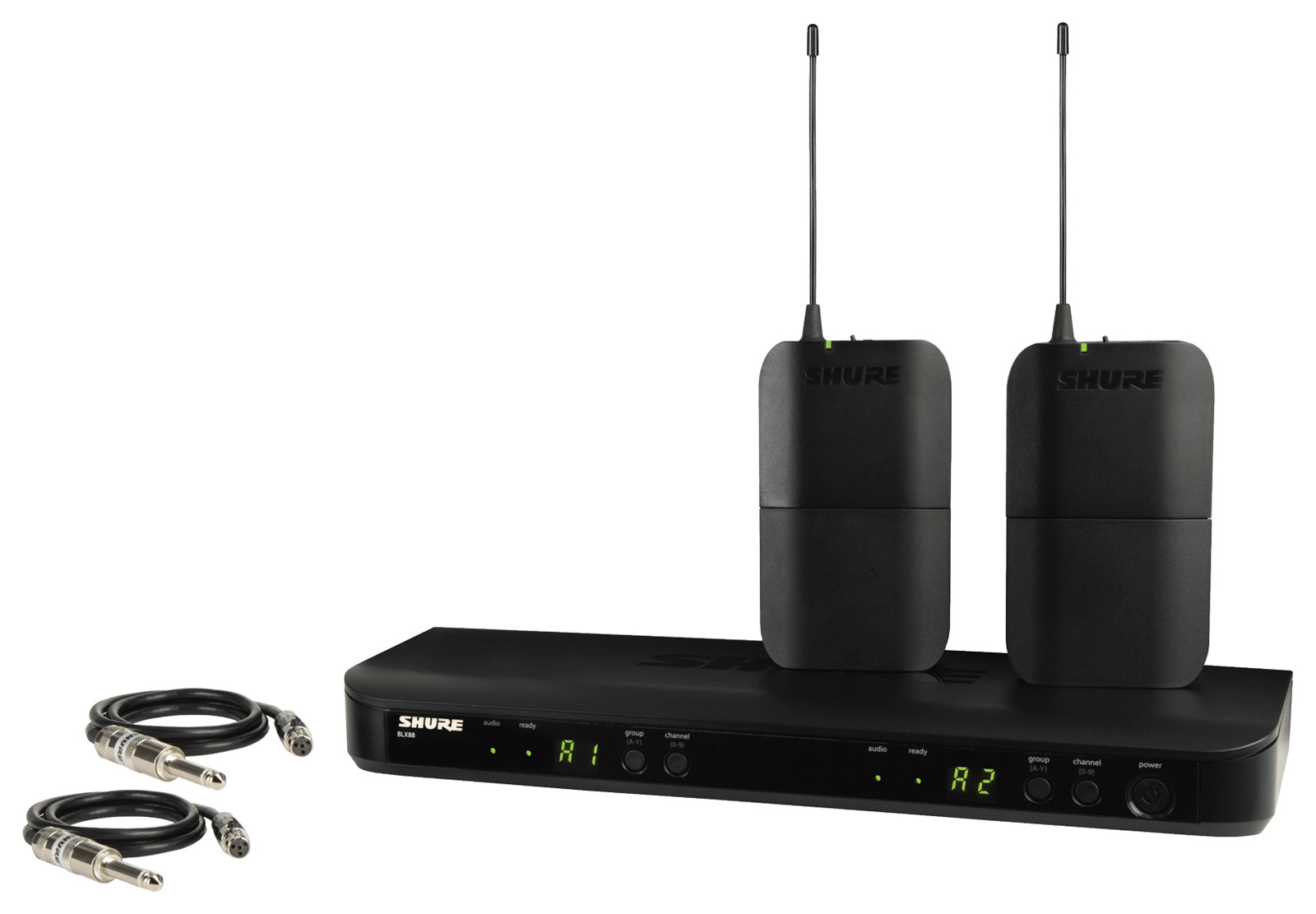

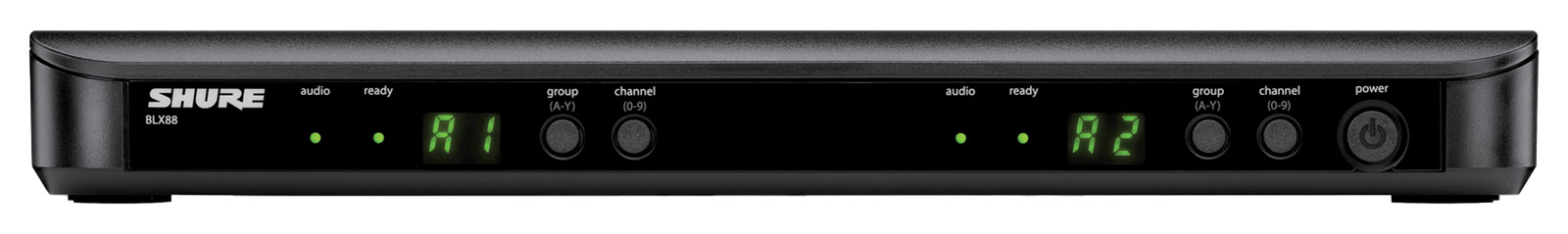

BLX88 Receiver – Dual, fixed

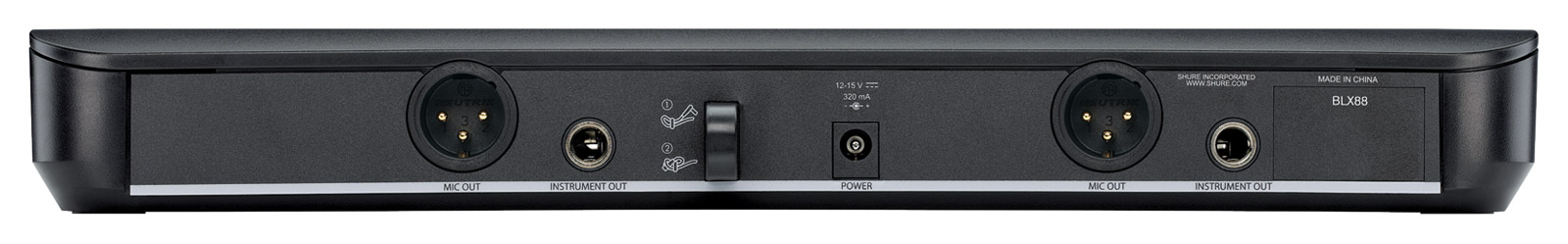

Shure BLX88 is a dual channel wireless receiver that has all the features of the BLX4 duplicated across its two channels. A single power supply input is positioned on the rear facing panel.
Image rejection: 50dB, typical. RF sensitivity: -105dBm, for 12dB SINAD, typical. Dimensions (HxWxD): 40 x 388 x 116mm. Weight: 429g

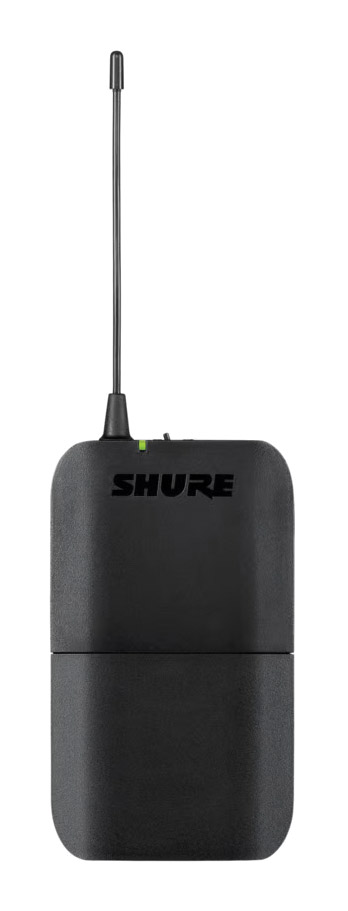

BLX1 Transmitter – Beltpack

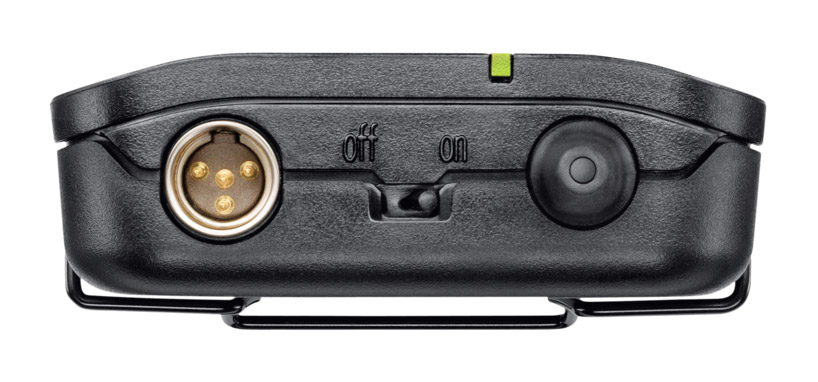

Shure BLX1 beltpack transmitter has all the functionality of the BLX2 handheld transmitter, however it is designed to be used with plugin microphones including SM31FH or SM35 headworn microphones, MX153 mic, or CVL lavalier mic. All function buttons are located within the battery compartment, which also uses two AA alkaline battery cells for operation up to 14hours. The upper edge of the beltpack transmitter has a fixed whip antenna, and 4-pin TA4 microphone input.
Gain adjustment range: 26dB. Input impedance: 1000kOhm. Dimensions (HxWxD): 110 x 64 x 21mm. Weight: 75g

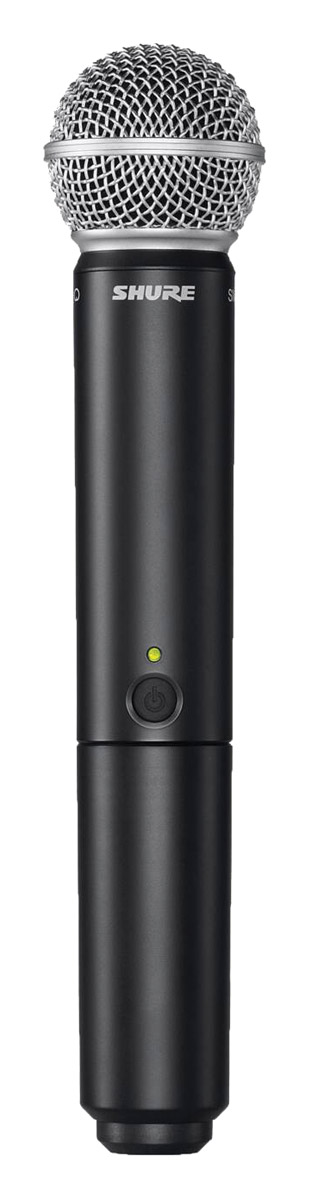

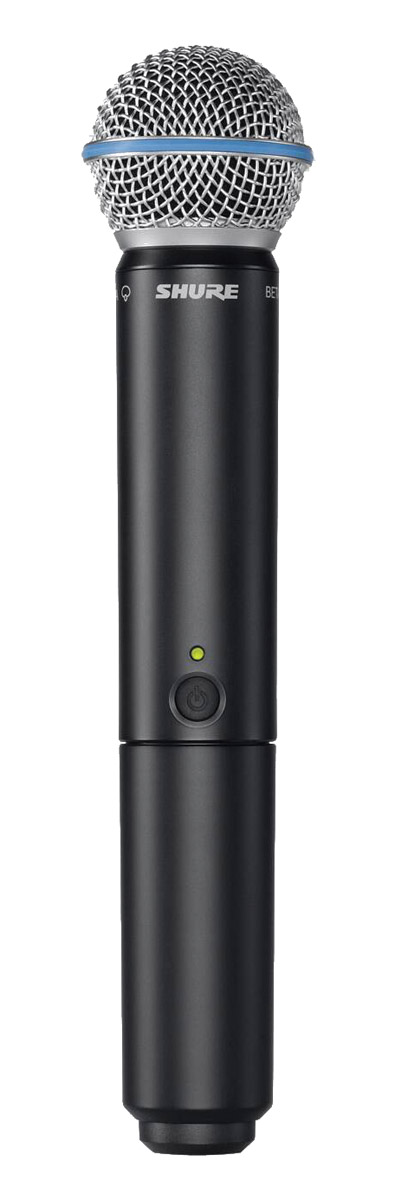

BLX2 Transmitter – Handheld

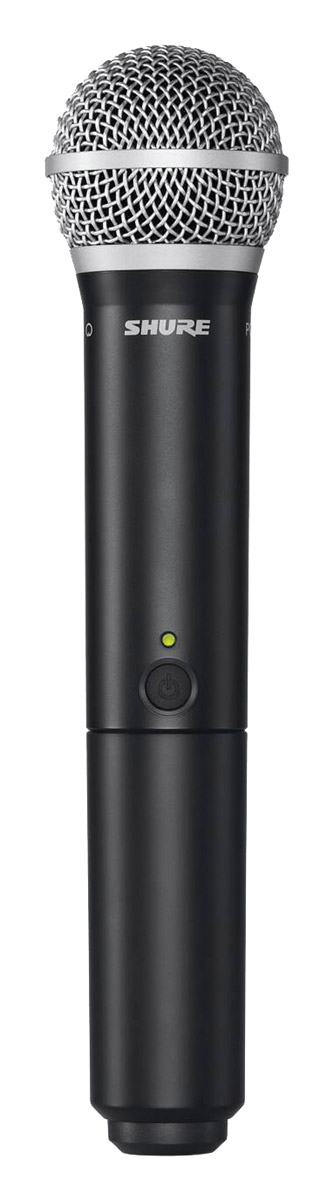

Shure BLX2 handheld transmitter is available with various capsules including SM58, Beta 58A, and PG58. Two AA alkaline battery cells, which are inserted in the battery compartment beneath the microphones screw off lower shaft, provide up to 14hours of continuous use. Also within this compartment are buttons for group and channel selection, and an LED display showing the current channel setting. On the main shaft of the microphone a power button is located beneath a single, multi-coloured LED which illuminates green when ready for use, flashing red when controls are locked, solid red when battery power is less than one hour, and flashing red before shutdown when the batteries required changing.
Dimensions (HxWxD): 224 x 53 x 53mm. Weight: 340g

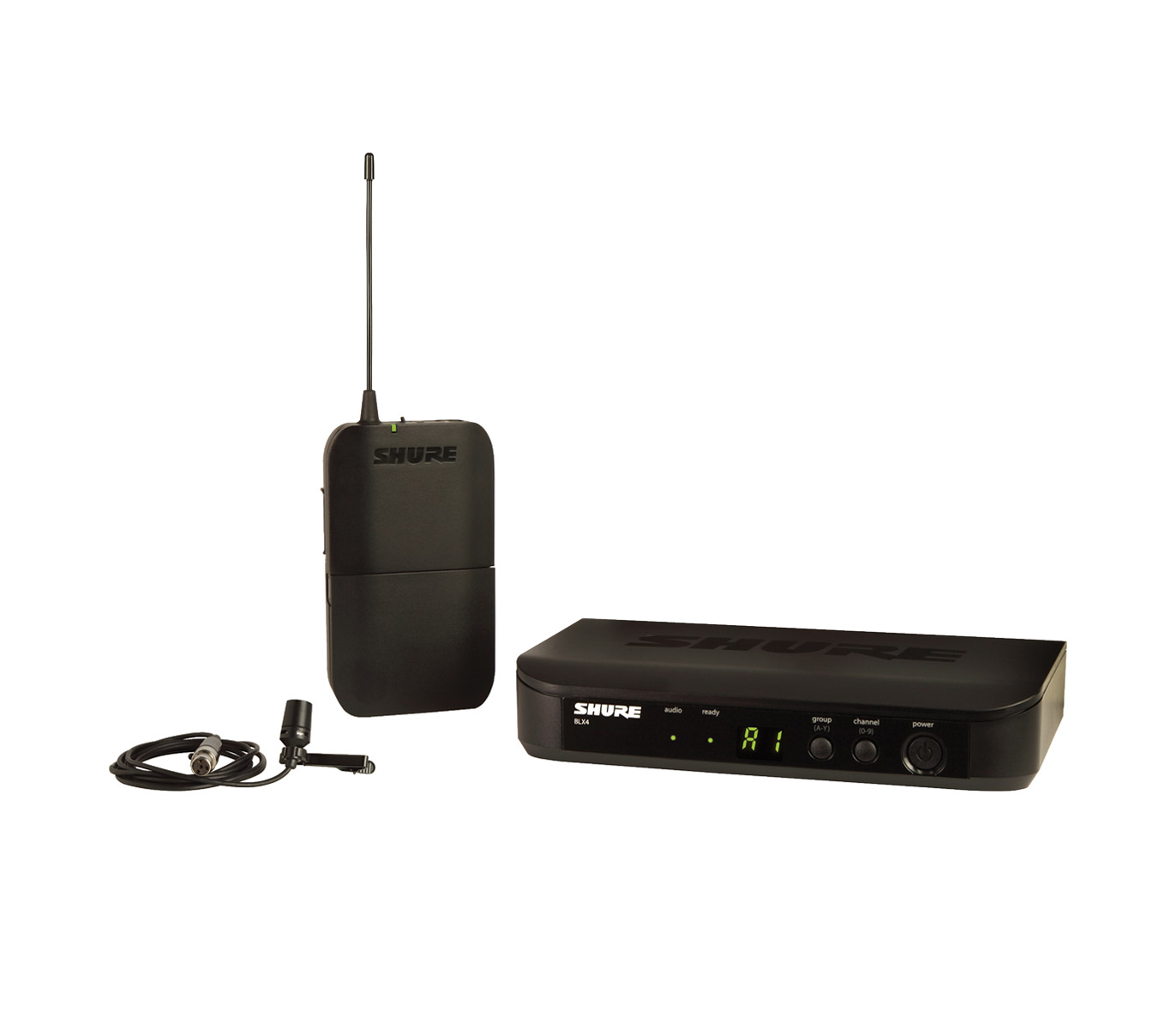

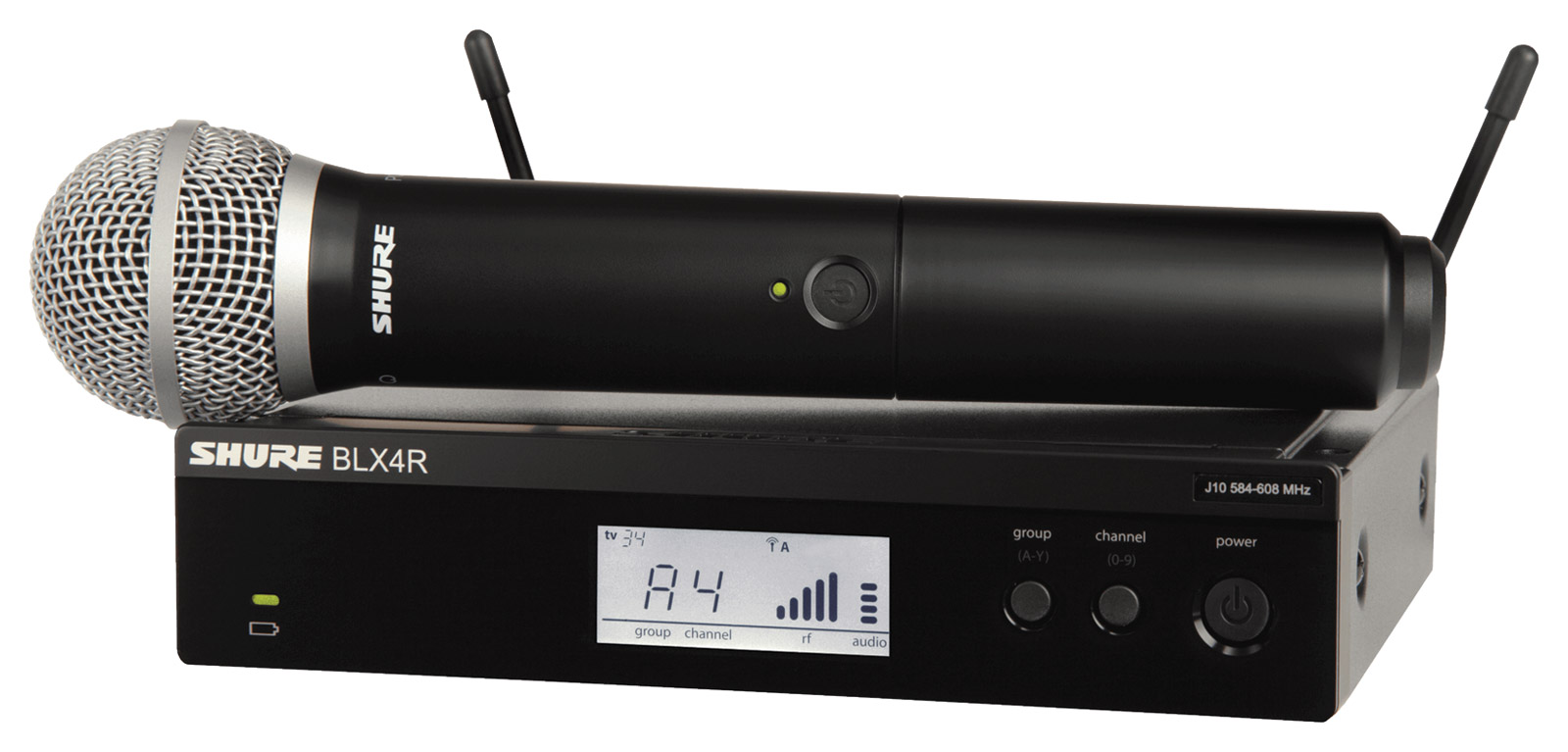

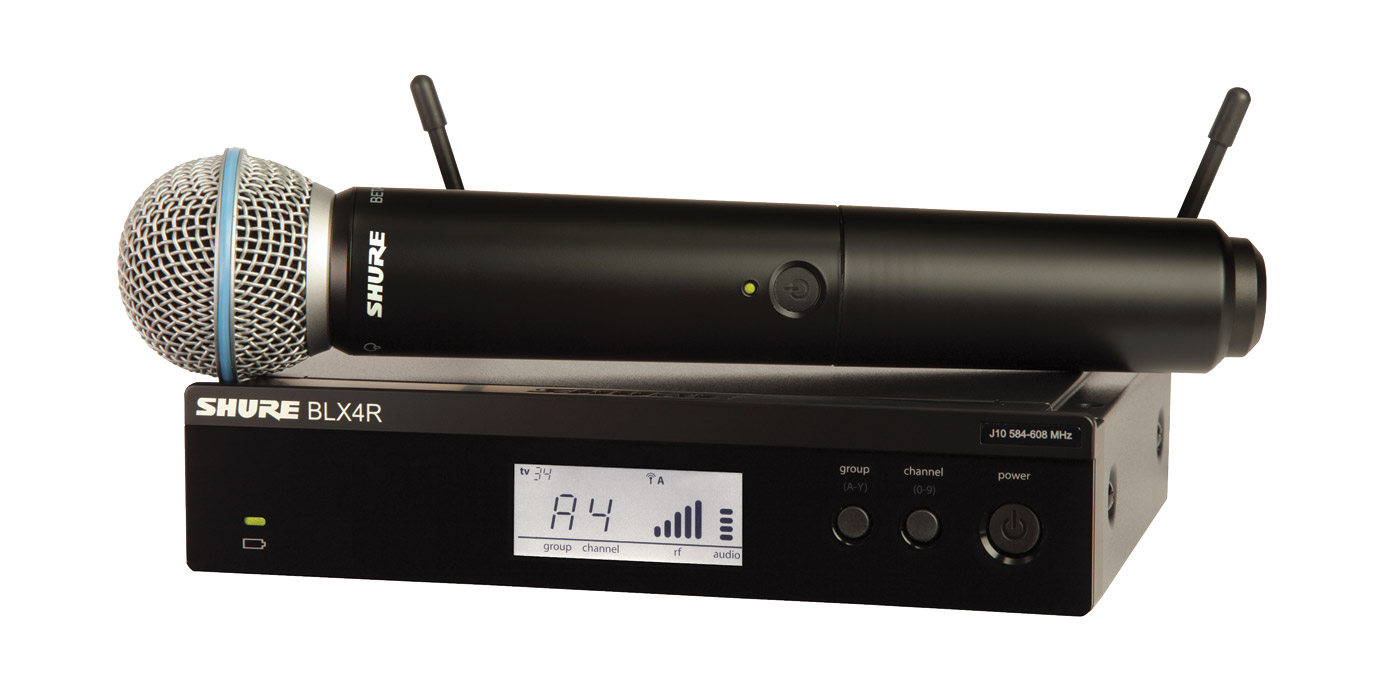

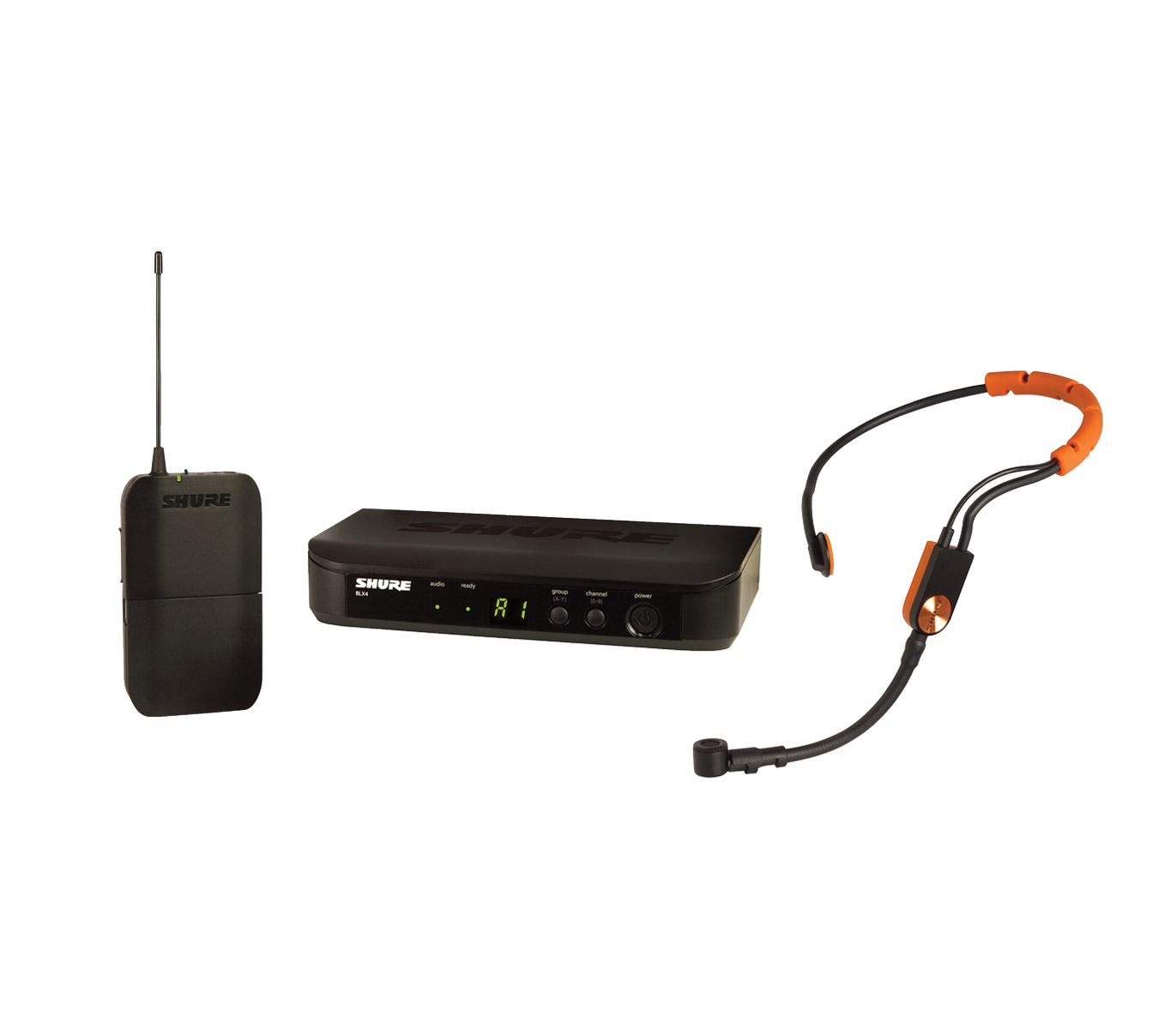

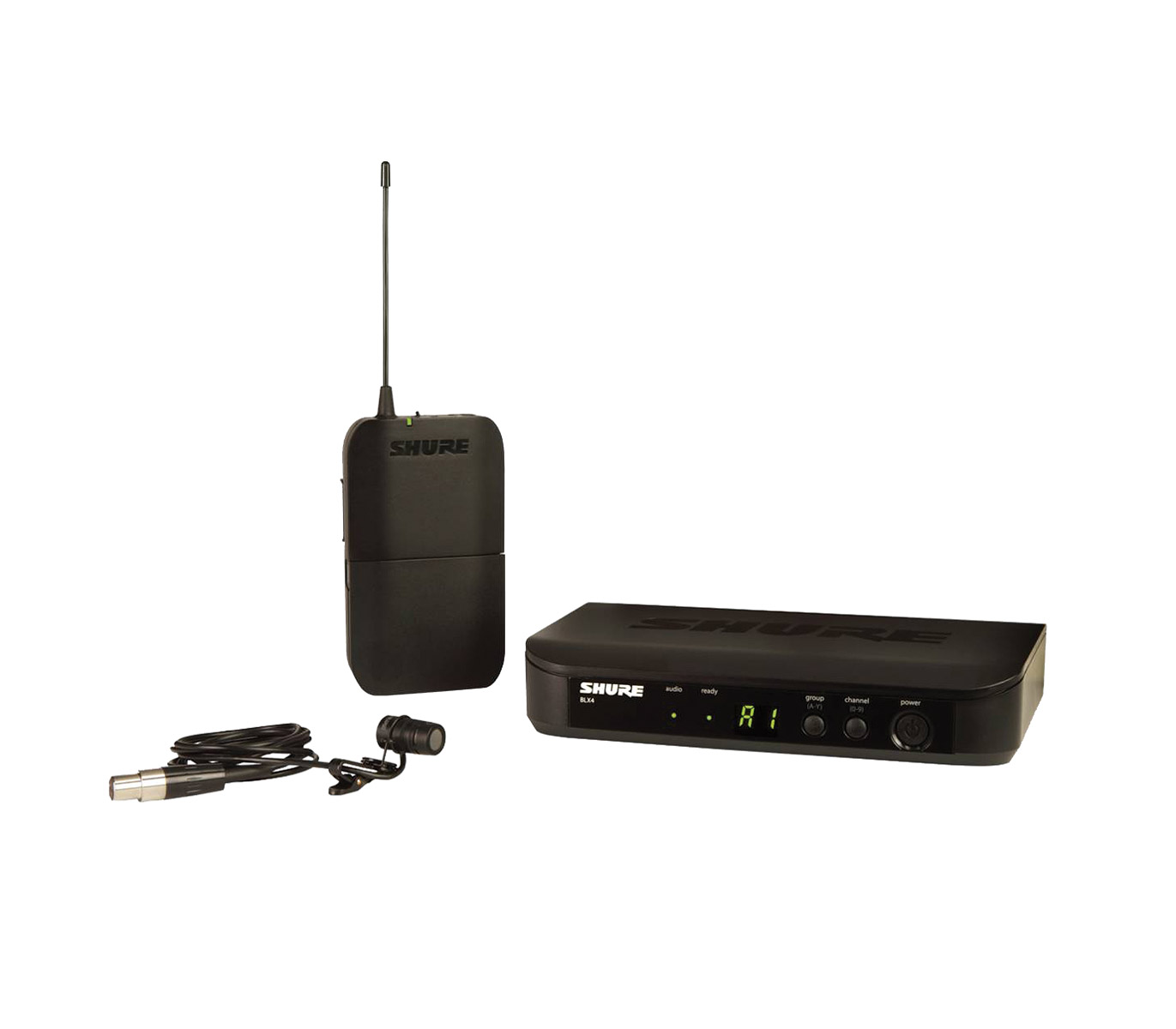

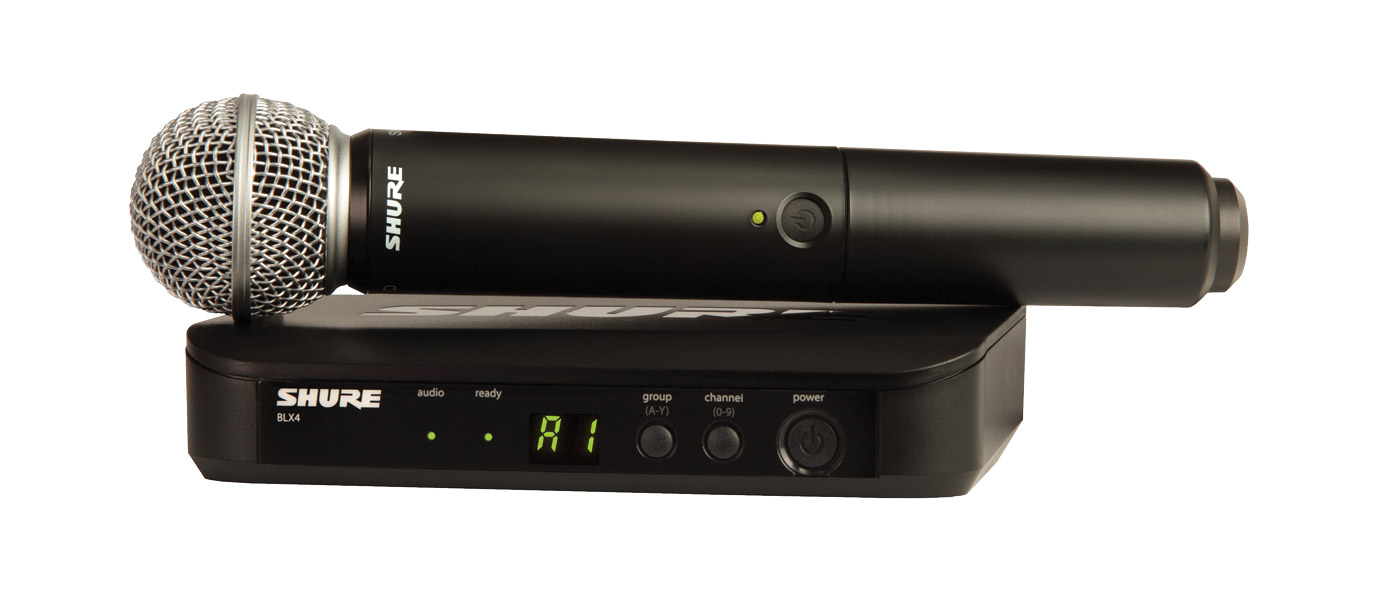

BLX Wireless Systems - Single
This table shows the component parts included in the previously available complete systems.

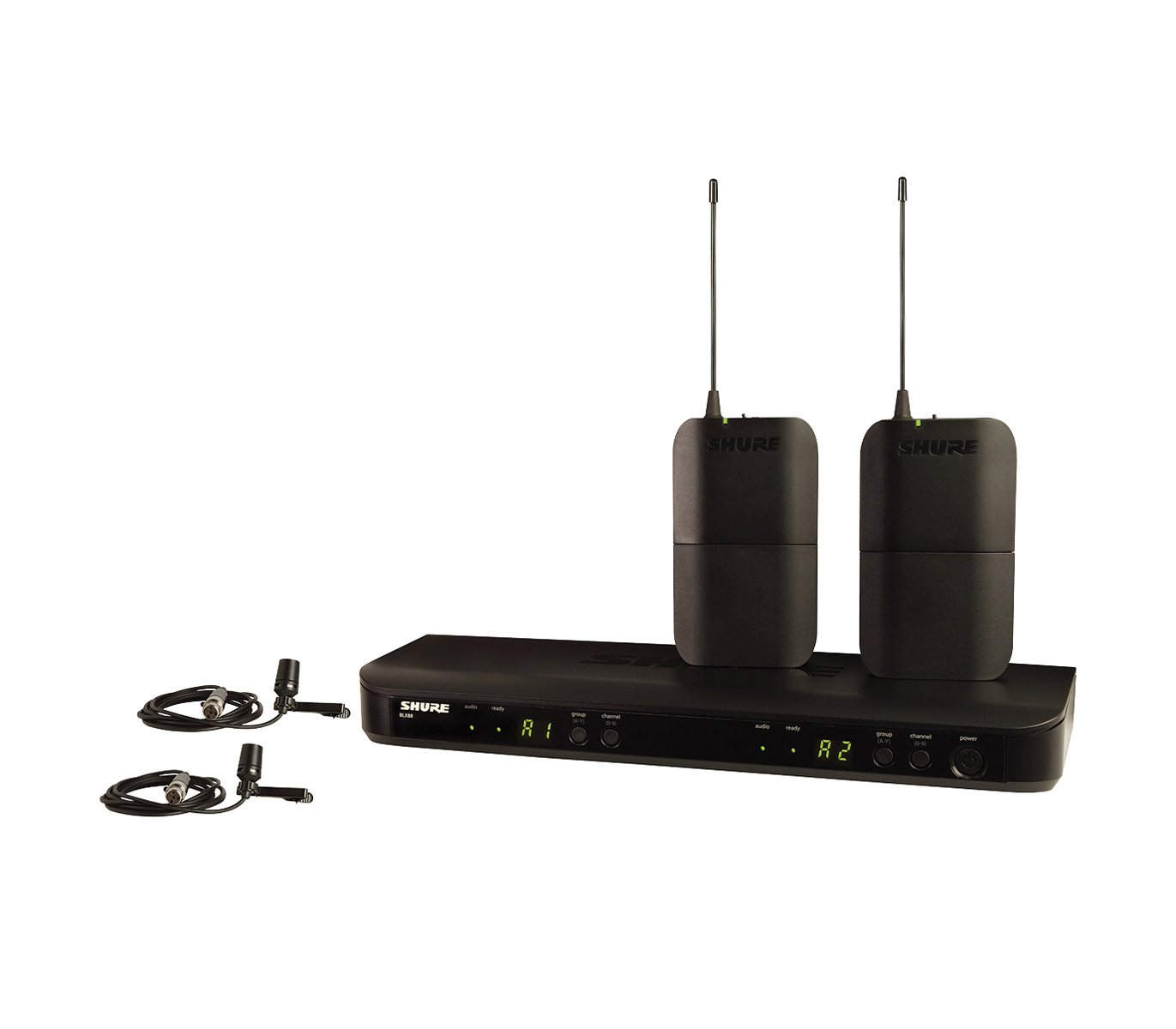

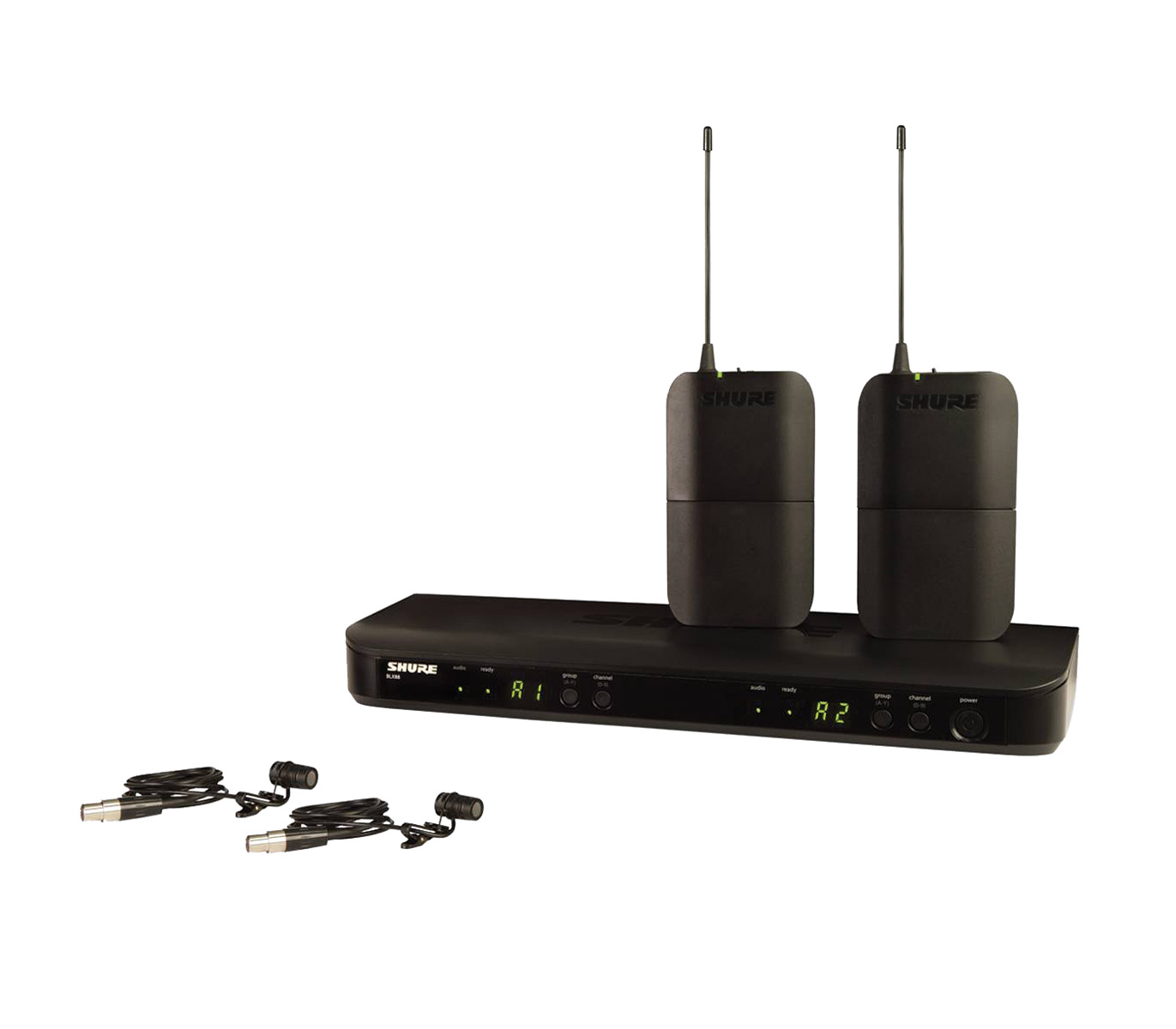

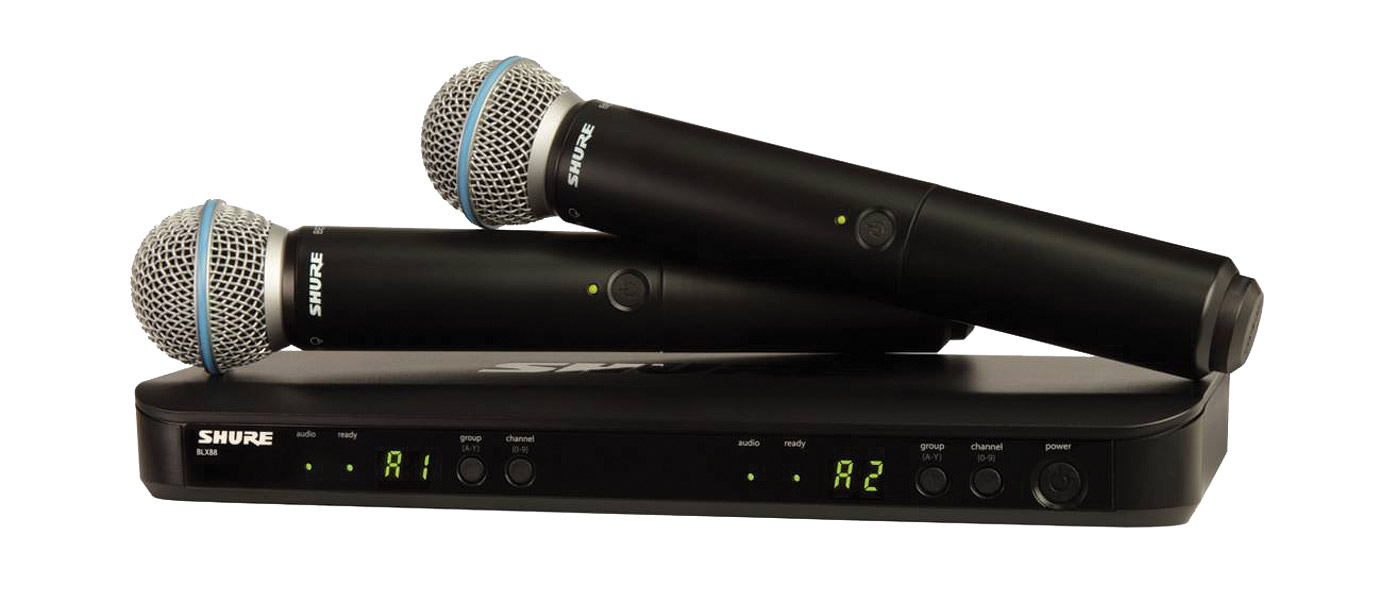

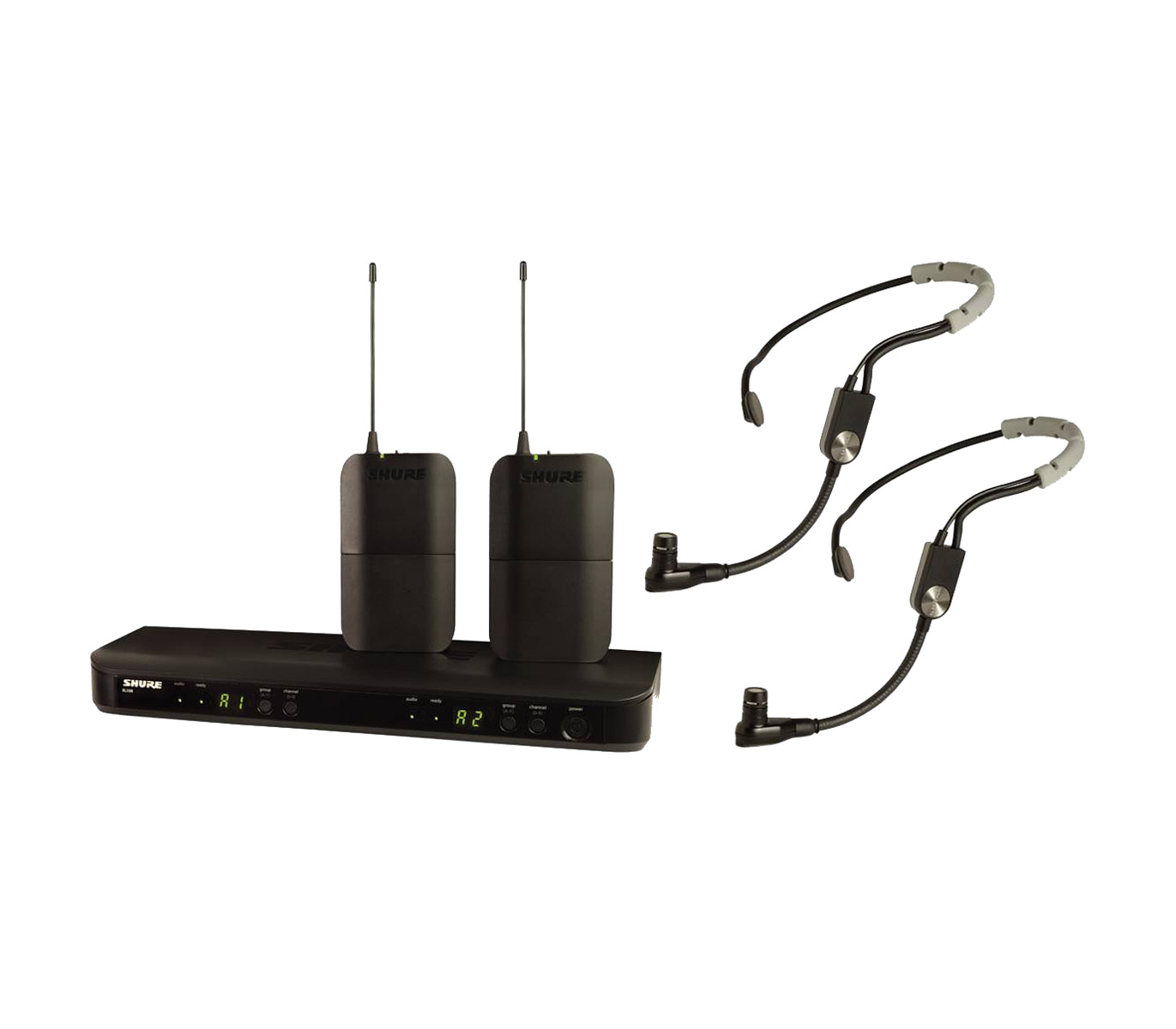

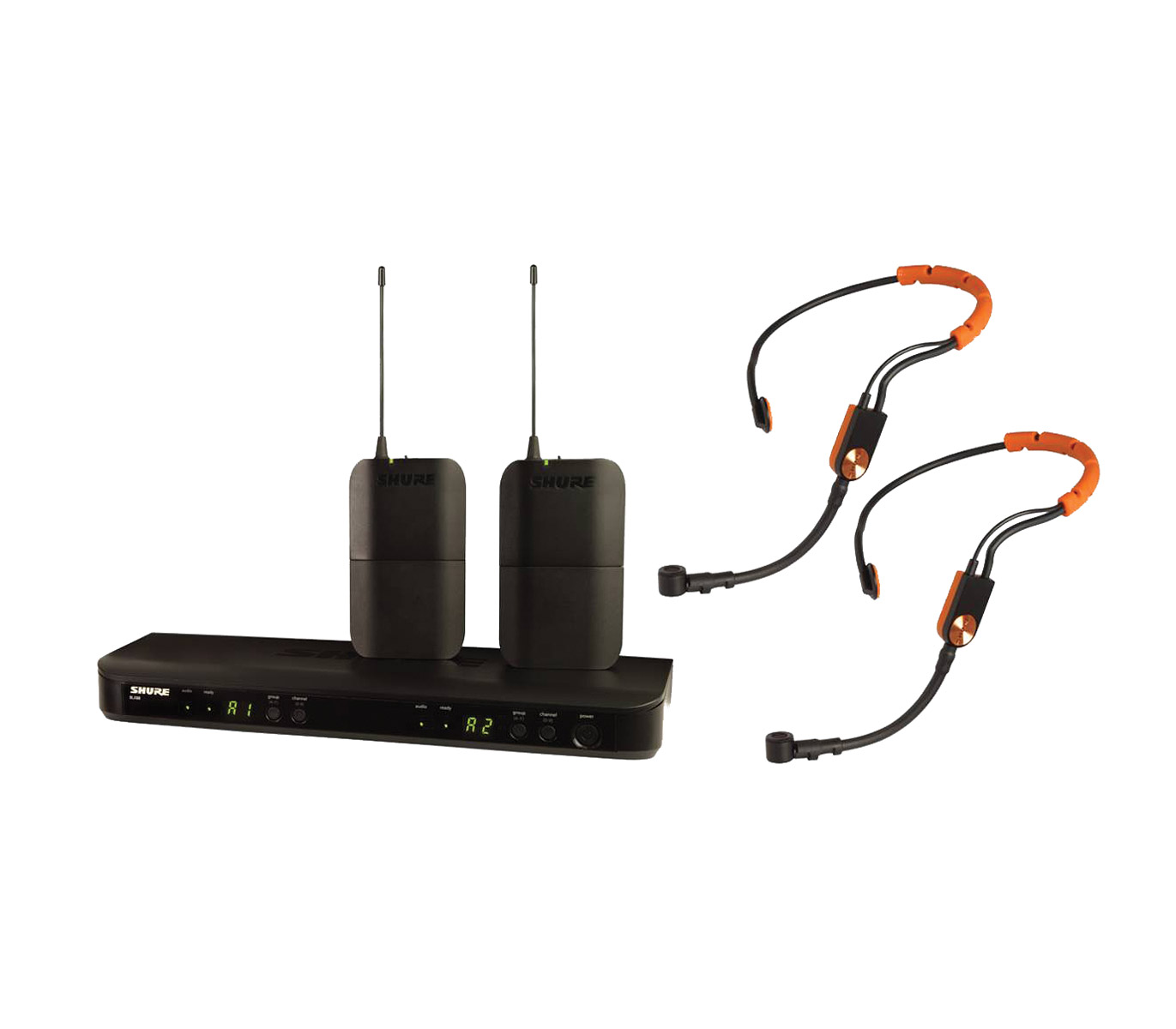

BLX Wireless Systems - Dual
This table shows the component parts included in the previously available complete systems.

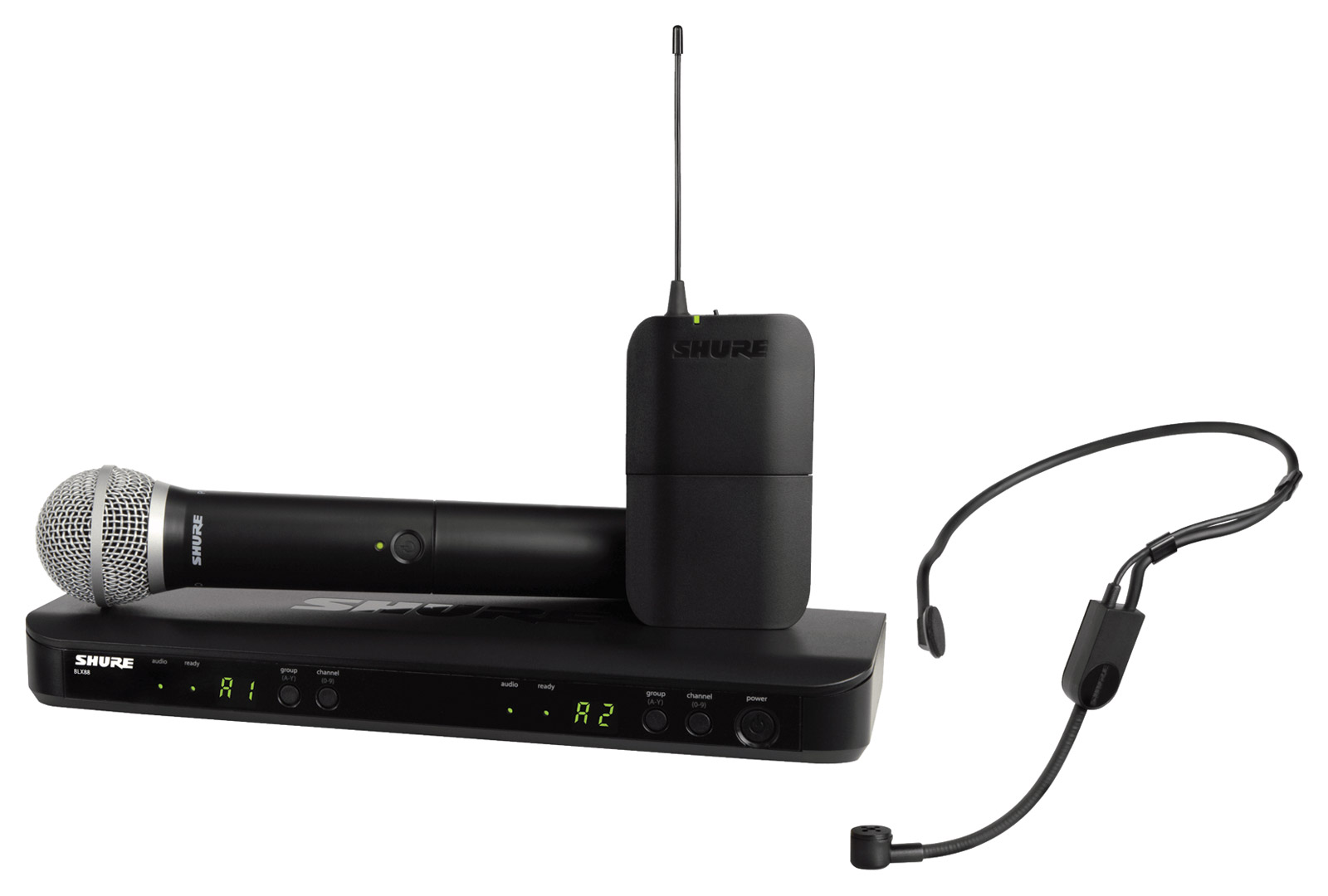

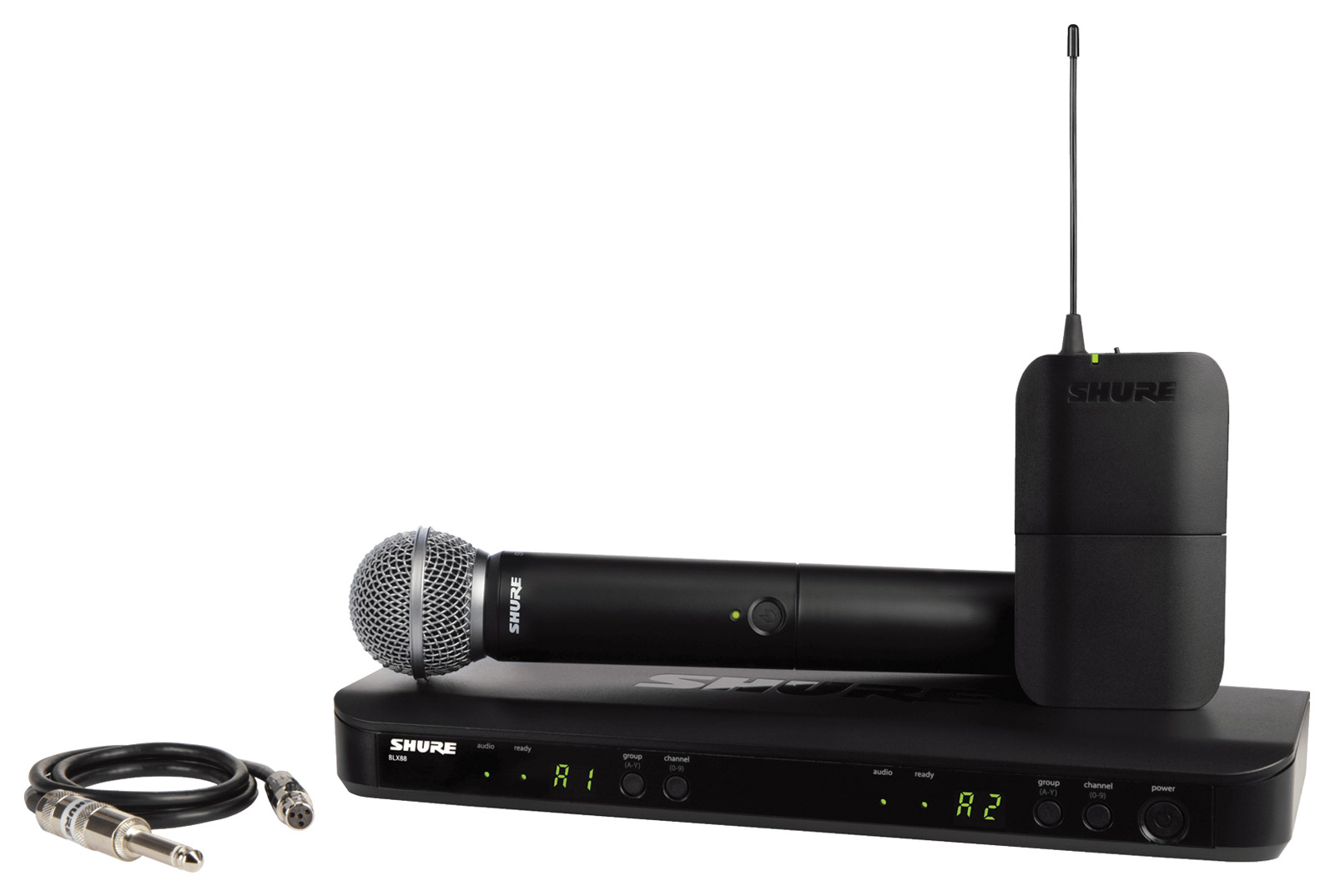

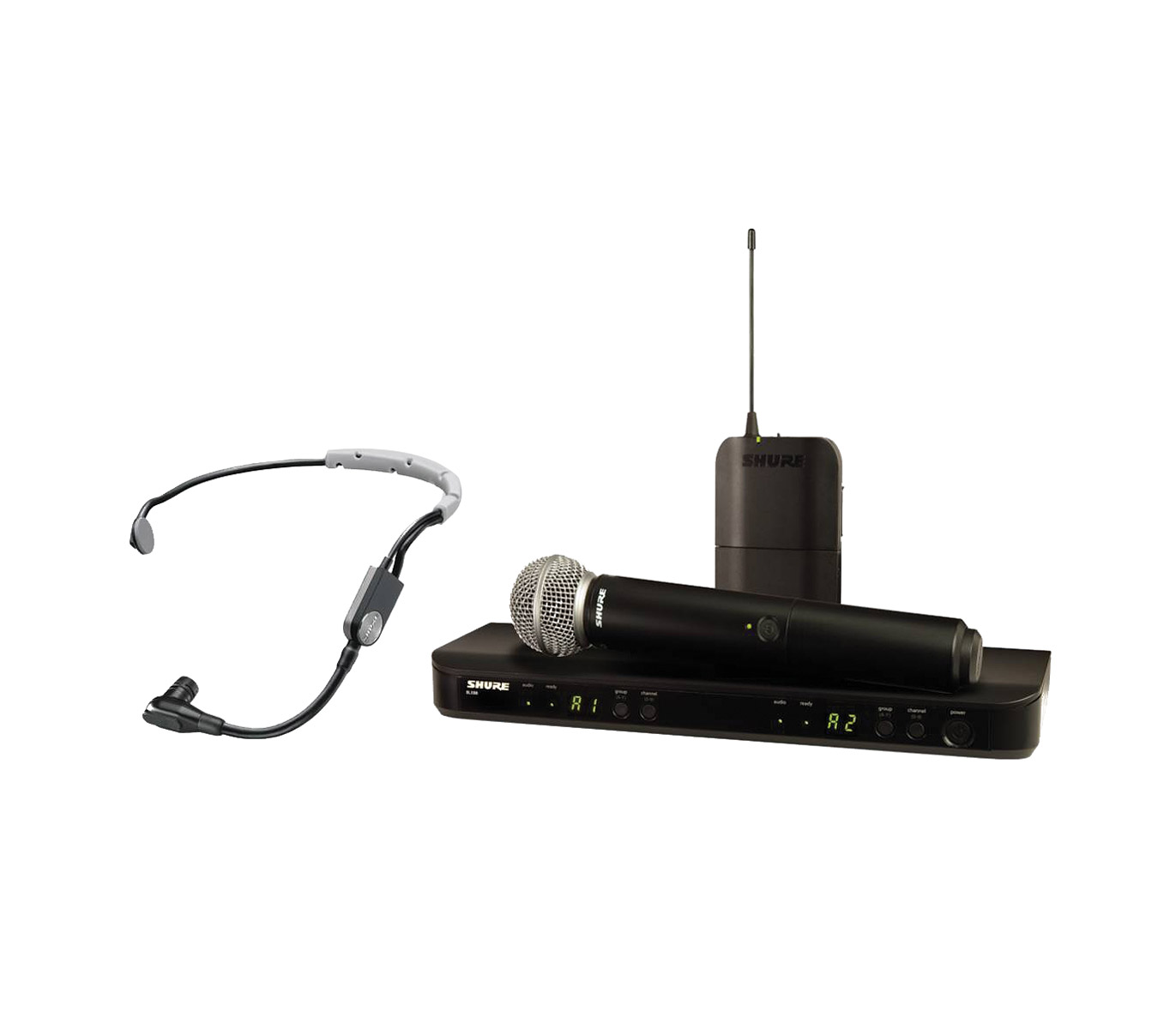

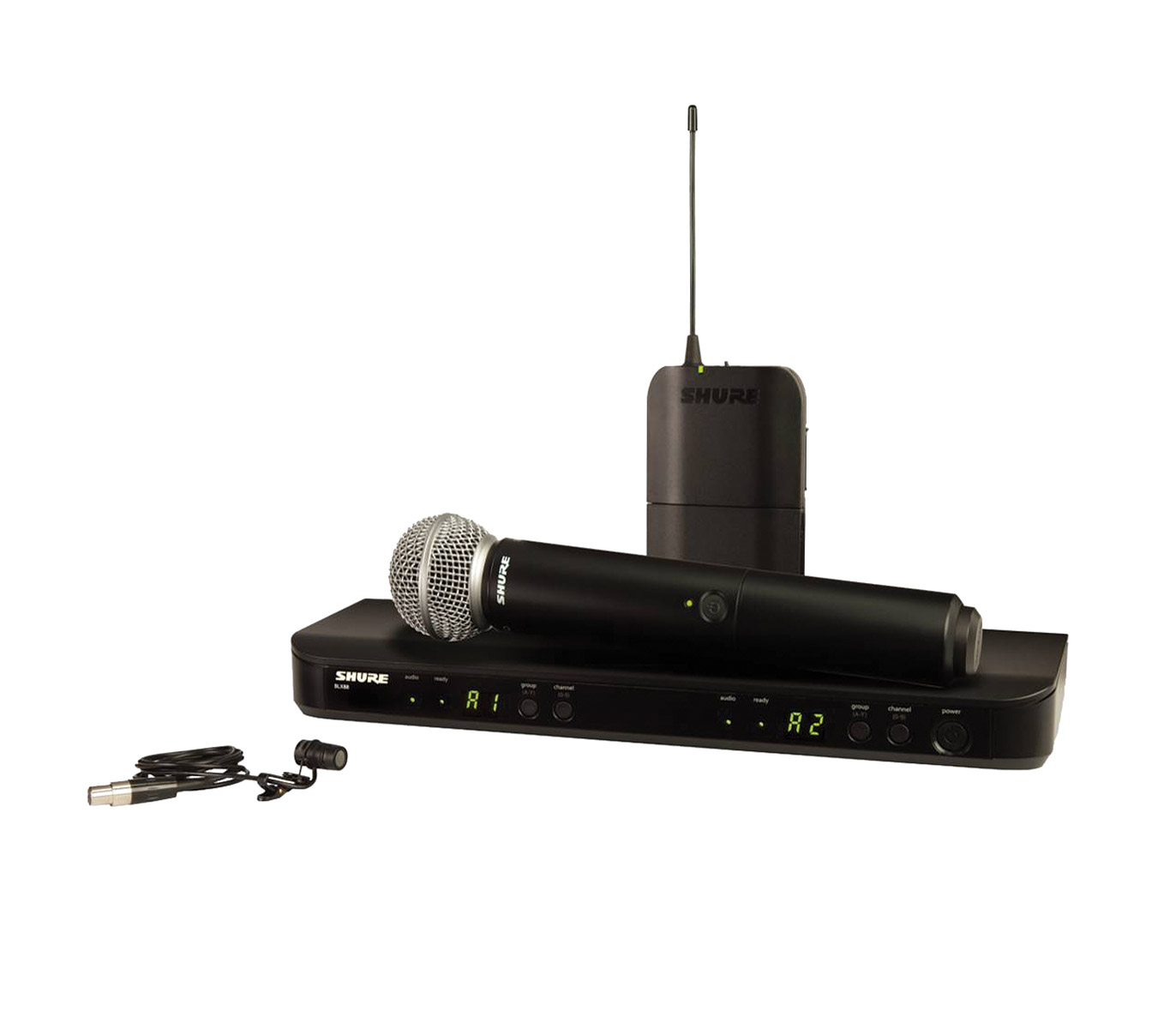

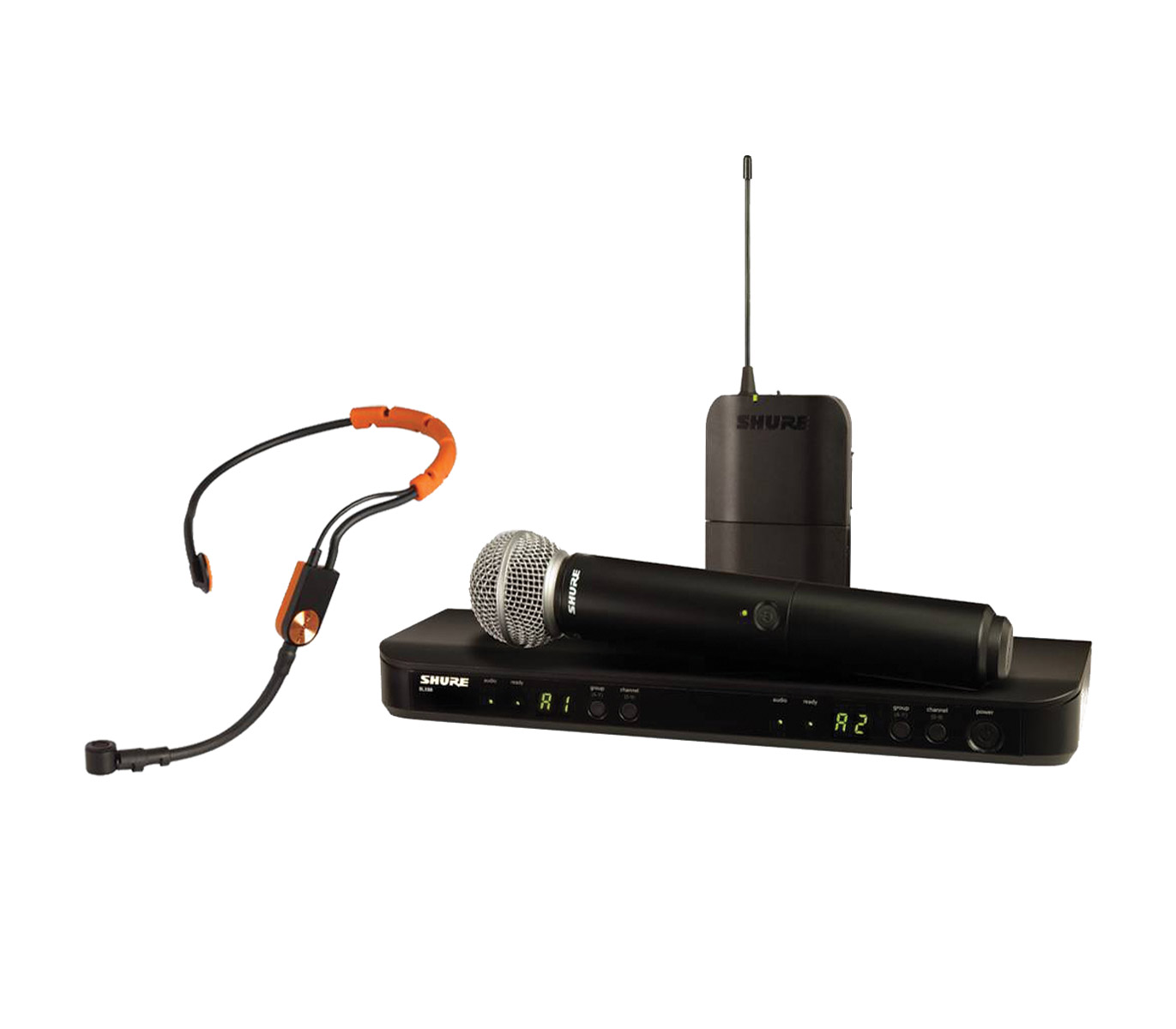

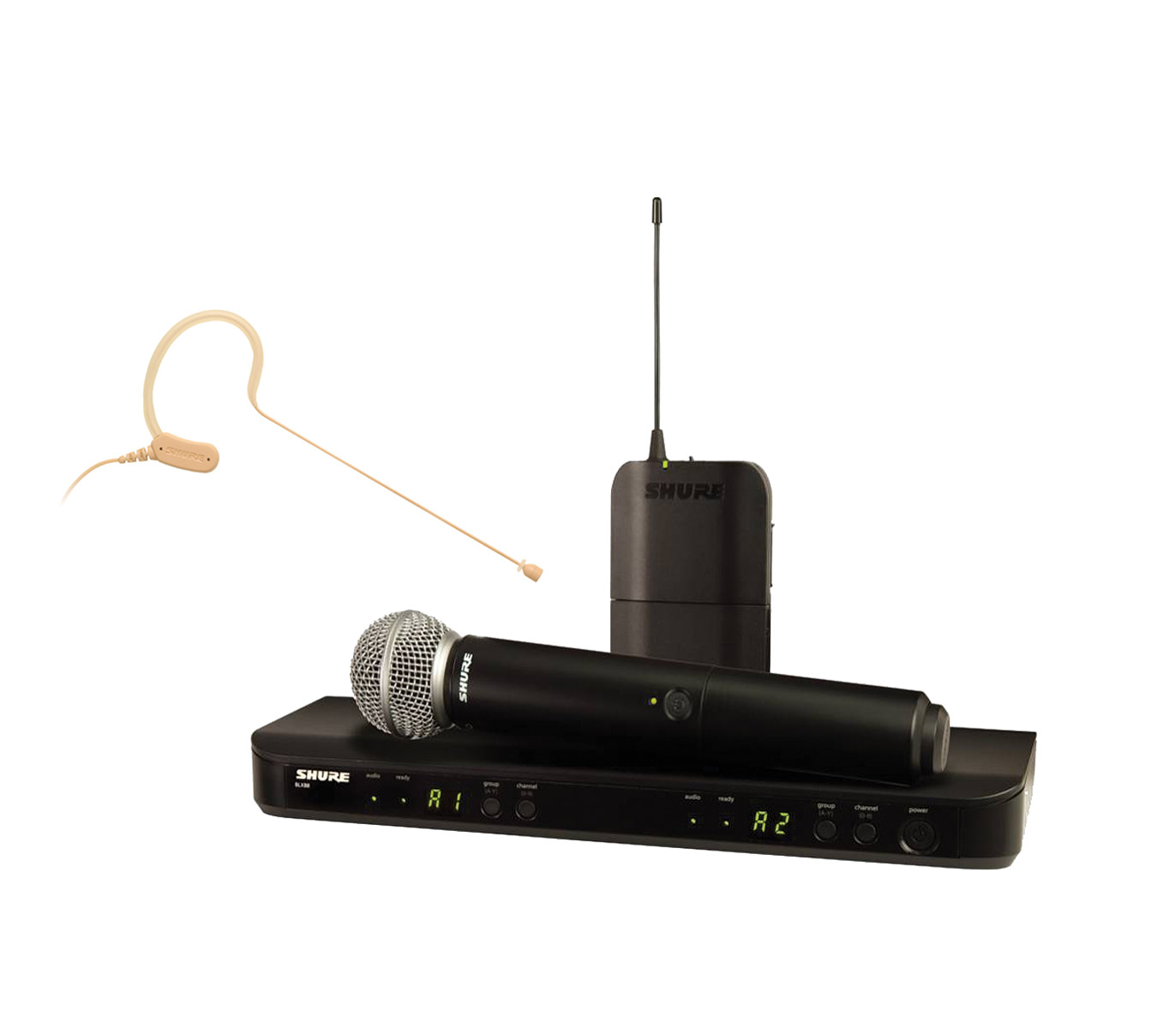

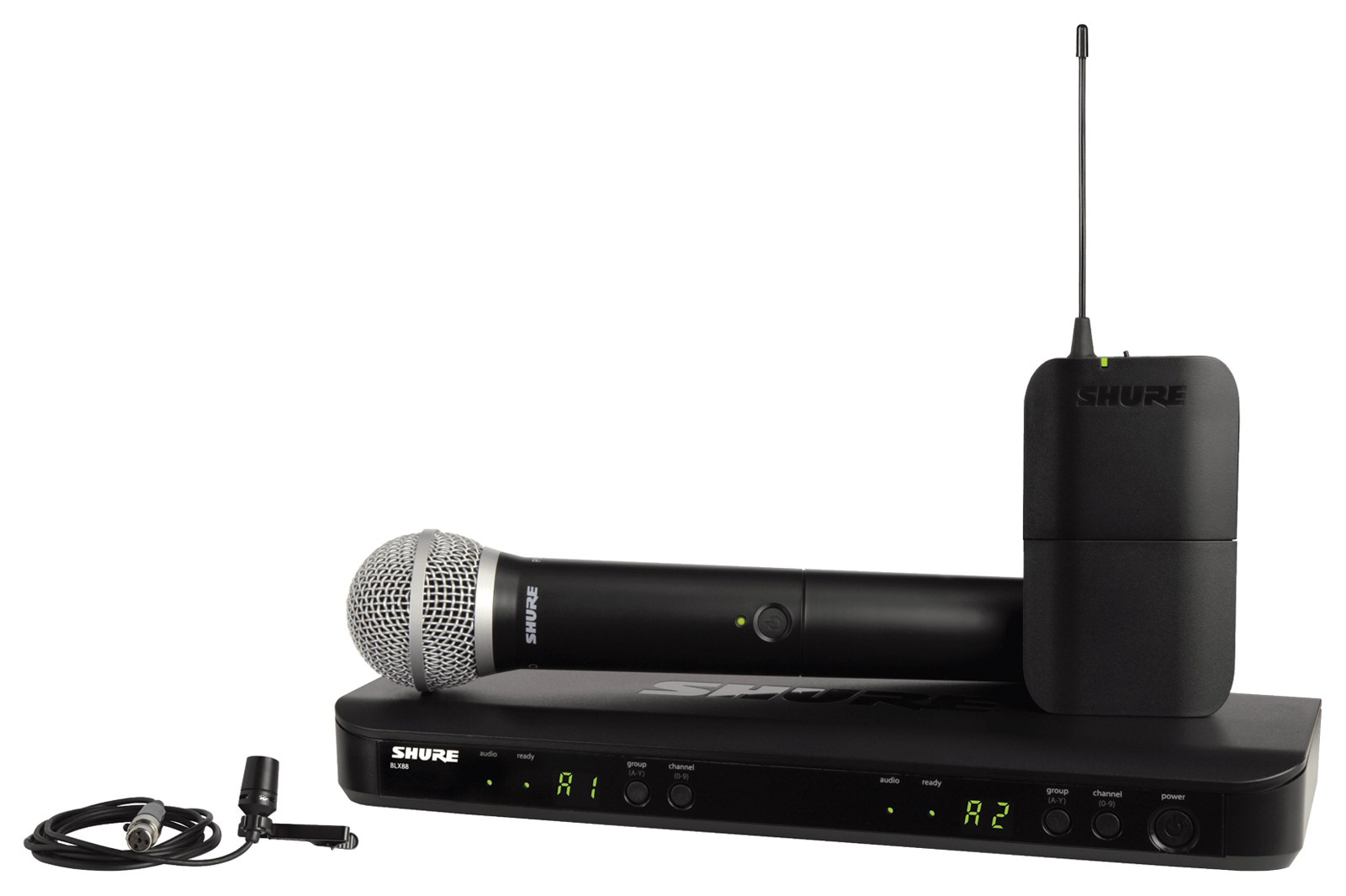

BLX Wireless Systems - Combination
This table shows the component parts included in the previously available complete systems.
Accessories

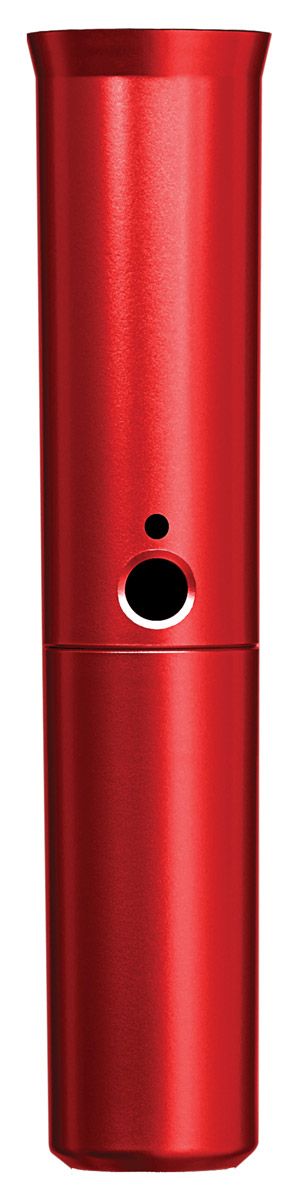

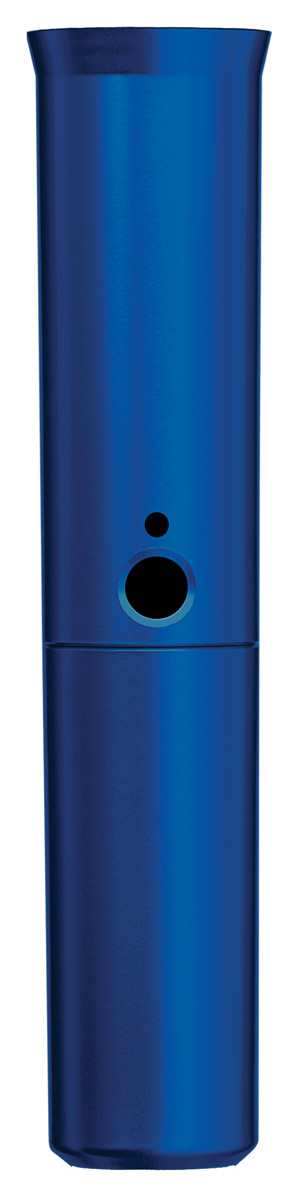

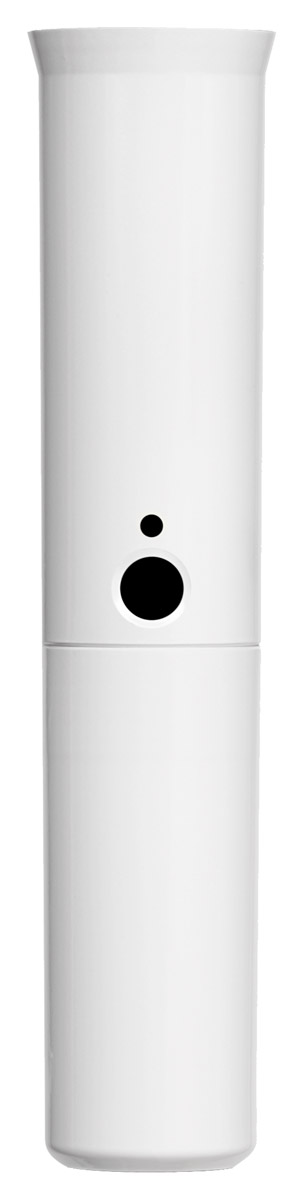

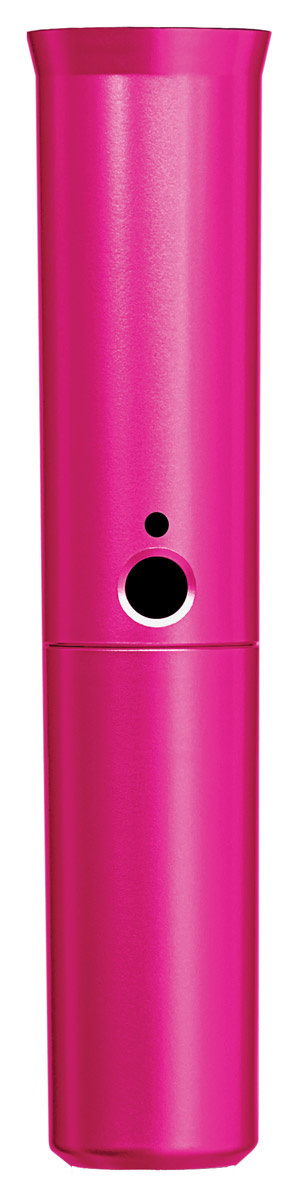

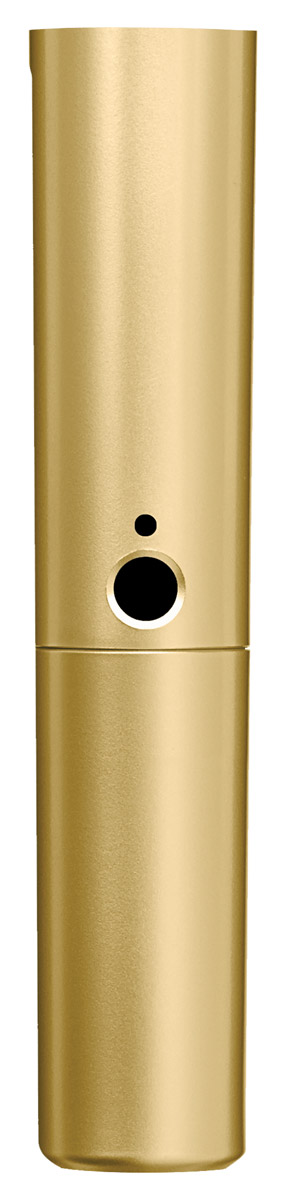

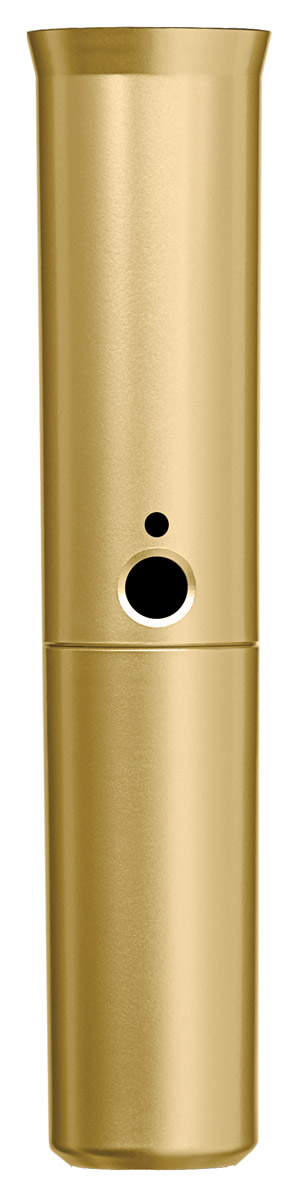

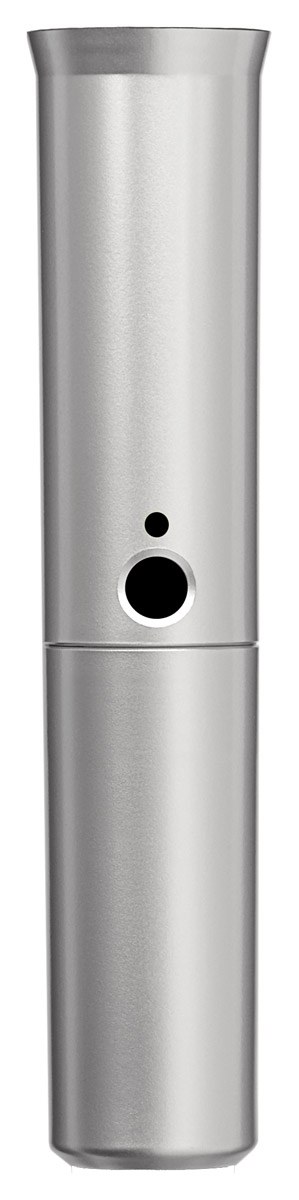

Available in blue, pink, red, white, gold, or silver finish, this coloured handle aid identification along with offering alternate cosmetics. WA712 is compatible with BLX2/PG58 handheld transmitters and has a 'simple installation and removal process'.

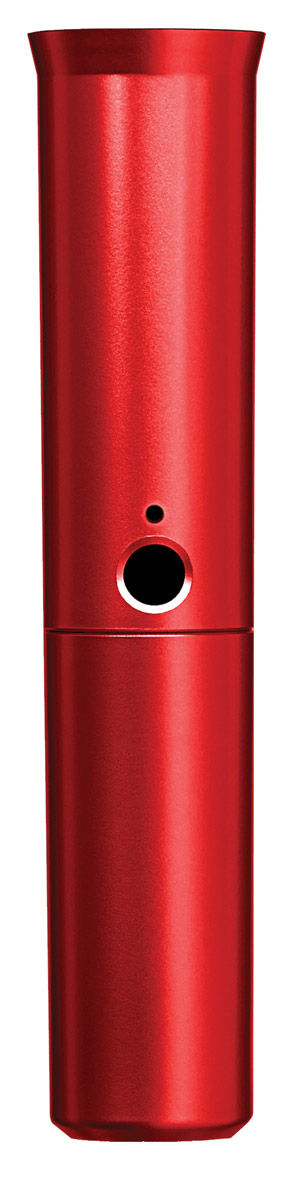

Like WA712, WA713 is available in blue, pink, red, white, gold, or silver finish. The coloured handle is compatible with BLX2/SM58 or BLX2/B58 handheld transmitters and has a 'simple installation and removal process'.

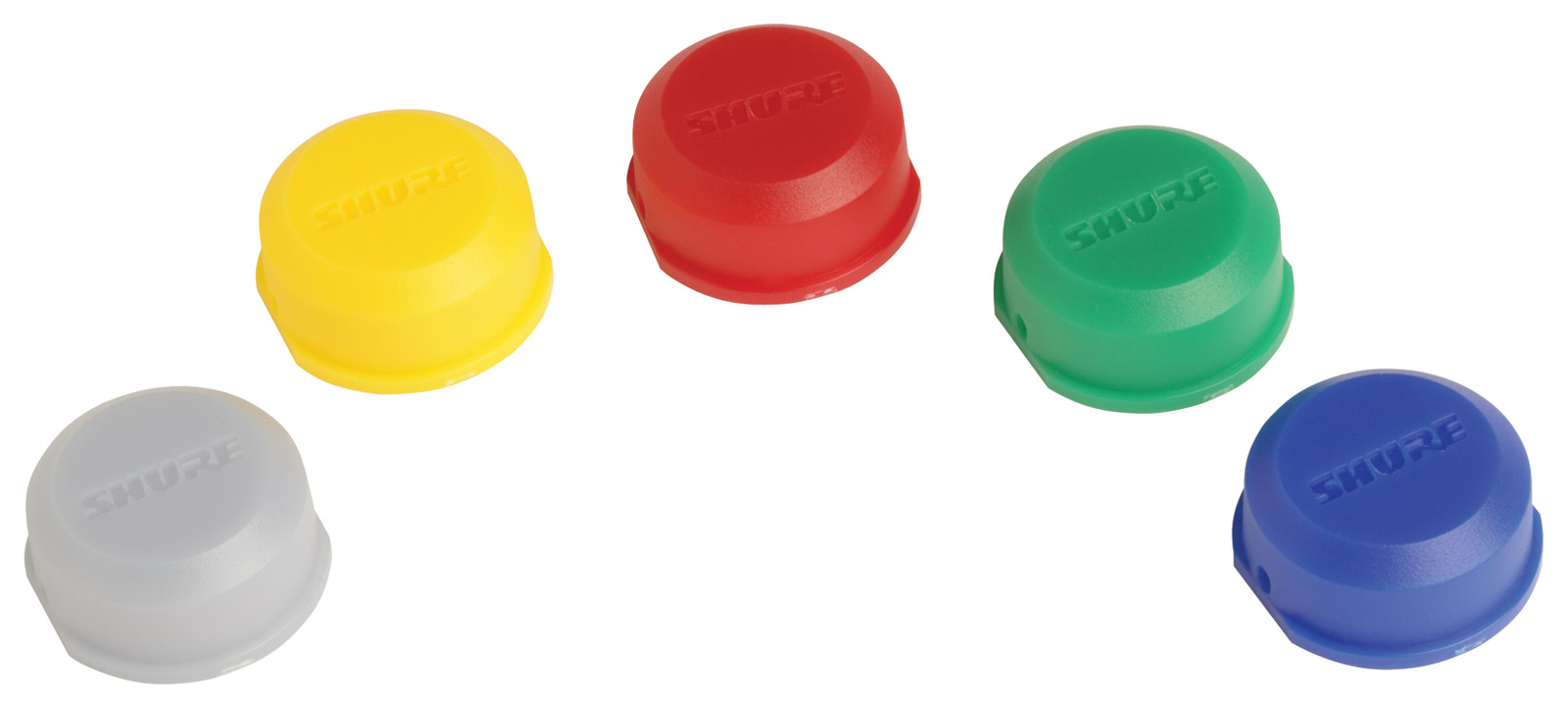

A pack of 5 colour ID caps to fit the antenna of BLX2 handheld transmitter and aid identification. The pack of snap on caps contains 1x blue, 1x green, 1x yellow, 1x white, and 1x red caps.`
