Dieses Sortiment aus Simulationskabeln mit festen Längen erlaubt es, den Effekt eines Kabels auf die serielle Ausgabe von Digitalsignalen ohne Kompromisse bei der Genauigkeit zu simulieren. Jedes Modell emuliert eine bestimmte Länge eines Belden 1694A Kabels in einer Trommelanordnung mit je einem 75 Ohm Steckverbinder pro Ende. So lässt sich eine präzise Aussage zu den Verlusten im praktischen Einsatz treffen.

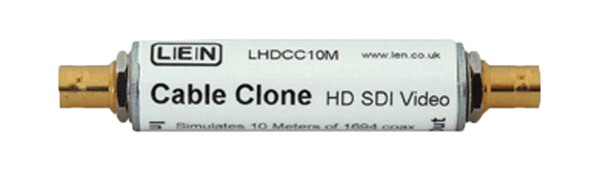

This range of fixed-length cable clones provides a method of simulating the effect of cable on serial digital signals without compromising accuracy. Each unit emulates a specific length of Belden 1694A cable in a barrel assembly with a female BNC 75 ohm connector on each end, providing known accurate loss for repeatable performance.
It is important to know that all parts of an SDI system are operating well below the critical point at which the receiving equipment can no longer detect the incoming signal reliably, due to the filtering effect of the cable. One way to do this is simply to add a length of cable and check that the signal is unaffected. Pocket sized, these clones can be used as a more convenient substitute for actual cable when installing or testing serial digital equipment, ensuring sufficient margin (head-room) is maintained. The clones can be cascaded to simulate greater lengths of cable.

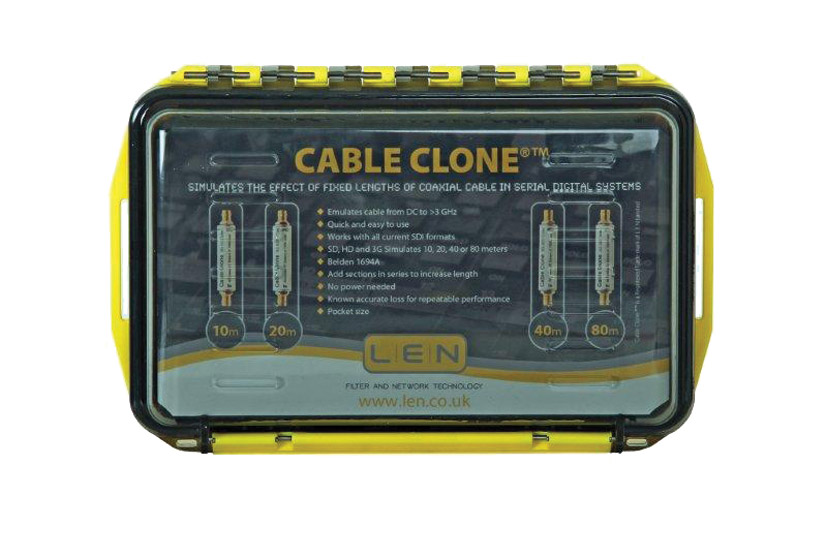

Two ranges are available, the first suitable for HD and SD SDI signals, the second works with all current SDI formats, SD, HD and 3G SDI. Both ranges offer models equivalent to 10, 20, 40 or 80 metres of Belden 1694A cable.
Dimensions: 72 x 20(length x diameter)mm, excluding connectors.
