CANFORD SDV-F-R - HDTV DIGITAL VIDEO CABLE Flexible, ruggedised

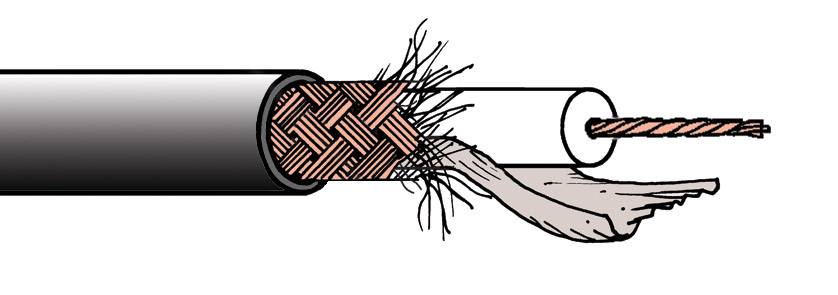

CANFORD SDV-F-R CABLE Black
CANFORD SDV-F-R CABLE Black

This has the same construction as standard SDV-F, but with a polyurethane jacket that's incredibly tough and resilient, and which remains flexible in sub-zero arctic conditions. It's particularly suitable for location, film and outside broadcast applications, offering a flexible, low-loss, coaxial, 75 ohm cable for HDTV, serial digital and analogue video signals.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Y (Coax Connectors, size code “FC1” MUST be used, “FC” is not suitable, Canare, Canford Connect BNC and F Connector Y group exceptions)
Inner conductor: 19/0.2mm (0.60 mm sq.) plain copper
Dielectric: Gas injected foam high density polyethylene, 4.8mm OD
Screen 1: Aluminium/polyester tape, coverage 100%
Screen 2: Tinned copper braid, optical coverage 45%
Construction: Coaxial cable
Jacket: Polyurethane, semi-matt finish, black
Overall diameter: 6.8mm
Minimum bend radius: 35mm
Impedance: 75 ohms
Capacitance: 54pf/m nominal
Return loss: 18dB 47-450MHz
Attenuation: MHz 1 5 25 51 200 270 300 450 900 1000 1800
dB/100m 1.00 1.90 4.50 6.10 11.50 13.40 14.10 17.50 26.30 29.30 40.20
Velocity of propagation: 80%
Temperature range: -40 to +80 degrees C
Weight: 4.3kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

BNC Male - 3G

BNC Male - HD-SDI - 1.5G

BNC Female, panel mount - 3G

Micro BNC Male - 12G

DIN 1.0/2.3 Male - 3G

MUSA - 3G

MUSA Metrology grade

F Connector

RCA Phono

Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand
CANFORD SDV-F-R CABLE Black Black Artikelnummer: 36-660
2145 lieferbar Mehr benötigt?
2 kurze Kabellängen verfügbar
1+ 3,59 €
100+ 2,88 €
500+ 2,81 €
1.000+ 2,70 €
pro Meter
