CANFORD SDV-L-X-LFH - HDTV DIGITAL VIDEO CABLE (1.0/4.8) Low loss, extended performance, low fire hazard

CANFORD SDV-L-X-LFH CABLE Dca (s2 d1 a1), violet

Zusätzliche technische Informationen:

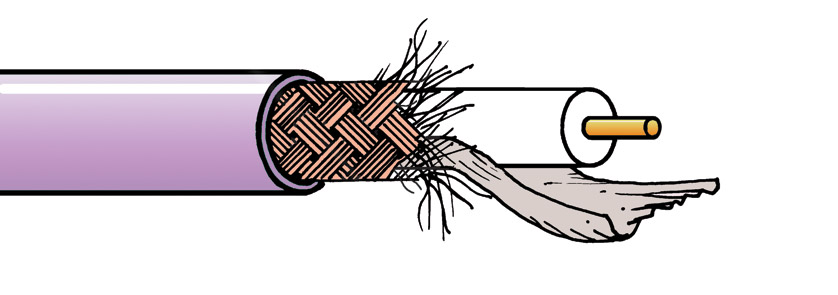

Extended performance low-loss coaxial 75 ohm cable specifically for 3GHz HDTV and serial digital video signals, with low-smoke, zero-halogen material outer jacket..

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:

Cable size group:	Y (with Canare BNC and F Connector Y group exceptions)
Inner conductor:	1.0mm plain copper
Dielectric:	Gas injected foam high density polyethylene, 4.8mm O.D.
Screen 1:	Aluminium/polypropylene/aluminium tape
Screen 2:	Tinned copper braid, optical coverage 95%
Screening efficiency:	95%
Construction:	Coaxial cable
Jacket:	Low smoke zero halogen material (FRNC IEC60332-1), O.D. 7.0mm, violet.
CPR Euroclass:	Dca -s2, d1, a1
Impedance:	75 ohms +/- 0.75 ohms
Capacitance:	56.pF/m
Return loss:	26dB nom. 50-300MHz
	22dB nom. 300-3000MHz
	18dB nom. 3000-3500MHz
	15dB nom. 3500-5000MHz

Attenuation:	MHz	100	200	300	500	800	1000	1500
	dB/100m	6.2	8.9	11.3	14.8	18.5	20.7	24.9
	MHz	2250	3000	3500	4000	4500	5000
	dB/100m	31.7	37.3	41.5	44.4	47.2	49.2

Weight:	6.9kg/100m
Reel length:	1000m
Cut lengths:	Available in any multiple of 1 metre

Suitable crimp connectors outlined below.

BNC Male - 12G

Brand	Code	Description
Canford Connect	48-6026	CANFORD CONNECT CCBNCY BNC 12G, crimp, 75 ohm, Group Y
COAX Connectors	48-5063	COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y
COAX Connectors	48-5073	COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y (pack of 100)
Neutrik	48-6376	NEUTRIK NBNC75BUU11X BNC 12G UHD Male cable, rear twist, Canford SDV-L-X-LFH

BNC Male, right-angled - 12G

Brand	Code	Description
COAX Connectors	48-5082	COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group Y
COAX Connectors	48-5092	COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp Y (pack of 100)

BNC Male - 3G

Brand	Code	Description
COAX Connectors	48-5043	COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y
COAX Connectors	48-5053	COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)
Neutrik	48-615	NEUTRIK NBNC75BWS11 BNC 3G Male cable, rear twist, group Y
Neutrik	48-6304	NEUTRIK NBNC75BUU11 BNC 3G Male cable, rear twist, Draka 1.0/4.8AF / group Y
Neutrik	48-6315	NEUTRIK NBNC75BWS11-D BNC 3G Male cable, rear twist, group Y (pack of 100, disassembled)
Telegartner	48-788	TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y
Telegartner	48-778	TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Male - HD-SDI - 1.5G

Brand	Code	Description
Telegartner	48-714	TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y
Telegartner	48-774	TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Female, panel mount - 3G

Brand	Code	Description
Neutrik	48-7991	NEUTRIK NBNB75GUU11 BNC 3G Female panel, grounded, crimp, group Y

Micro BNC Male - 12G

Brand	Code	Description
COAX Connectors	48-5026	COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y
COAX Connectors	48-5036	COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y (pack of 100)

DIN 1.0/2.3 Male - 3G

Brand	Code	Description
COAX Connectors	48-5006	COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y
COAX Connectors	48-5016	COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y (pack of 100)

MUSA - 3G

Brand	Code	Description
Canford	48-4436	CANFORD MUSA 3G HD Female, cable, group Y

MUSA Metrology grade

Brand	Code	Description
Canford	48-4486	CANFORD MUSA Metrology grade, silver, female, cable, group Y

F Connector

Brand	Code	Description
Telegartner	48-8282	TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y
Telegartner	48-8292	TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y (pack of 100)
