CANFORD SDV-X-LFH - HDTV DIGITAL VIDEO CABLE (0.6/2.8) Extended performance, low fire hazard

CANFORD SDV-X-LFH CABLE Dca (s2 d1 a1), violet

Zusätzliche technische Informationen:

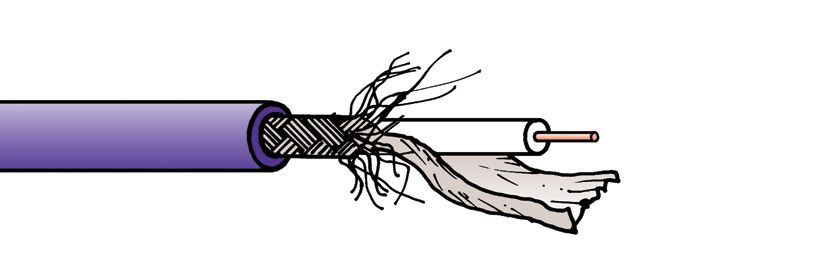

Extended performance, coaxial 75 ohm cable specifically for HDTV and serial digital video signals, with low-smoke, zero-halogen material outer jacket.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specifications:

Cable size group:	X
Inner conductor:	0.64mm +/-0.01mm plain copper
Dielectric:	Foam polyethylene, 2.80mm O.D.
Screen 1:	Aluminium/polyester/aluminium tape, longitudinally applied
Screen 2:	Tinned copper braid, O.D. 3.4mm
Construction:	Coaxial cable
Jacket:	Low smoke zero halogen material (FRNC IEC60332-1), O.D. 4.5mm, violet.
CPR Euroclass:	Dca-s2,d1,a1
Impedance:	75 +/- 1% ohms
Capacitance:	56pF/m nominal
Return loss:	26dB nom. 50-300MHz
	22dB nom. 300-3000MHz
	18dB nom. 3000-3500MHz
	15dB nom. 3500-5000MHz

Attenuation:	MHz	10	100	200	750	1500	3000	6000	9000	12000
	dB/100m	3.5	10.0	14.1	27.7	39.6	60.9	84.1	105.4	122.8

Weight:	2.8kg/100m
Reel length:	1000m
Cut lengths:	Available in any multiple of 1 metre
