Part of the yellobrik range of modules manufactured by Lynx Technik, the range includes designs for use with either SDI video signals up to 3GHz or analogue SDTV/HDTV video or Sync signals. Modules may be used alone, or mounted in an optional rack-mounting frame.
Common specifications
| Power source: |
9-14V DC (AC adapter supplied) |
| Dimensions: |
105 x 95 x 22mm |
Included accessories: All yellobrik modules are supplied with a plug-top power supply with UK, US, Australian and European plug fittings, wall-mounting bracketshook and loop mounting pads.
DVA 1714 - Analogue Video, Sync - 1x4
The DVA 1714 is a compact general purpose analogue video / sync distribution amplifier suitable for any analogue SDTV or HDTV video signal or SDTV bi-level sync pulses, black reference or HDTV tri-level sync pulses. It has one input and four outputs. User-adjustable gain and cable equalisation is provided, and signal presence is detected and indicated with a LED.
| Input: |
SDTV composite video (NTSC/PAL), SDTV component analogue video, HDTV component analogue video, SDTV bi-level sync (or black burst), HDTV tri-level sync, 75ohms, BNC. |
| Return loss: |
Better than 31dB to 30MHz |
| Input gain adjustment range: |
+/- 2.5dB |
| Input cable equalisation adjustment: |
0-8dB |
| Response: |
-3dB, 30MHz, EQ minimum; -3dB, 37MHz, EQ maximum; +/- 0.1dB to 10MHz |
| Noise: |
Better than -60dB RMS |
| Outputs: |
Analogue video / sync, 75 ohms, BNC |
| Return loss: |
Better than 22dB to 30MHz |
The DVD 1817 is a compact, general-purpose, re-clocking SDI distribution amplifier suitable for any SDI video signal up to 3GHz (1080p60). It has one input and seven outputs and auto-detects the input format; an LED indicates when an input signal is present. Outputs are multi-rate re-clocked. Supports DVB-ASI signals.
| SDI inputs: |
SDI video, 75ohms, BNC, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI. Multi-standard operation from 270Mbit/s to 2.97bit/s. |
| Return loss: |
Better than 15dB to 1.5Gbit/s and 10dB up to 3Gbit/s. |
| Automatic cable EQ: |
250m, 270Mbit/s; 140m, 1.5Gbit/s; 80m, 3Gbit/s; (Belden 1694A cable). |
| SDI outputs: |
SDI video, 75ohms, BNC, multi-rate re-clocked. SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI. |
| Jitter: |
Less than 0.2UI , 1.5GHz; 0.3UI, 3GHz. |

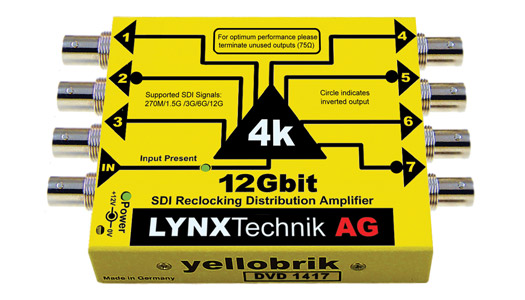

DVD 1417 - 12G SDI - 1x7
Has the same functionality as the DVD 1817, however offers up to 12Gbit/s (4k/UHD) video compatibility.
| SDI inputs: |
SDI video: 75ohms, BNC, SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082. Multi-standard operation from 270Mbit/s to 12Gbit/s. |
| Return loss: |
Better than 15dB to 1.5Gbit/s and better than 10dB from 1.5Ghz to 3GHz, better than 7dB from 3GHz to 6GHz; better than 4dB from 6GHz to 12GHz. |
| Automatic cable EQ: |
400m at 270Mbit/s; 200m at 1.5Gbit/s; 150m at 3GBit/s (Belden 1694A cable). 90m at 6Gbit/s; 80m at 12Gbit/s (Belden 4794R cable). |
| SDI outputs: |
SDI video, 75ohms, BNC, multi-rate re-clocked. SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082. |
| Jitter: |
Less than 0.2UI , 1.5Gbit/s; 0.3UI, 3Gbit/s, 6Gbit/s, 12Gbit/s. |
DVD 1823 - 3G SDI - Dual 1x3
The DVD 1823 is a compact, dual channel, general-purpose, re-clocking SDI distribution amplifier, suitable for any SDI video signal up to 3GHz (1080p60). It has two independent inputs each with three outputs and auto-detects the input format; an LED indicates when an input signal is present. Outputs are multi-rate re-clocked. Supports DVB-ASI signals.
Specifications: As the DVD 1817, see above.
DVD 1423 - 12G SDI - Dual 1x3
Has the same functionality as DVD 1823, however is capable of processing SDI video up to 12Gbit/s (4k/UHD).
Specifications: As the DVD 1417, see above.
