TUK CONNECTION BOX 520

Artikelnummer
46-057
Hersteller
TUK
Typennummer
  • 520
TUK CONNECTION BOX 520
TUK CONNECTION BOX 520TUK CONNECTION BOX 520

TUK CONNECT+ CONNECTION SYSTEM - Connection boxes

Ready-made connection boxes from TUK offering a range of low-profile to high-density termination solutions.

200 and 300 series

500 series

Manufactured from stainless steel. Designed to maintain the industry standard footprint supporting 10 pair disconnection modules. The doors can be removed entirely using quick release hinges and they can be reversed for left to right opening applications. All units come supplied with jumper rings, a fixed earth point and flexible access plates for top and bottom cable entry.


Box 510

High-density connection box to accept thirty four ABS/237 size modules (not supplied). Dimensions: 300 x 1000 x 140mm. Weight: 11kg. Number of jumper rings: 8. Knock-outs: 6.

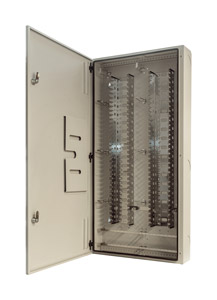

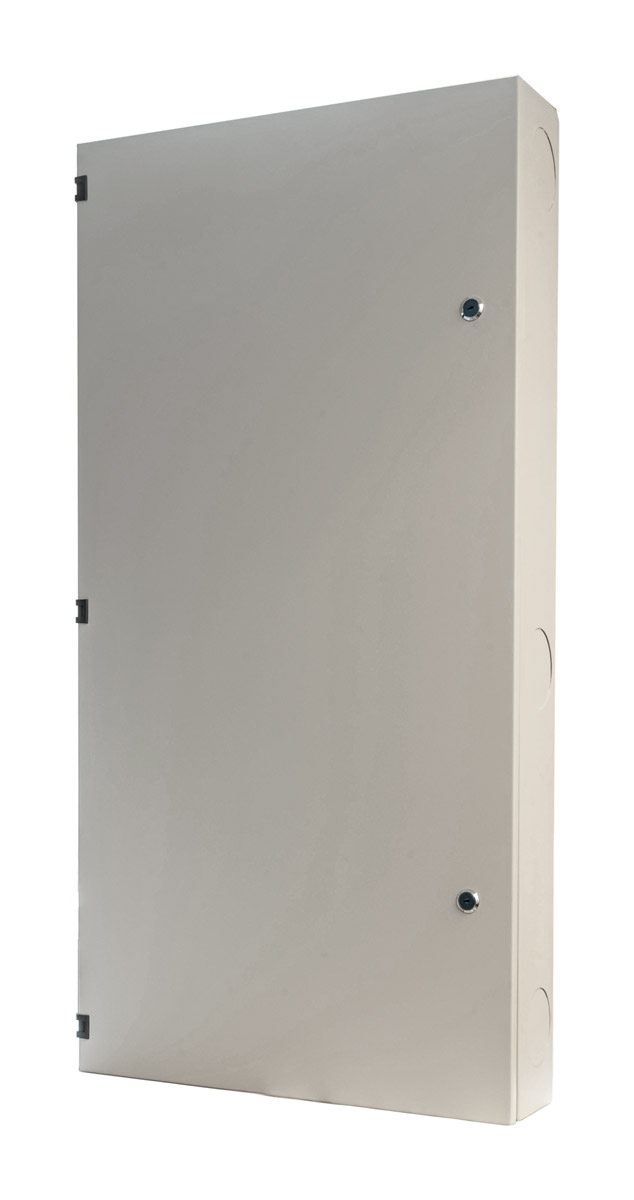

Box 520

Higher density connection box to accept sixty eight ABS/237 size modules (not supplied). Dimensions: 500 x 1000 x 140mm. Weight: 16kg. Number of jumper rings: 12. Knock-outs: 6.

For modules see TUK CONNECT+ CONNECTION SYSTEM - Modules
For mounting hardware see TUK CONNECT+ CONNECTION SYSTEM - Mounting hardware
For accessories see TUK CONNECT+ CONNECTION SYSTEM - Accessories
