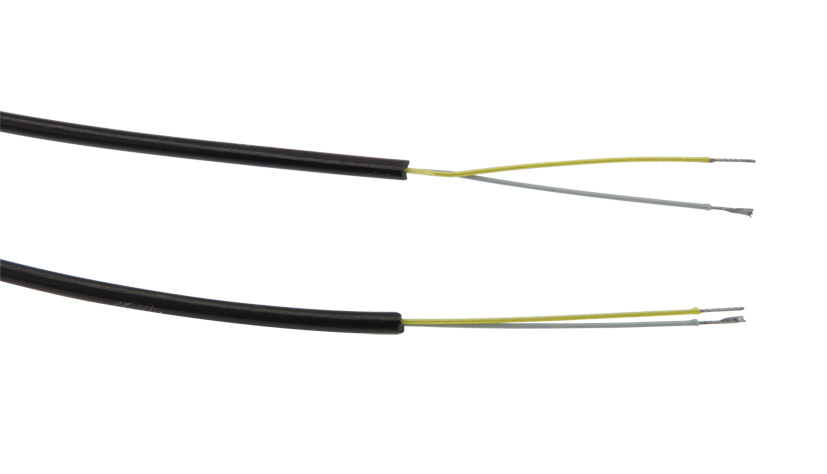

CANFORD SPARE EARPHONE CABLE For DMH205/220/225/285/320, headphones / headset

MwSt. / Versand

9,92 €
pro Stück (zzgl. MwSt.)

Quantity

Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an

Canford zweijährige Gewährleistung
RoHS Konform

CANFORD AND TECPRO HEADPHONE AND HEADSET SPARE PARTS - 300 Series

Spare parts for the Canford/Tecpro DMH320, DMH325 and SMH310 headphones and headsets.

Ref. on
Drawing	Description	Code
1	Earpad (DMH320, DMH325)	27-850
1	Earpad (SMH310)	27-851
2	Dust protector	27-852
3	Ear loudspeaker	27-853
4	Foam pad	27-854
5	Felt pad (35mm)	27-856
6	Screw KB3.5x8	27-857
7	Washer 4.3mm	27-858
8	Housing, inner part, left	27-859
9	Microphone boom	27-860
10	Housing, outer part, left	27-861
11	Headband holder, inner part	27-808
12	Headband holder, outer part	27-807
13	Screw, M2.2x9.5	27-809
14	Bellows	27-813
15	Microswitch	27-862
16	Sliding part, headband	27-816
17	Washer	27-817
18	Cable, earphone	27-812
19	Cable, microphone	27-863
20	Cable, microswitch	27-864
21	Mic housing sleeve	27-823
22	Wire insert, mic boom	27-865
23	Screw, M2.2x6.5	27-810
24	Mic housing, lower part	27-821
25	Felt washer	27-825
26	Dynamic mic element (DMH320, SMH310)	27-868
26	Condenser mic element (DMH325)	27-869
27	Mic housing, dynamic, upper part (DMH320, SMH310)	27-822
27	Mic housing, condenser, upper part (DMH325)	27-867
28	Foam windshield, complete	27-824
30	Brass ring	27-804
31	Cable (without plug)	27-826
32	Headband (DMH320, DMH325)	27-831
32	Headband (SMH310)	27-833
33	Raw steel bow (DMH320, DMH325)	27-836
33	Raw steel bow (SMH310)	27-030
34	Holder for temple pad (SMH310)	27-820
35	Temple pad (SMH310)	27-848
–	Housing, right (DMH320, DMH325)	27-847
