This range of tools from Senko is intended for everyday use in the installation and maintenance of fibre systems used in broadcast, datacoms or telecoms networks.
The Senko Smart Probe helps the user to inspect visually the end face of a fibre, for contamination or damage. Ergonomically designed, to fit comfortably in the hand, it has an integrated Wi-Fi module that connects wirelessly to a smart phone, tablet or laptop. With the free Senko VUE3 app, available for Android, Windows or IOS devices, images can be EXIF tagged, geo-tagged, viewed, stored or emailed as part of a maintenance or service contract. The VUE3 app also has the ability to automatically analyse the end face and indicate a pass or fail condition, removing the uncertainty of the untrained eye. VUE3 also gives the user the ability to upload fibre inspection results in differing levels of detail.
Included accessories: Rechargeable batteries giving up to three hours of continuous use, charger, 1.25mm and 2.5mm probe tips.
Optional accessories: Adapter for UPC, MPO; adapter for APC, MPO; tip for LEMO 2.0mm SMPTE.

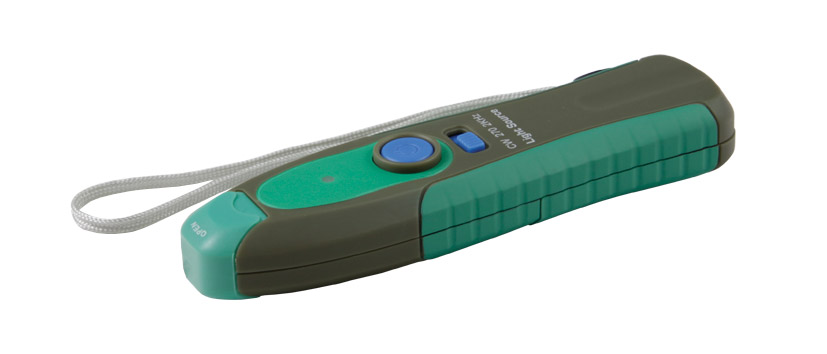

The Smart Source is an easy to use, lightweight, pocket light source. Used in conjunction with the Senko Smart Meter (50-1537 MM or 50-1538 SM) allows the user to test and certify a fibre link quickly and effectively.

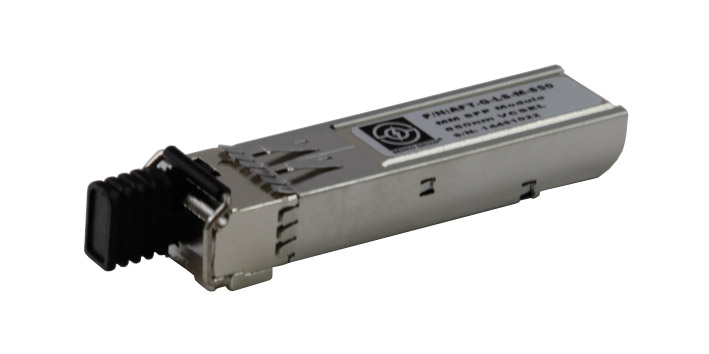

Required accessories: SFP module(s), as required; order separately from the list below.
Easy to use, lightweight and designed to fit in the pocket the Smart Power Meter is used in conjunction with the Smart Source to test and certify a fibre link. It is available in both a singlemode (1310/15550nm) and multimode version (850/1300nm). As standard the meter will accept a 2.5mm ferrule connector such as SC, FC, ST.
Optional accessories: 2.5mm to 1.25mm adapter suitable for LC connectors, 50-1539.
The checker is an easy to use, visible light source, designed to fit in a pocket. Refraction of the 650nm visible red light caused by any breaks and or cracks in the fiber will glow red, pinpointing an exact visual location of the fault in the fibre. As standard the Smart Checker will accept a 2.5mm ferrule connector such as SC, FC, ST.
Optional accessories: 2.5mm to 1.25mm adapter suitable for LC connectors, 50-1542
