GLENSOUND AOIP44 AES3 AUDIO INTERFACE AES3 to Dante/AES67, PoE, 2 inputs

Artikelnummer
95-9003
Hersteller
Glensound
Typennummer
  • AOIP44 AES3
GLENSOUND AOIP44 AES3 AUDIO INTERFACE AES3 to Dante/AES67, PoE, 2 inputs
GLENSOUND AOIP44 AES3 AUDIO INTERFACE AES3 to Dante/AES67, PoE, 2 inputsGLENSOUND AOIP44 AES3 AUDIO INTERFACE AES3 to Dante/AES67, PoE, 2 inputs

GLENSOUND AUDIO INTERFACES - Dante/Ravenna

A range of analogue/AES3 to Dante/AES67 and Dante/AES67 to analogue/AES3 interfaces from Glensound. These interfaces are designed to be used in broadcast audio and recording studios whereby a reliable and high quality end product is required. The AES3 interfaces have been designed for use in outside broadcast, theatre, and location applications, where interfacing between AES3 and Dante/AES67 is required.

GTM - Dante to headphone/headset

AoIP22u - 2x RCA (phono) I/O to Dante

AoIP22 - 2x Analogue I/O to Dante

AoIP22 AES3 - 1x AES3 I/O to Dante

AoIP2M - 2x Microphone to Dante

AoIP44 AES3 - 2x AES3 I/O to Dante

Like the AoIP22 AES3, AoIP44 AES3 is designed to easily and quickly interface existing AES3 equipment to a Dante/AES67 network audio system. PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation. AoIP44 AES3 provides 2 balanced AES3 audio circuit on and off the Dante/AES67 audio network.

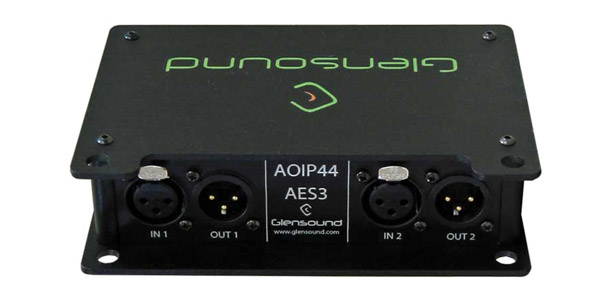

The front facing panel of the AoIP44 AES3 has two 3-pin XLR inputs that can accept sample frequencies from 32 to 192kHz. When operating a single AES3 output the AoIP44 AES3 can support sampling up to 96kHz; when operating two AES3 outputs the AoIP44 AES3 can support sampling up to 48kHz. The Front panel also houses two 3-pin XLR outputs. The AES outputs are synchronised to the network audio sample rate and as such the clock follows the Dante/AES67 circuits.

The rear facing panel of the AoIP44 AES3 a recessed reset button allows the firmware within the AoIP44 AES3 to be updated. Firmware can be updated via the micro-USB connector and connecting to a compatible PC.

The right side panel of the AoIP44 AES3 two link status LEDs that flashes to show when data is being correctly communicated with the attached switch. The left side of the AoIP44 AES3 one, 100Mb Ethercon connector can mate with Neutrik XLR based network cables and standard RJ45’s. This should be connected to a PoE enabled switch or to a normal network switch via a Mid Span PoE injector.

All four front corners of the AoIP44 AES3 feature large holes that are ideal for threading cable ties through for security.

Audio: Frequency response: Flat to 22kHz. Maximum input before clip: 0dBFs. Maximum output level: 0dBFs. Input impedance: 110ohms. Output impedance: 110ohms. Distortion: 0.00006%. THD+N at 1kHz reference to +18dBu output. Input type: Transformer balanced on Neutrik 3-pin XLR socket. Noise: greater than -123dBu, residual. Dynamic range: 141dBs. Input frequency: 32 to 192kHz. Output frequency: 44.1/48/88.2/96kHz, 1 x AES3 channel driven; 44.1/48kHz, 2 x AES3 driven, locked to Dante. Power: PoE: 1.2W. Source: PoE Enabled switch or mid-span PoE Injection.

Network audio: Compatible audio networks: Dante uncompressed, low latency audio. AES67 network connection: Neutrik RJ45 EtherCON. Dante network sample rate: 44.1/48/88.2/96/192k. AES67 network sample rate: 48k. Dimensions (WxDxH): 153 x 105 x 41mm, excluding belt-clip. Weight: 420g. Mechanics: All aluminium construction, anodized and laser etched.

Included Items: Handbook (download also available), 2m Cat5 Rj45 plug/Rj45 plug cable, fitted belt-clip

SIGNATURE AOIP44 - 4x Analogue I/O to Dante

DARK DAWN 1616M - 16x Analogue I/O, Dante/AES67

DARK8O - 8x Analogue outputs to Dante

DARK8ADI - 8x Analogue/4x AES3 input to Dante

DARK88 MKII - 8x8 Line-level to Dante

DARK16I - 16x analogue input to Dante

DARK16O - 16x analogue outputs to Dante

DARK1616 - 16x16 line-level and AES to Dante

DARK1616D - 8x8 AES to Dante

DARK1616M - 16x16 mic/line-level and AES to Dante

Optional SFP Modules

Dante/SFPS is a single-mode module and Dante/SFPM is multi-mode. Dante/SFP1 and Dante/SFP2 are for use over distances up to 10km and are WDM (wavelength-division multiplexing) types, a multiplexing technology which can be used to enable bi-directional communication over a single fibre. Dante/SFP1 should be used in a pair with SFP2 Dante breakout boxes: See Dante interfaces.
