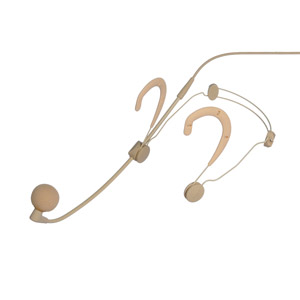

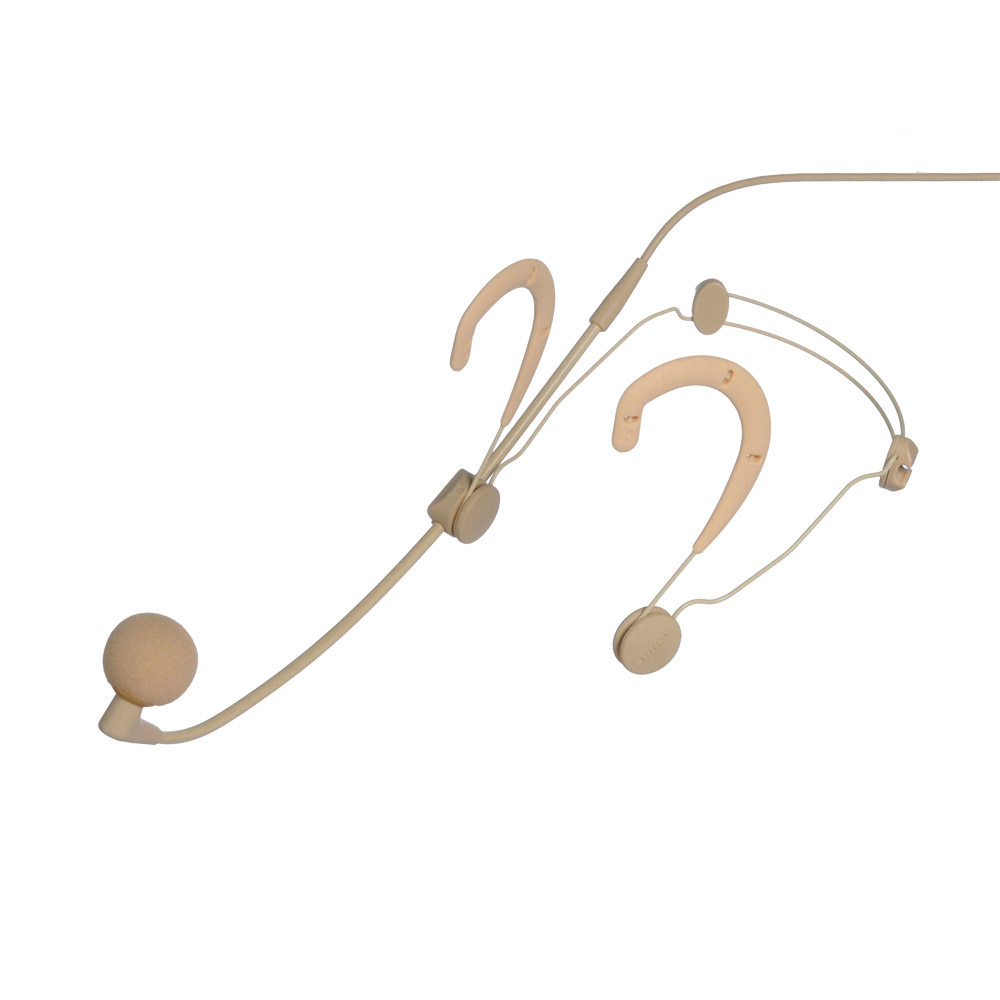

SHURE WBH54T MICROPHONE Headworn, condenser, supercardioid, TA4F connector, tan

Artikelnummer
74-6424
Hersteller
Shure
Typennummer
  • WBH54T
Farbe
  • TanTan
SHURE WBH54T MICROPHONE Headworn, condenser, supercardioid, TA4F connector, tan
SHURE WBH54T MICROPHONE Headworn, condenser, supercardioid, TA4F connector, tan

WBH54 Headworn Vocal Microphone

The WBH54 (wireless version of the Beta 54) is a subminiature, electret condenser head worn microphone. It provides uncompromised sound quality and reliability with minimal visibility in applications such as broadcast, theater, and touring. Despite their small size, the condenser element delivers full, clear, and natural reproduction of speech and vocals. The microphone features a durable, low-profile wire frame headband which is fully adjustable for stability and comfort. A plastic carrying case protects the microphone.

  • WBH54B - Black, 5-ft. Attached Cable with 4-pin mini-connector (TA4F), foam windscreen, clothing clip, carrying case

  • WBH54T - Tan  5-ft. Attached Cable with 4-pin mini-connector (TA4F), foam windscreen, clothing clip, carrying case

Features

  • Supercardioid polar pattern provides maximum gain-before-feedback and ambient rejection
  • Extended frequency response tailored for vocal performances
  • Able to handle extremely high sound pressure levels (SPL)
  • Snap-fit foam windscreens stay in place during intensive movement
  • Available with an in-line preamp or with a TA4F connector for wireless applications
  • WBH54: Choice of black or tan finish to suit your performance environment

Specifications

Specification
Type Condenser (electret bias)
Frequency Response 50Hz to 20KHz
Polar Pattern Supercardioid
Output Noise (equivalent
dBSPL, A-weighted)
39.0 dB typical; 42.0 dB maximum
Signal-to-Noise Ratio 55.0 dB at 94 dBSPL
Recommended Minimum Input
Impedance
20 kilohms
Output Level, open circuit, ref.
1v/Pa at 1 kHz
-56.0 +/- 3.0dB
1.58mV
Maximum Sound Pressure Level 144 dBSPL at 1% THD/20 kilohm load
Dynamic Range 105 dB (max. SPL with 20k load,
minus typical A-wt. noise)
Current Drain 60-130 microA (microphone only)
Output Polarity
Positive pressure on the
diaphragm produces a positive
voltage at:
Pin 3 (black lead) relative to pin 1
(shield lead) at the output connector
of the microphone
Power Requirements +5 Vdc on pin 2, return on pin 1 (ground)
Net Weight 35.35 g (1.25 oz.)
microphone only
Cable 1.5 m (5 ft.), small-diameter, shielded, with mini 4-pin connector (TA4F)

User Guides

SHURE MICROPHONES - Headworn

A range of headworn microphone series' from Shure that may be used wired or with a Shure radiomic wireless body-pack, depending on model.

PG Series

SM Series

WH Series

BETA Series

WCM Series

WBH Series


WBH53B, WBH53T

abgekündigt

These types are omnidirectional condenser microphones, 'designed for applications where unconspicuous appearance and incredible sound quality are required'. The WBH53B is black, and has a 1.5m cable with 4-pin mini connector (TA4F) suitable for a Shure wireless bodypack transmitter. The WBH53T is tan coloured, but otherwise the same. The BETA53 is the version for use with a cable rather than a transmitter pack.


WBH54B, WBH54T

Condenser microphones with a supercardioid polar pattern. The WBH54B is black, and has a 1.5m cable with 4-pin mini connector (TA4F) suitable for a Shure wireless bodypack transmitter. The WBH54T is tan coloured, but otherwise the same.
