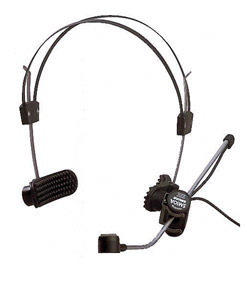

SHURE SM10A MICROPHONE Headworn, dynamic, cardioid, XLR connector, black/silver

Artikelnummer
92-403
Hersteller
Shure
Typennummer
  • SM10A
Farbe
  • BlackBlack
  • SilverSilver
SHURE SM10A MICROPHONE Headworn, dynamic, cardioid, XLR connector, black/silver
SHURE SM10A MICROPHONE Headworn, dynamic, cardioid, XLR connector, black/silver

SM10A Headworn Microphone

The Shure SM10A is a low-impedance, unidirectional dynamic microphone designed for close-talk head-worn applications such as remote-site sports broadcasting and corporate intercom systems. It is also ideal for singing drummers, keyboard artists, and other performers who need a head-worn vocal microphone with superior noise rejection and a smooth, natural-sounding frequency response.

Features

The SM10A is very lightweight and is typically mounted on the supplied steel headband assembly. An adjustable pivot on the headband assembly allows the microphone boom to be moved 20 degrees in any direction. The boom also slides out so the microphone can be positioned up to 89 mm (3 1/2 in.) from the pivot housing. A supplied windscreen reduces wind noise and explosive breath sounds. A belt clip that fits over the XLR connector and attaches to the user's belt or waistband provides cable strain relief.

  • Close-talk design provides excellent isolation and minimizes gain-before-feedback
  • Extremely rugged with fully adjustable headband and microphone boom
  • Unidirectional(cardioid) polar pattern for superior rejection of unwanted sound
  • A clip that fits over the XLR connector and attaches to the user's belt or waistband, providing cable strain relief

Specifications

Type

Dynamic, close-talk

Frequency Response (at 8 mm [5/16 in.])

50 to 15,000 Hz

Polar Pattern

Cardioid, uniform with frequency, symmetrical about axis

lmpedance

Rated at 150 ohms (223 ohms actual)

Sensitivity (1,000 Hz at 8 mm (5/16 in.)

Open Circuit Voltage: –65.0 dBV/Pa* (0.45 mV)

*1 Pa = 94 dB SPL

Polarity

Positive pressure on diaphragm produces positive voltageon pin 2 of microphone connector.

Connector

Professional three-pin male XLR audio connector.

Cable

Non-detachable, 1.5 m (5 ft), two-conductor, shielded,plastic-jacketed

Case

Black thermoplastic microphone and pivot housing, anodizedaluminum end caps, stainless steel grille, and boom

Net Weight

78 grams (2.7 oz) less cable and connector

Packaged Weight

950 grams (2 lbs., 1 1/2 oz)

User Guides

SHURE MICROPHONES - Headworn

A range of headworn microphone series' from Shure that may be used wired or with a Shure radiomic wireless body-pack, depending on model.

PG Series

SM Series


SM10A

abgekündigt

This is a low-impedance, unidirectional dynamic microphone designed for 'close-talk head-worn applications such as remote-site sports broadcasting and corporate intercom systems'. It is also 'ideal for singing drummers, keyboard artists, and other performers who need a head-worn vocal microphone with superior noise rejection and a smooth, natural-sounding frequency response'.


SM31FH-TQG

Designed for fitness, aerobic and other uses in humid environments, the SM31FH-TQG is a lightweight headset microphone with 'moisture-repelling' hydrophobic properties. The cardioid condenser microphone capsule is positioned at the end of a flexible gooseneck on the left side of the headset. Terminated with TA4F (4-pin mini XLR) connector it requires 5V DC nominal, 10V maximum, phantom power.


SM35-XLR, SM35-TQG

The SM35-XLR headset microphone has been designed to offer 'hands-free performance for multi-instrumentalists'. The 'tight' cardioid condenser capsule gives a high level of feedback rejection and is popular among users who use stage monitors. A 'tailored' frequency response of 40Hz - 20kHz and a sensitivity of -59dBV/Pa - 1.10mV/Pa results in a 'clear, and crisp vocal reproduction'. It is terminated with a 3-pin male XLR connector. The SM35-TQG has the same audio properties but is fitted with a miniature, 4-pin, female connector (TA4F) for direct connection to Shure wireless bodypack transmitters.
