NEUTRIK XCR-9 XLR CODING RING White
NEUTRIK BSX-9 XLR GLAND White
NEUTRIK NC3FXX-HE XLR Female cable
NEUTRIK NC3MXX-HE XLR Male cable
NEUTRIK BXX-9 XLR GLAND White
NEUTRIK XXR-2 XLR CODING RING Red
NEUTRIK XXR-9 XLR CODING RING White

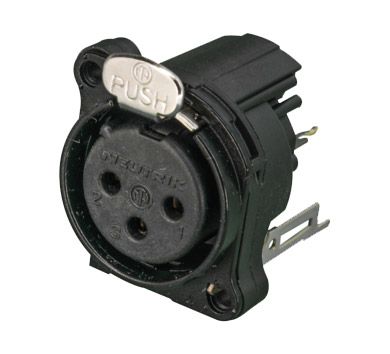

Metal bodied XLR panel connectors from Neutrik, these have the smallest size and highest packing density (23mm between centres, except HL and HR type 25.5mm). The B series offers low cost ultra-basic metal shell connectors, available in nickel or black (-B suffix) finishes. Female and male connectors have the same panel cutout and mountings, and all connectors have hard gold plated contacts with wiping-action design. Panel fastening of these connectors, which are not compatible with any other Neutrik design (due to the need to optimise packing density), is by M2.5 self-tapping screws with tri-rondular threads; available with countersunk (40-928, 40-929) or pan (40-931) heads.
There are a total of 4 orientations of the PCB pins in this series. Lateral types mount the PCB on one side, either left or right. These could be used, for example, on mixer channel modules.
Further options exist for the female connectors, denoted by suffix numbers and letters:
Further options exist for the male connector, denoted by suffix numbers and letters:
Note: For 4-pin and 5-pin connectors, see Neutrik XLR Panel Connectors: BA series.
