These active, sub-bass speakers are part of the Genelec SAM series and have been designed to complement 'The Ones' range of monitors, to offer a complete audio system for studios and home theatre setups. With models ranging from 150W to 800W, they use Laminar Spiral Enclosure technology; the bass-reflex cabinets, made of sheet metal, are rolled into a a spiral shape to provide excellent laminar flow characteristics with minimal turbulence noise.
This 8-inch sub-woofer has been designed to complement the smaller of the SAM series monitors to provide a fuller sound within a compact footprint of 410x350x319 (HxWxD) mm. The class D, 150W amplifier produces frequency response of 22Hz to 100Hz, or 22Hz to 160Hz, with LFE active.
All connectivity is on the right side of the subwoofer, including five balanced analogue inputs via 3-pin XLR connectors, with corresponding balanced outputs. An LFE (Low Frequency Effects) input channel provides for the connection of a dedicated sub output from a compatible receiver or amplifier. Digital (AES/EBU) I/O is provided by 3-pin XLR connections and network I/O connectivity to the GLM network adapter and other monitors is by way of two RJ45 connections.
The AC mains power connection is an IEC inlet and power on/off is via a latching rocker switch. An illuminated LED positioned above the IEC input signifies power on. ISS (Intelligent Signal Sensing) senses when the loudspeaker has not received any audio input for a period of one hour, and switches the loudspeaker into sleep mode, consuming less than 0.5W. When an input signal is detected the monitor resumes normal operation and power consumption. ISS is disabled as factory default and can be activated using GLM software.
The 7360A has a class D, 300W amplifier which powers a 10-inch driver to produce an output of 109dB SPL with a frequency response of 19-100Hz, or 19-150Hz with LFE active.
Like the 7350, all connectivity is on the right side of the subwoofer, including seven balanced 3-pin XLR analogue inputs with corresponding balanced 3-pin XLR outputs, a LFE (Low Frequency Effects) input channel to allow the connection of a dedicated sub output from a compatible receiver or amplifier and an LFE output for linking via 3-pin XLR. Link in and out connections are provided via balanced 3-pin XLR while digital (AES/EBU) I/O is also provided via 3-pin XLR connections. Network input and output connectivity to the GLM network adapter and other monitors is by way of two RJ45 connections. Miniature (DIP) switches allow the configuration of bass roll-off, phase, digital LFE, test tone, and 'Stored' in which the settings can be overridden with those preset using GLM software.
The AC mains power connection is an IEC inlet and power on/off is via a latching push switch. An illuminated LED positioned above the IEC input signifies power on. ISS (Intelligent Signal Sensing) senses when the loudspeaker has not received any audio input for a period of one hour and switches the loudspeaker into sleep mode, consuming less than 0.5W. ISS can be enabled/disabled via a dip switch on the control panel of the speaker. A 'Bypass' socket, 6.35mm jack, provides a connection for a compatible open/close device to bypass the bass manager.
7370A SAM subwoofer has the same functionality and frequency reproduction of the 7360A, however a 400W class D amplifier powers a 12-inch bass driver to produce 113dB SPL.
This has the same functionality of the 7360A and 7370A, however it has a frequency response of 16-100Hz (120Hz with LFE). An 800W amplifier feeds a 15-inch bass driver to produce a maximum level of 119dB SPL.
Designed for recording studio, post-production, EDM, and premium home theatres, 7382 is a 3x 381mm (3x 15-inch) subwoofer driven by a single 2500watt, Class D amplifier, and capable of a sound pressure level of 129dB (133dB peak). The subwoofer is driven by the included, and individually calibrated RAM-SW amplifier, which has a host of input types to best suit the user's set up. Analogue audio inputs are provided by way of dual 3-pin XLR connections (for channels 1 and 2), an analogue LFE (low frequency effects) channel input on 3-pin XLR, AES/EBU in and thru on 3-pin XLR, and dual RJ45 connections for compatibility with GLM hardware and controller software. The subwoofer is connected to the amplifier with single 4-pole Speakon to Speakon cable.
Included accessories: Calibrated RAM-SW amplifier, 1x 1.8m mains cable, 1x 5m RJ45 network cable, 1x 10m four-pole Speakon to Speakon audio cable.
W371A

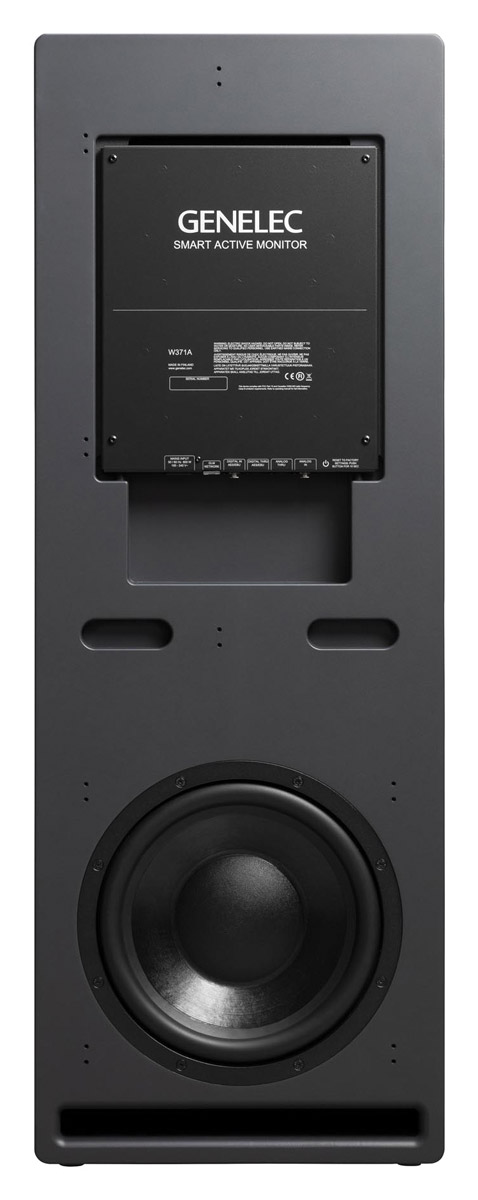

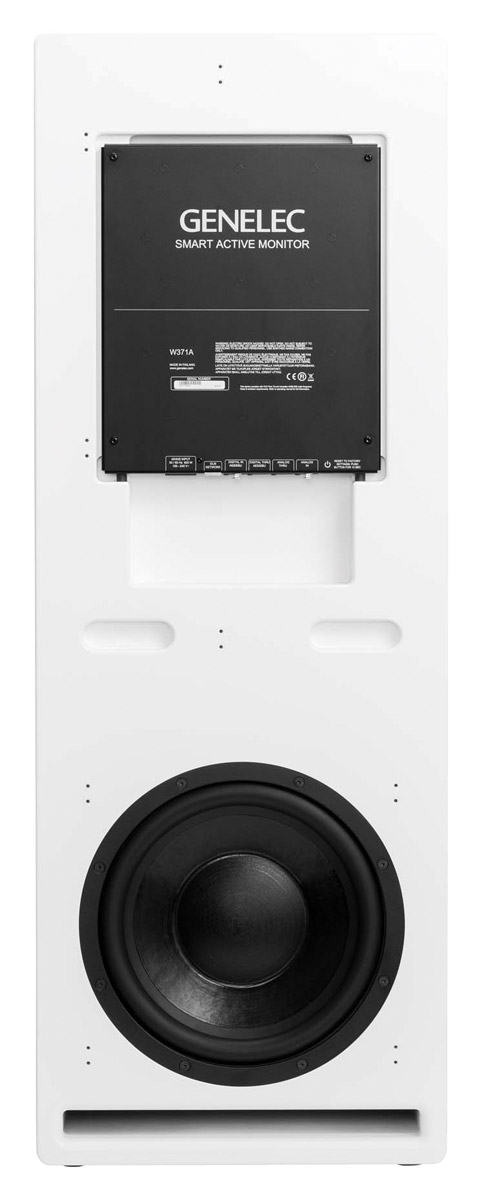

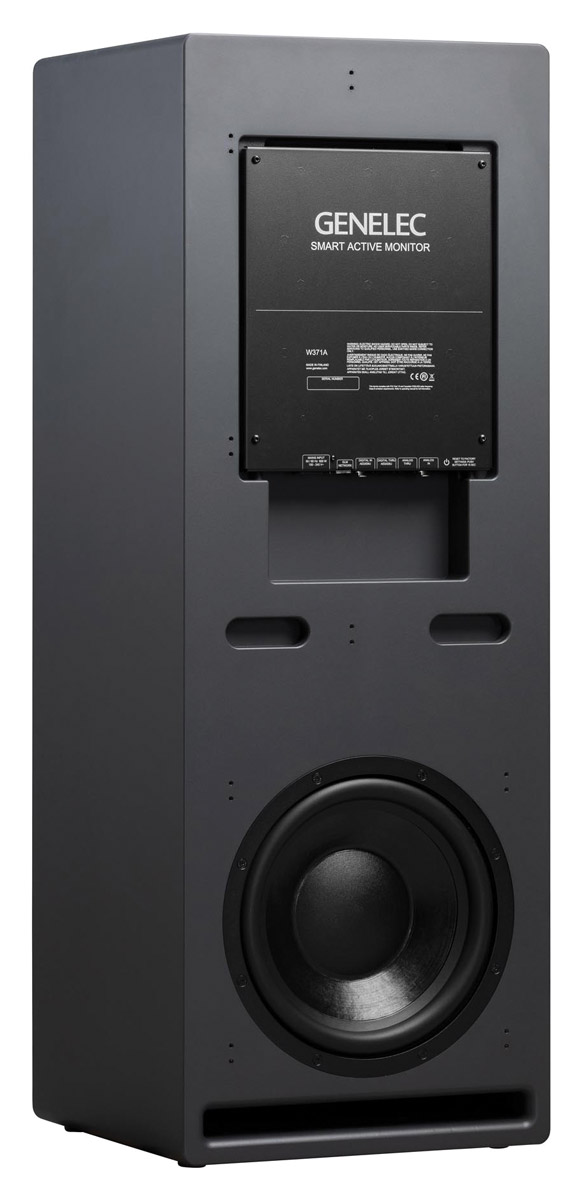

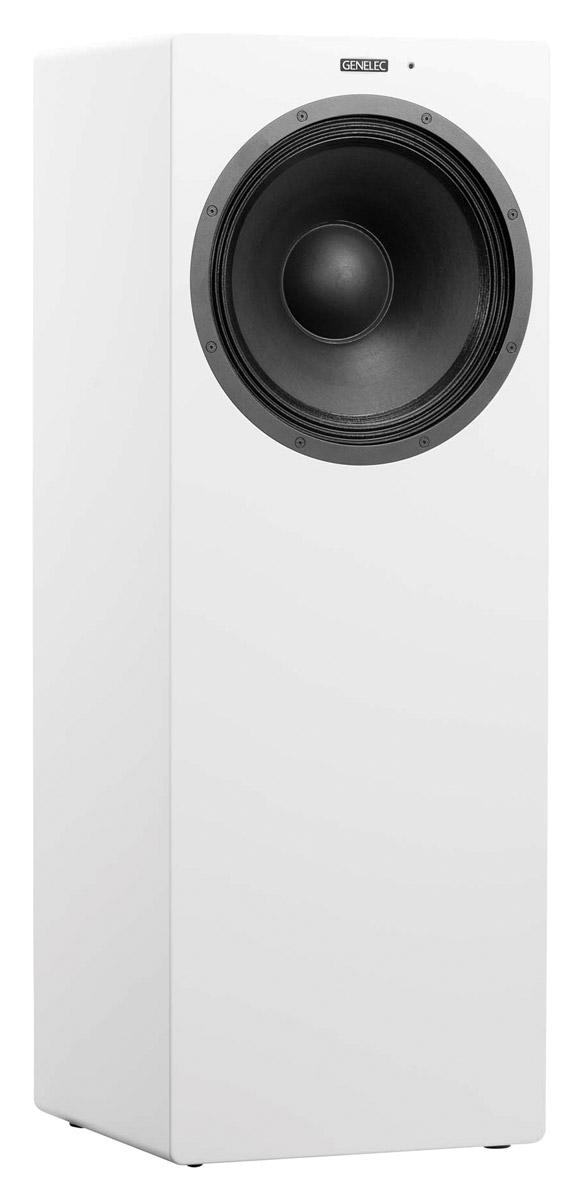

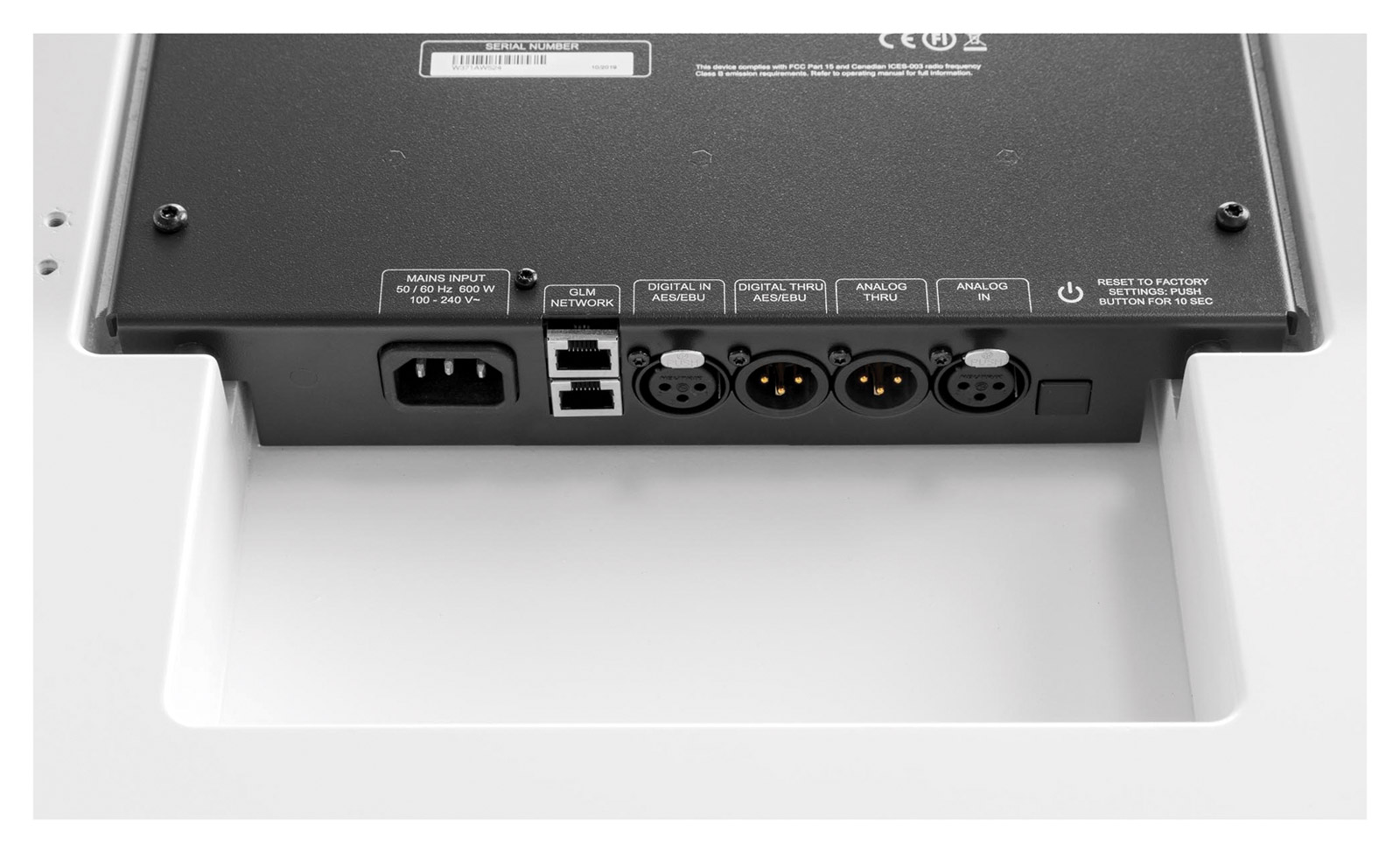

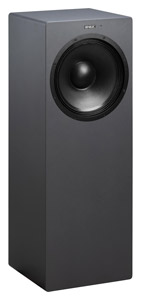

This Genelec subwoofer features dual LF drivers, a front facing 356mm LF driver and a 305mm rear facing LF driver, reflex port design, and LIP (Laminar Integrated Port) technology for best low frequency imaging. With three modes of operation allow the user to select the best suited for the subwoofers position and setup. W371A can then be optimised using the GLM software. Two 400watt, Class D amplifiers drive the subwoofer and aid a sound pressure level of 120dB and a frequency response of 23Hz to 500Hz at -6dB. Connections are located on the rear facing panel and include analogue input via 3-pin XLR, analogue output via 3-pin XLR, AES/EBU I/O on 3-pin XLR, and dual RJ45 connections for GLM system configuration.
Included accessories: 1x 1.8m mains cable, 1x 5m RJ45 network cable, 8x cable management clips, 16x screws.
Specifications
GLM Loudspeaker Management Kit
Comprising of GLM network adapter, Genelec 8300A calibration microphone, microphone holder (with both 5/8-inch and 3/8-inch threads) and quick connection guide, this kit is used to link the Genelec GLM3 software (free to download) via the network adapter to 'The Ones' series of monitors and compatible SAM sub-woofers. Once connected, AutoCal calibration may be implemented to adjust monitor levels, frequency responses, time alignment, phase adjustment and determine unlimited setup files for quick recall.
The rear face of the desktop GLM network adaptor has a USB 2.0 type B connector that can be used to power the unit via a compatible computer or mains adapter. A yellow LED shows power-on status. A 3.5mm jack provides connectivity to the 9310A volume controller; a second 3.5mm jack allows for the connection of the included 8300A calibration microphone. Two RJ45 network connections link to compatible monitors and are complete with terminator (the latter being optional).
