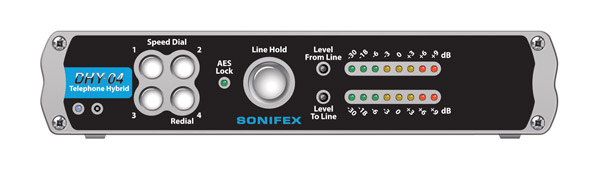

SONIFEX DHY-04 TELEPHONE BALANCE UNIT Digital, single, AES/EBU, Ethernet, desktop

Artikelnummer
28-341
Hersteller
Sonifex
Typennummer
  • DHY-04
SONIFEX DHY-04 TELEPHONE BALANCE UNIT Digital, single, AES/EBU, Ethernet, desktop
SONIFEX DHY-04 TELEPHONE BALANCE UNIT Digital, single, AES/EBU, Ethernet, desktopSONIFEX DHY-04 TELEPHONE BALANCE UNIT Digital, single, AES/EBU, Ethernet, desktopSONIFEX DHY-04 TELEPHONE BALANCE UNIT Digital, single, AES/EBU, Ethernet, desktop

Bestellangaben

MwSt. / Versand
1.677,90 
pro Stück (zzgl. MwSt.)
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 4‑6 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an

SONIFEX TELEPHONE BALANCE UNITS

These telephone balance units automatically compensate for variable line resistance and reactance whilst the line is connected. All units in the range are fully approved by BABT with “green dot” approval S/3619/23/L/501792 and are compliant with European PTT specifications.

HY-03 Analogue telephone hybrid

DHY-04 DSP based telephone hybrid

DHY-04 series is the ‘redesign of DHY-03’ telephone hybrid units with the addition of Ethernet connectivity. Ethernet connectivity enables the engineer to configure and control the unit via a remote web browser. The addition of AES/EBU digital inputs, along with analogue audio inputs give for better quality and performance, whilst the addition of speed dial buttons, located on the front panel, aids ergonomic usage.

Other features of the DHY-04 include dial tone recognition (DTMF), which allows a remote caller to dial in using a pre-programmed password and automatically connect to on-air status. Like the DHY-03, DHY-04 offers full adaptive echo cancellation to 127msec default is set to 24msec, however DSP increases the unwanted sideband rejection to 70dB (measured using tone, ref. 0dBu peak output) as opposed to 72dB of the DHY-03.

Dimensions (WxDxH): 218 x 45 x 175mm, DHY-04; 483 x 45 x 175mm, DHY-04S or T

Versions available:

DHY-04 Single unit, freestanding
DHY-04S Single unit, rackmounting
DHY-04T Twin unit, rackmounting

DHY-04V VoLTE hybrid

DHY-04G DSP based GSM hybridabgekündigt

DHY-04HD DSP based HD voice and GSM hybridabgekündigt

Specifications:
HY-03 DHY-04 DHY-04V DHY-04G DHY-04HD
Input impedance, Line mode (1) 10kohm 10kohm 10kohm 10kohm 10kohm
Input impedance, Mic mode 200ohms 2kohms 2kohms 2kohms 2kohms
Clean feed limiting input +4dBu -4dBu -4dBu -4dBu -4dBu
Bandwidth to telephone line (2) 250Hz - 4kHz 250Hz - 4kHz - - -
Output impedance, analogue 50ohms 50ohms 50ohms 50ohms 50ohms
Output impedance, digital - 110ohms 110ohms 110ohms 110ohms
Output level range +8dB to -14dB +6dB, 0dB, -6dB +6dB, 0dB, -6dB +6dB, 0dB, -6dB +6dB, 0dB, -6dB
Rejection ratio 45dB 80-88dB - 80-88dB -
Connections;
Mic/line/AES-EBU in (3) 3-pin female XLR 3-pin female XLR 3-pin female XLR 3-pin female XLR 3-pin female XLR
Line/AES-EBU out (3) 3-pin male XLR 3-pin male XLR 3-pin male XLR 3-pin male XLR 3-pin male XLR
Ethernet - RJ45 RJ45 RJ45 RJ45
GSM Antenna - - SMA SMA SMA
Telephone line RJ11 6/4 RJ11 6/4 - - -
Telephone handset/instrument RJ11 6/4 RJ11 6/4 - - -
Conference or record audio - RJ45 RJ45 RJ45 RJ45
Remote 9-way D-type 9-way D-type 9-way D-type 9-way D-type 9-way D-type
RS232 - 9-way D-type 9-way D-type 9-way D-type 9-way D-type

Notes: (1) clean feed at 0dB, balanced; (2) -3dB ref 1kHz; (3)
