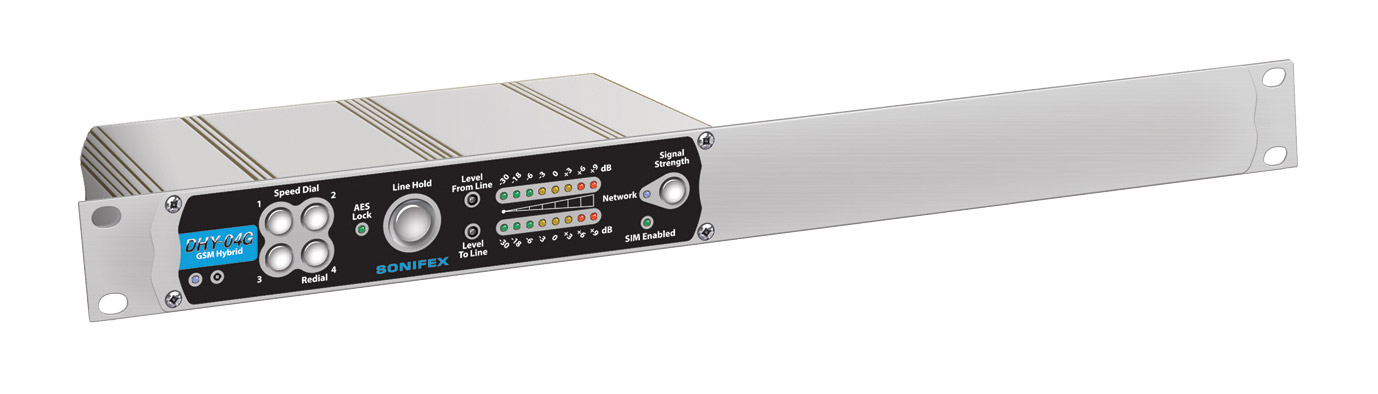

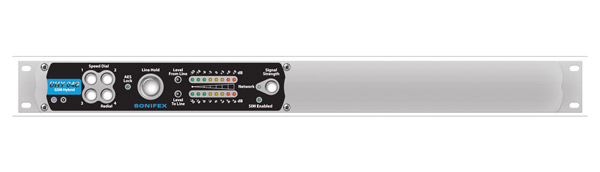

SONIFEX DHY-04GS TELEPHONE BALANCE UNIT Digital, GSM hybrid, single, AES/EBU, Ethernet, rackmount

Artikelnummer
28-345
Hersteller
Sonifex
Typennummer
  • DHY-04GS
SONIFEX DHY-04GS TELEPHONE BALANCE UNIT Digital, GSM hybrid, single, AES/EBU, Ethernet, rackmount
SONIFEX DHY-04GS TELEPHONE BALANCE UNIT Digital, GSM hybrid, single, AES/EBU, Ethernet, rackmountSONIFEX DHY-04GS TELEPHONE BALANCE UNIT Digital, GSM hybrid, single, AES/EBU, Ethernet, rackmountSONIFEX DHY-04GS TELEPHONE BALANCE UNIT Digital, GSM hybrid, single, AES/EBU, Ethernet, rackmount

SONIFEX TELEPHONE BALANCE UNITS

These telephone balance units automatically compensate for variable line resistance and reactance whilst the line is connected. All units in the range are fully approved by BABT with “green dot” approval S/3619/23/L/501792 and are compliant with European PTT specifications.

HY-03 Analogue telephone hybrid

DHY-04 DSP based telephone hybrid

DHY-04V VoLTE hybrid

DHY-04G DSP based GSM hybridabgekündigt

DHY-04G series has the same functionality as the DHY-04, however in place of landline telephone connection it uses a GSM card to connect callers on 2G/GSM cellular network, enabling compatibility to a 4-wire input and output of the studio. This feature can be implemented by inserting a valid SIM card into a slot on the rear facing panel of the DHY-04G. The GSM feature makes the unit particularly useful in OB vans or where suitable landline connection can’t be accessed.

Dimensions (WxDxH): 218 x 45 x 175mm, DHY-04G; 483 x 45 x 175mm, DHY-04GS or GT

Versions available:

DHY-04G Single unit, freestanding
DHY-04GS Single unit, rackmounting
DHY-04GT Twin unit, rackmounting

DHY-04HD DSP based HD voice and GSM hybridabgekündigt

Specifications:
HY-03 DHY-04 DHY-04V DHY-04G DHY-04HD
Input impedance, Line mode (1) 10kohm 10kohm 10kohm 10kohm 10kohm
Input impedance, Mic mode 200ohms 2kohms 2kohms 2kohms 2kohms
Clean feed limiting input +4dBu -4dBu -4dBu -4dBu -4dBu
Bandwidth to telephone line (2) 250Hz - 4kHz 250Hz - 4kHz - - -
Output impedance, analogue 50ohms 50ohms 50ohms 50ohms 50ohms
Output impedance, digital - 110ohms 110ohms 110ohms 110ohms
Output level range +8dB to -14dB +6dB, 0dB, -6dB +6dB, 0dB, -6dB +6dB, 0dB, -6dB +6dB, 0dB, -6dB
Rejection ratio 45dB 80-88dB - 80-88dB -
Connections;
Mic/line/AES-EBU in (3) 3-pin female XLR 3-pin female XLR 3-pin female XLR 3-pin female XLR 3-pin female XLR
Line/AES-EBU out (3) 3-pin male XLR 3-pin male XLR 3-pin male XLR 3-pin male XLR 3-pin male XLR
Ethernet - RJ45 RJ45 RJ45 RJ45
GSM Antenna - - SMA SMA SMA
Telephone line RJ11 6/4 RJ11 6/4 - - -
Telephone handset/instrument RJ11 6/4 RJ11 6/4 - - -
Conference or record audio - RJ45 RJ45 RJ45 RJ45
Remote 9-way D-type 9-way D-type 9-way D-type 9-way D-type 9-way D-type
RS232 - 9-way D-type 9-way D-type 9-way D-type 9-way D-type

Notes: (1) clean feed at 0dB, balanced; (2) -3dB ref 1kHz; (3)
