Designed for videowall installations in corporate, commercial and educational environments, these modular mounts can be used to create unlimited configurations of videowall including both portrait and landscape orientations.
The models differ principally in terms of maximum load, mounting compatibilities and whether they have the facility to tilt the screen. Most have either one or two steel poles which connect with a vestigial base. The screen (s) is mounted by means of various designs of hardware fixed to circular collars which grip the poles. These may be moved up and down the poles.
BT8312

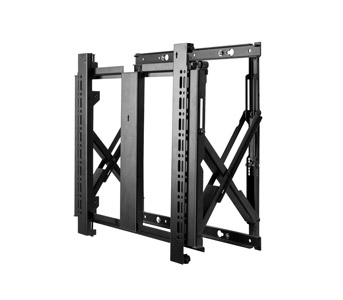

This pop-out mount has a maximum load capacity of 50kg and is designed for screens between the size of 42-70 inches in landscape orientation, or 46-70 inches in portrait orientation. BT8312 is VESA compatible with 200x100 to 400x400 as standard and adaptors are provided to enable VESA 600x400 compatibility. Optional BT7565 adaptor arms enable compatibility to VESA 800x400 fixings.

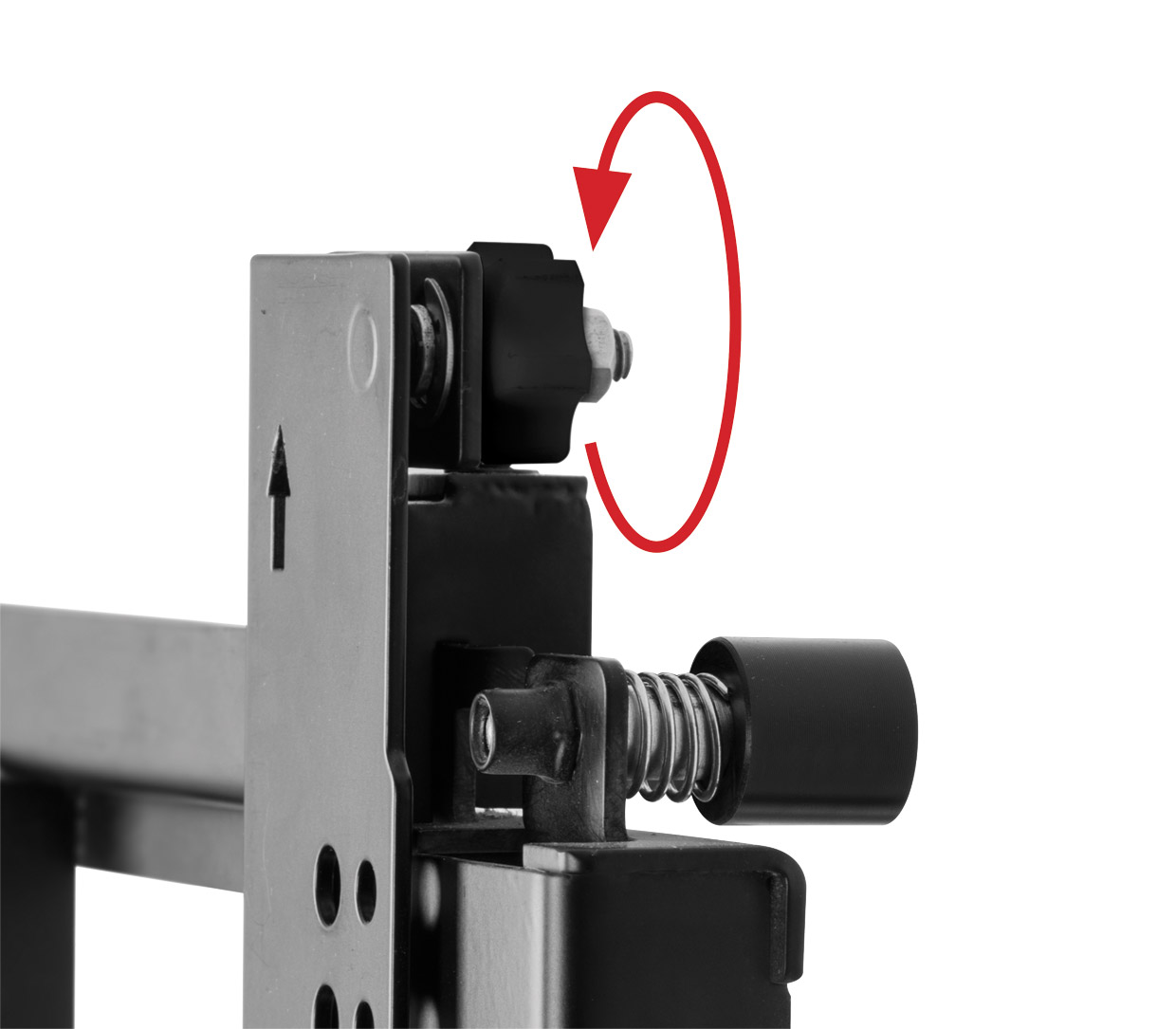

When using the VESA interface adaptors the total depth of the mount is increased by 6mm to 69.1mm when in compacted position, 240.1mm when in extended position. A ‘tool less’ micro adjustment control allows the installer to adjust +/-7.5mm per corner and adjust the screen height +15mm. An integrated locking system helps prevent accidental mount pop-out.
A series of spacer kits are available to aid installation position and calculation.
Flat to wall depth: 63.1mm; 69.1mm including VESA adaptors. Popped out depth: 235.1mm; 240.1mm including VESA adaptors. Maximum load: 50kg
Screen Spacer compatibility
