Contacta door entry loop systems have been designed for connection to intercom or door entry audio systems to enhance communication for hearing aid wearers. They provide clear communication, especially where background noise is a problem.
STS-K009 Surface mount entry system
abgekündigt
STS-K009 is a window intercom system that has been designed for use through safety screens in nursing/care homes, hospitals, receptions, and banks whereby security and/or social distancing is required.
The system, which is manufactured from mild steel and ABS plastic, includes STS-A31H amplifier, surface mounting entry unit, STS-SU1 staff loudspeaker, power supply, and IL-AE99 hearing loop aerial. The surface mounted entry unit features a call button, which when depressed alerts staff of the customer’s presence, with an audible channel to converse.
Dimensions (HxWxD): 164 x 89 x 63mm, surface mounted entry unit; 370 x 95 x 150mm, staff loudspeaker. Finish: Grey.

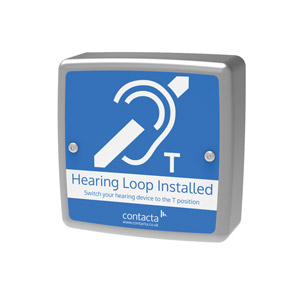

IL-EL42PB Wall mountable
This constant-current door entry loop system is designed to be installed in homes, office buildings, public building, or other commercial/private locations. It is manufactured from acrylic capped ABS, with the driver and multiloop antenna built into the sign. An automatic gain control (AGC) system ‘self-adjusts’ to the input source level to maintain a good audible level whilst in operation. IL-EL42PB can accommodate input signals from line out sources, low voltage loudspeaker outputs, voice over internet protocol (VOIP), or intercom systems.
The low power consumption of the IL-EL42PB means it can be fed from a compatible host door entry system providing 12-24V DC, or from the optional PS-55-01 power supply.
Dimensions (HxWxD): 128 x 128 x 45mm. Weight: 231g.
IL-EL42PF Flush wall mountable
Contacta IL-EL42PF has all the audio and operational features of the IL-EL42PB, however it is flush wall mountable with backbox.
Dimensions (HxWxD): 140 x 140 x 3mm, face plate; 110 x 110 x 42mm, back box. Weight: 218g.
