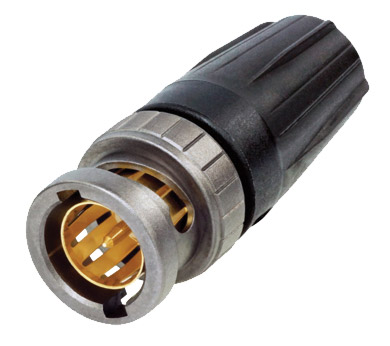

This range of high quality BNC connectors offers excellent mechanical and electrical performance and simple assembly. Precision machined components give true 75 ohm impedance and excellent return-loss, up to 12GHz, making them suitable for 12Gb/s 4K UHD, 3Gb/s HD-SDI 1080p, SD-SDI and analogue video. A compact variation on the traditional BNC twist-lock connector, mating / un-mating is achieved by twisting the whole connector, rather than just an awkward knurled front coupling nut as on conventional styles.
The integral cable strain relief boot gives an extended area of grip making these ideal for recessed connection panels or high-density termination panels , where restricted access to the ‘head’ of a conventional connector might be an issue. An integral black cable boot is standard with each connector (unless ordered in dissassembled packs - see ordering note at foot of group description) and provides strain relief. Additional coloured boots, for easy cable identification, may be ordered separately and substituted at the time of assembly. BST-BNC boots are for use with NBNC type connectors. A rubber cap with cable attachment loop is also available.
The centre pin, outer screen (braid) and outer jacket are crimped using a Neutrik crimp tool and die-set, see NEUTRIK CRIMP TOOLS - Co-axial connectors.
The correct size connector and corresponding crimp dies must be used for each cable.
Sizes for popular cables are listed and stocked, versions for other cables are available to special order, please contact Technical Support.
Required accessories: Neutrik crimp tool and die-set.
Optional accessories: Colour coded cable strain relief boots.
Ordering note:
Some types are also available disassembled, in bulk packs of 100. Note that cable boots are NOT included, and should be ordered separately as required.
