CANFORD FSM CABLE 2 pair, Black

Artikelnummer
31-002
Hersteller
Canford
Typennummer
  • FSM2
  • FSM
GTIN
5056704760349
Farbe
  • BlackBlack

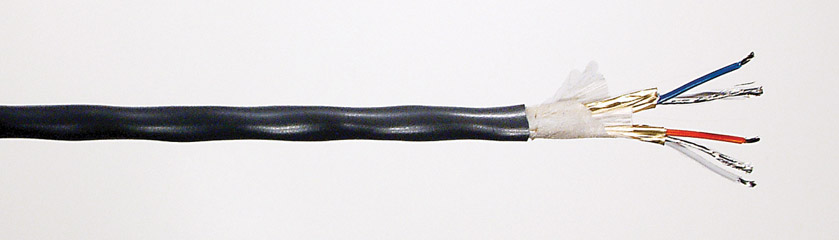

CANFORD FSM CABLE 2 pair, Black

Bilder können zum Illustrationszwecke angegeben werden. Bitte verweisen Sie auf die Produktbezeichnung.

CANFORD FSM CABLE 2 pair, BlackCANFORD FSM CABLE 2 pair, Black

Bestellangaben

MwSt. / Versand
2,32 €
pro Meter (zzgl. MwSt.)
100+ 1,85 €
500+ 1,81 €
1.000+ 1,74 €
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in Kontaktieren Sie uns.
Canford zweijährige Gewährleistung
RoHS Konform

CANFORD FSM SERIES - FOIL SCREENED STRANDED CONDUCTOR MULTIPAIR CABLE

This D'n'A series (Digital and Analogue) cable is designed to be suitable for both digital and analogue audio signals, with an impedance of 100 ohms which has been proven to be suitable for AES/EBU digital audio as well as analogue microphone and line level signals. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene).

Technical Specification:
Conductors: 30/0.10mm (0.235mm²) tinned copper wire
Insulation: Foamed polypropylene, 1.50mm overall diamater, according to IEC Cable Colour Codes
Lay-up: Two insulated conductors twisted together, laid up with 30/0.10mm tinned copper drain wire, overall aluminium/polyester "S-profile" foil tape screen
Overall jacket: Soft PVC, black, printed with metre markings
Impedance: 100 ohms (+/- 10 ohms)
Pair capacitance: 41pF/m core to core, 102pF/m core + core to screen
Overall diameter: FSM2 7.1mm, FSM4 9.0mm, FSM8 11.0mm, FSM12 14.1mm, FSM16 17.3mm, FSM24 19.6mm
Weight (kg/100 metres): FSM2 4.3kg, FSM4 6.8kg, FSM8 11.4kg, FSM12 16.5kg, FSM16 22.3kg, FSM24 32.7kg
Reel lengths: 1000m (FSM2, FSM4), 500m (FSM8, FSM12)
Cut lengths: Available in any multiple of 1 metre
