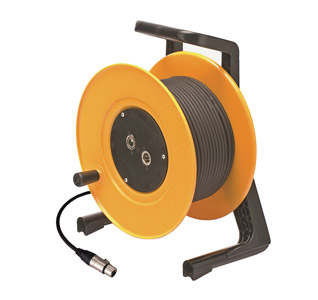

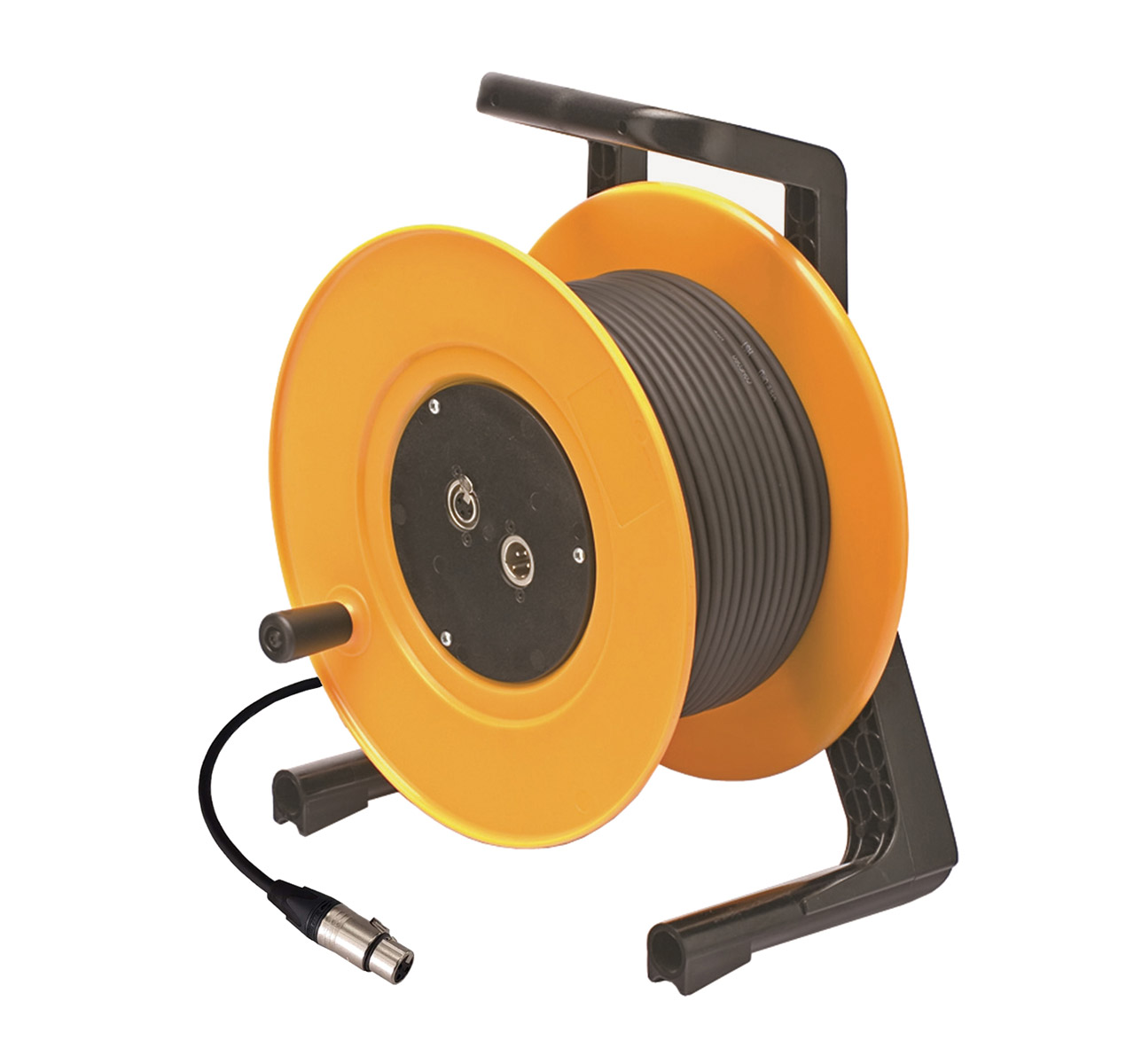

CANFORD CDP266HSTXF KONFEKTIONIERTES KABEL mit XLR-3F, XLR-3M auf Trommel, 50m Kabel auf XLR-3F

Artikelnummer
35-5102
Hersteller
Canford
Typennummer
  • CDP266HSTXF
GTIN
5056704774643
CANFORD CDP266HSTXF KONFEKTIONIERTES KABEL mit XLR-3F, XLR-3M auf Trommel, 50m Kabel auf XLR-3F
CANFORD CDP266HSTXF KONFEKTIONIERTES KABEL mit XLR-3F, XLR-3M auf Trommel, 50m Kabel auf XLR-3F

CANFORD AUDIOKABELTROMMELN - aus Kunststoff und Metall, vorkonfektioniert mit entsprechenden Kabeln

Canford bietet Audiokabeltrommeln aus Kunststoff und Metall an. Die Variante aus Gummi ist robust und leicht und verfügt über eine Kunststofftrommel mit Rahmen, die robust konstruiert sind. Die Metalltrommel verfügt über eine Stahltrommel mit Stahlrohrrahmen. Beide Typen sind mit einer robusten Handkurbel auf dem Trommelflansch sowie einer Trommelbremse im Rahmen integriert, um Bewegung auf dem Transportwege zu verhindern.

Einige Kabeltrommeln werden mit Steckverbindern auf dem Flansch offeriert, andere sind mit Kabelsteckverbindern auf beiden Enden vorkonfektioniert. Konfigurationsdetails sind unten in den Tabellen dargestellt.

Der Neutrik XLR ‘Convertcon’ bietet sowohl männliche- als auch weibliche Verbindungen in einem einzeln Kabelgehäuse (bitte beachten Sie: Diese Variante, mit der alten Neutrik DL-Serie Einbausteckverbinder, passt zusammen aber nicht verriegelt).

Andere Kombinationen von Steckverbindern, verschiedenen Kabelfarben und/oder Kabellängen sind als Sonderanfertigungen möglich.

Steckverbinder:
NC3FD-LX XLR 3-polige Einbaubuchse 41-131
NC3MD-LX XLR 3-poliger Einbaustecker 41-136
NC3FXX XLR 3-polige Kabelbuchse 41-031
NC3MXX XLR 3-poliger Kabelstecker 41-032
NC3FM-C XLR 3-polige Kabelstecker-/Buchse (‘Convertcon’) 40-313
Kabel:
HST Mikrofone oder or line-level Analog 30-150
SQ6.5 Starquad-Mikrofonkabel 30-430
SQ-R Widerstandsfähiges Starquad-Mikrofonkabel 30-440
FSJ2 2 Paar geschirmtes mehradriges Kabel 31-502
FSJ4 4 Paar geschirmtes mehradriges Kabel 31-504
FSJ8 8 Paar geschirmtes mehradriges Kabel 31-508

Kunststofftrommeln:

Artikelnummer Typ Flanschsteckverbinder 1 Flanschsteckverbinder 2 Kabel Kabelsteckverbinder Länge
35-5101 CDP266HSTXC NC3FD-LX NC3MD-LX HST NC3FM-C 50m
35-5102 CDP266HSTXF NC3FD-LX NC3MD-LX HST NC3FXX 50m
35-5103 CDP266HSTXM NC3FD-LX NC3MD-LX HST NC3MXX 50m
35-5104 CDP266SQXC NC3FD-LX NC3MD-LX SQ6.5 NC3FM-C 50m
35-5105 CDP266SQXF NC3FD-LX NC3MD-LX SQ6.5 NC3FXX 50m
35-5106 CDP266SQXM NC3FD-LX NC3MD-LX SQ6.5 NC3MXX 50m

Metalltrommeln:

CANFORD CABLE DRUMS - AUDIO - Plastic and metal drum, supplied with cables

This range of audio cable drums come with both plastic and metal cable drums. The plastic range are robust and lightweight, with plastic drums and frames of moulded high-strength plastic. Whilst the metal range all have steel drums, with steel tube frames. Both types have a fixed winding-handle on the drum flange plus a friction drum-brake incorporated into the frame to prevent movement in transit.

Some models consist of cable drums with connector combinations on the flange of the drum, whilst others have cable connector tails on both ends of the cable. Details outlining configurations can be found in the tables below.

The Neutrik XLR ‘Convertcon’ offers both male and female contacts in a single cable housing (note that this mates but does not latch with the older Neutrik DL series panel connectors).

Other connector combinations, other cable colours and lengths can be supplied to special order.

Connectors used:
NC3FD-LX XLR 3-pin female panel 41-131
NC3MD-LX XLR 3-pin male panel 41-136
NC3FXX XLR 3-pin female cable 41-031
NC3MXX XLR 3-pin male cable 41-032
NC3FM-C XLR 3-pin male/female cable (‘Convertcon’) 40-313
Cables used:
HST Microphone or line-level analogue 30-150
SQ6.5 Starquad microphone 30-430
SQ-R Ruggedised Starquad microphone 30-440
FSJ2 2 pair screened multipair cable 31-502
FSJ4 4 pair screened multipair cable 31-504
FSJ8 8 pair screened multipair cable 31-508

Plastic cable drums

Code Model Flange connector 1 Flange Connector 2 Cable Cable connector Length
35-5101 CDP266HSTXC NC3FD-LX NC3MD-LX HST NC3FM-C 50m
35-5102 CDP266HSTXF NC3FD-LX NC3MD-LX HST NC3FXX 50m
35-5103 CDP266HSTXM NC3FD-LX NC3MD-LX HST NC3MXX 50m
35-5104 CDP266SQXC NC3FD-LX NC3MD-LX SQ6.5 NC3FM-C 50m
35-5105 CDP266SQXF NC3FD-LX NC3MD-LX SQ6.5 NC3FXX 50m
35-5106 CDP266SQXM NC3FD-LX NC3MD-LX SQ6.5 NC3MXX 50m

Metal cable drums
