CANFORD RCM CABLE (BBC PSF1/6), Black

Artikelnummer

36-290

Hersteller

Canford

Typennummer

GTIN

5056704721203

Farbe

MwSt. / Versand

Quantity

2147 lieferbar Mehr benötigt?

Canford zweijährige Gewährleistung
RoHS Konform

CANFORD RCM - RF/DATA CABLE 50 ohm miniature (BBC PSF1/6)

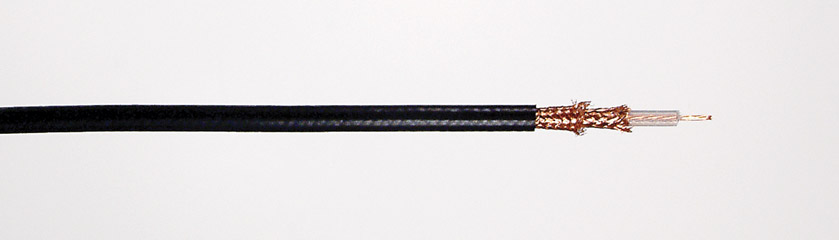

A high performance, miniature, 50 ohm double-screened coaxial cable, to a BBC specification for UHF and VHF applications.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Cable size group:	D
BBC specification:	PSF1/6M
Centre conductor:	7/0.32mm tinned copper wire
Dielectric:	Solid polyethylene, 2.95mm dia
Braid 1:	90% cover 0.1mm plain copper wire
Braid 2:	95% cover 0.1mm plain copper wire
Jacket:	PVC, black, 5.0mm OD
Impedance:	50 ohms
Capacitance (nom):	100pF/m
Attenuation at 200MHz:	25dB/100m
Attenuation at 1GHz:	60dB/100m
Max. voltage (peak):	5.2kV pulse 2.6kV RF
Weight:	4.4kg/100m
Reel length:	1000m
Cut lengths:	Available in any multiple of 1 metre

Brand	Code	Description
Telegartner	48-706	TELEGARTNER BNC Male cable, crimp, 50 ohm, groups D/G/V
Coax Connectors	48-5131	COAX CONNS 10-005-A3-AH BNC Male cable, crimp, 50 ohm, groups D/G/V
Coax Connectors	48-5141	COAX CONNS 10-005-A3-AH BNC Male cable, crimp, 50 ohm, groups D/G/V (pack of 100)

Brand	Code	Description
Telegartner	48-743	TELEGARTNER BNC Female panel,solder, 50 ohm, insulated, all groups
