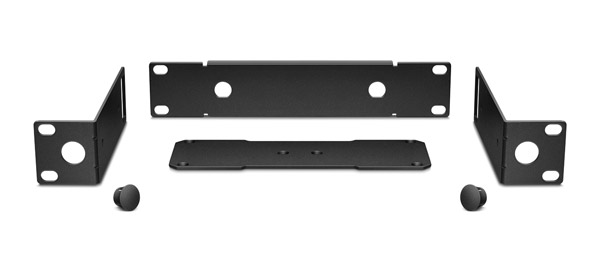

SENNHEISER XSW RACK MOUNT KIT

Sennheiser Evolution G4 IEM system is intended for those wanting to monitor stereo audio signals in professional applications such as stage or broadcasting. This range consists of a static transmitter and belt pack diversity receiver.

With the capability of using up to sixteen compatible frequencies and up to 42MHz bandwidth with multiple units, the G4 series of in-ear monitoring systems offers a choice of 1680 selectable frequencies (if location allows) within a UHF frequency range of either 606-648MHz (channel 38 ready) or 823-865MHz (channel 69/70 ready) depending on the model selected.

A HDX compander is used to increase dynamic range, pilot-tone squelch avoids RF interference when the transmitter is turned off. Easy set-up uses the receiver to perform an automatic frequency scan to search for available frequencies. Settings may be transferred between the receiver and transmitter in either direction using infra-red communication. The transmitter may be connected to an Ethernet network for configuration of multi-channel systems using software.

Transmitter and receiver are available separately or together as a complete system.

SR IEM G4 Transmitter - Fixed

The SR300 is a stereo transmitter, which can operate in mono, fed from the left audio input socket, powered by 12V DC from an included adapter. The metal half-rack, case can be rack-mounted with the included GA 3 rack mount kit.

The grey coloured front panel has a 6.35mm headphone socket, for local monitoring, with an associated volume control. A 'sync' button is used to transfer settings to a receiver, an 'ESC' button helps with menu navigation. An OLED display shows current frequency and bank, channel ID, AF level, transmission status, transmission power, equalizer setting, and input sensitivity. An auto-lock feature prevents unauthorised or accidental tampering. A jog wheel with push-button allows the user to edit any applicable settings within the menu. Sennheiser WSM control software, which may be downloaded, can be linked via an Ethernet network and compatible computer to give an overview of monitoring and data management for multi-channel systems.

The rear facing panel offers a BNC connection for aerial connection, an RJ45 connector to connect to a network and DC 12V/350mA power supply input. Two combination jack and XLR connectors provide balanced, line-level audio inputs; two 3-pole jack sockets provide loop-out connections to connect to other equipment.

Included accessories: GA 3 rack-mounting adapter, rod antenna, NT2-3 PSU, user manual and guides.

Audio input: +22 dBu maximum. Frequency response: 25Hz - 15kHz. Distortion: Less than 0.9% THD. Noise: Better than 90dBA. Modulation: Wideband FM stereo, MPX pilot tone. Power supply: 12V DC. Maximum power consumption: 350mA. Dimensions: 202 x 212 x 43 (DxWxH) mm. Weight: 980g.

EK IEM G4 Receiver - Belt pack

The EK 300 body pack receiver is designed to work with the SR IEM 300 transmitter to provide wireless audio monitoring to professionals requiring discreet and portable solution. A locking, 3.5mm, stereo jack socket can be used to connect the included IE 4 ear buds or other compatible earphones. Also positioned on the top of the belt pack receiver is a combined on/off and rotary volume control as well as a 120mm whip antenna.

The front of the pack has a backlit LC display, offering menu navigation and information such as RF signal levels, squelch threshold, transmitter modulation levels for the two audio channels, current transmission frequency, the name of the receiver, lock-mode status, battery status, mute status and whether the pilot tone is activated. An 'auto-lock function' avoids accidental changing of settings. LEDs indicate battery status and RF signal indication. The front folds down to reveal the battery compartment for 2x AA cells or a BA 2015 accupak rechargeable battery pack and the 'set' and 'escape' buttons. On the rear there is a removable metal belt-clip.

Included accessories: 1x IE 4 earphones, 2x AA cells, user manual and guides.

Sensitivity: Less than 2.5uV at 52dBAeff S/N. Adjacent channel rejection: 65dB. Intermodulation: -70dB. Noise: -90dB, 1mV, at peak deviation. Output: 2 x 100mW, at 32 ohms load. Connector: 3.5 mm. Power source: 2x AA cells or 1x BA 2015 accupak. Operating time: 4-6 hours. Dimensions (HxWxD): 82 x 64 x 24mm. Weight: 125g.

SR 2000 IEM series has been designed for professional touring, broadcast, and theatre application. Network remote control and a capability of using up to thirty-two compatible presets ensure the system can be utilised where more demanding usage is required.

SR 2050 IEM Transmitter - Rackmount

Sennheiser SR 2050 IEM is a 2-channel transmitter in a 1U 19-inch rackmount housing. It offers a 75MHz switching bandwidth that gives a choice of 3000 selectable frequencies (if location allows) within a UHF frequency range of either 606-678MHz (channel 38 ready). Of the 26 channel banks available, six are freely programmable, with up to 32 tunable channels in each in steps of 25kHz. The radio frequency (RF) output power is switchable at 10mW, 30mW, and 50mW levels. The transmitter may be connected to an Ethernet network for configuration of multi-channel systems using Sennheiser Wireless System Manager (WSM) software for PC.

The front facing panel duplicates all controls and displays for each of the two channels. A two-colour, backlit display give the user clear indication of AF and RF levels, frequency, channel name, output level, and channel. A rotary job wheel is positioned to the right of the display for easy navigation of menus and setup changes. Finally, an illuminated sync button enables the user to quickly link the transmitter to a compatible receiver such as the EK 2000 IEM. A 32ohm, 6.3mm jack headphone output with adjustable rotary volume controller allows for local signal monitoring. Each of the two transmitting channels has an independent and illuminated power/escape button.

The rear facing panel of the transmitter has a single IEC mains power input and cable grip. All other connections are duplicated across the two channels. These include dual (left and right) XLR/jack combination connectors for audio input, left and right 6.3mm jack audio loop outputs, RF output BNC connector, and RJ45 Ethernet connector.

Included accessories: Mains AC cable, 2x rod antenna, instruction manual, 4x device feet.

Frequency range: 606 – 678MHz, UK compatible. Modulation: FM, MPX-stereo. Signal to noise ratio: Greater than 90dB, A weighted. Compander: HDX. Peak deviation: +/-48kHz. Nominal deviation: +/-24kHz. Frequency response: 25Hz – 15kHz. Dimensions (WxDxH): 436 x 215 x 43mm. Weight: 2.9kg.

EK 2000 IEM Receiver - Beltpack

Sennheiser EK 2000 IEM in-ear monitor receiver utilises Adaptive Diversity Technology which employs the cable from connected earphones as a secondary antenna to reduce chance of dropout.

The bodypack receiver can be powered by optional Sennheiser BA 2015 battery pack, or two AA alkaline battery cells to give 4-6 hours operation. The battery/s are put in situ behind a locking door, which in turn is positioned below a display and navigation buttons. The display shows the battery life remaining, with three bars illustrating 100% remaining, two bars illustrating 70% remaining, and a single bar illustrating 30% remaining. A red LED flashes when the battery is low. The display also shows valuable information including frequency, channel, name, mute status, RF and AF levels. A further LED signifies RF frequency reception. The menu can be navigated via two buttons located on the front facing panel. A 3.5mm headphone output is associated with a rotary headphone volume controller. The rear facing side of the receiver has a removable metal belt clamp.

Frequency response: 25Hz – 15kHz. Modulation: FM, MPX-stereo. Signal to noise ratio: Greater than 90dB, A weighted. Audio output power: 100mW, 32ohm. Squelch threshold: off, 5 to 25dBuV in 2dB steps. Dimensions (HxWxD): 82 x 64 x 24mm. Weight: 200g

IE 4

Designed for wireless monitor applications, Sennheiser IE 4 reproduces 'an outstanding sound quality and high dynamic'. The three pairs of ear sleeves, supplied, give an 'optimum fit' to different ear canals, resulting in 'high isolation against environmental noise as well as a very good bass response'.

Included accessories: 3 pairs of ear sleeves – small, medium, and large.

Colour: Black. Impedance: 16 ohm, nominal. Sound pressure level: 106dB SPL, 1mW. Connector: Right-angled, 3.5mm stereo jack. Cable length: 1.4m.

IE 100 PRO

Designed for in-ear monitoring, IE 100 Pro earphones have a dynamic transducer, a frequency response of 20Hz to 18kHz, and a sound pressure level of 115dB. Available in black, red, or clear variants, IE 100 Pro have a detachable 1.3m cable terminating in 3.5mm stereo jack connector.

Included accessories: 1.3m straight cable, small/medium/large silicone adapters, medium foam adapter, soft pouch, and cleaning tool.

Colour: Black/clear/red. Impedance: 20 ohm, nominal. Total harmonic distortion: less than 0.1%, 1kHz, 94dB. Sound pressure level: 115dB SPL, 1mW. Connector: Right-angled, 3.5mm stereo jack. Cable length: 1.3m.

IE 400 PRO

Like IE 100 Pro, IE 400 Pro earphones have a dynamic transducer, however they an extended frequency response of 6Hz to 19kHz, and a sound pressure level of 123dB. IE 400 Pro are available in clear or smoky black variants. A detachable 1.3m cable terminates with 3.5mm stereo jack connector, and a 6.3mm jack adapter is supplied.

Spare or replacement earphones are available:

508584 is available as spare black straight cable. 508478 is available as spare clear twisted cable.

Included accessories: 1.3m straight cable, 6.3mm jack adapter, small/medium/large silicone adapters, small/medium/large foam adapters, transport case, and cleaning tool.

Colour: Clear/smoky black. Impedance: 16 ohm, nominal. Total harmonic distortion: less than 0.08%. Sound pressure level: 123dB SPL, 1mW. Connector: Right-angled, 3.5mm stereo jack with 6.3mm adapter. Cable length: 1.3m. Weight: 18g.

IE 500 PRO

Sennheiser IE 500 Pro earphones offer ‘high resolution and distortion free’ sound reproduction. The 7mm dynamic driver produces a maximum SPL of 126dB and a frequency response of 6Hz to 20kHz. IE 500 Pro are available in clear or smoky black variants. A detachable 1.3m twisted cable terminates with 3.5mm stereo jack connector, and a 6.3mm jack adapter is supplied.

Spare or replacement earphones are available:

508584 is available as spare black straight cable. 508478 is available as spare clear twisted cable.

Included accessories: 1.3m straight cable, 6.3mm jack adapter, small/medium/large silicone adapters, small/medium/large foam adapters, transport case, and cleaning tool.

Colour: Clear/smoky black. Impedance: 16 ohm, nominal. Total harmonic distortion: less than 0.08%. Sound pressure level: 126dB SPL, 1mW. Connector: Right-angled, 3.5mm stereo jack with 6.3mm adapter. Cable length: 1.3m. Weight: 18g.

A range of Sennheiser earphone spares and consumable parts are also available to order. See SENNHEISER IN-EAR EARPHONES.
