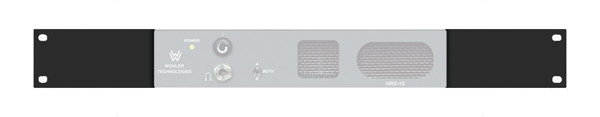

WOHLER RE-1 RACK MOUNTING BRACKETS For HRS-1S, centre mount

AMP1A PLUS

Wohler AMP1A Plus audio monitor is a self-powered, stereo audio monitoring of two analogue channels (1x stereo channel). AMP1A Plus contains four transducers driven by three power amplifiers. One amplifier/driver combination handles midrange and high frequency information in stereo, while the second handles summed low frequency information below the 500Hz crossover point.

The design provides focused sound for operators in a near field of 1-3ft. The speaker output is 5watts RMS per side, 10watts peak; with RMS bass of 10watts continuous/20watts peak. Peak acoustic output is rated at 98dB SPL at 2ft. Extended high frequency response reveals potential problems with audio whine or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds.

A 6.35mm headphone jack with associated volume control is positioned on the front facing panel. When the headphone output is in use, the speakers are muted automatically. All audio I/O connectivity, including loop-through, is by way of 3-pin XLR connectors.

Power consumption: 35W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 44 x 254mm. Weight: 4.6kg.

AMP1-DA/106

AMP1-DA/106 is a self-powered, 2-channel audio monitor analogue and AES/EBU digital sources. 106 segment LEDs add visual monitoring. This audio monitor is suited for use in VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite link and cable TV facilities, and on-air radio studios.

The design provides focused sound for operators in a near field of 1-3ft. The speaker output is 5watts RMS per side, 10watts peak; with RMS bass of 10watts continuous/20watts peak. Peak acoustic output is rated at 98dB SPL at 2ft. Extended high frequency response reveals potential problems with audio whine or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds.

A tri-colour LED design allows a variety of options such as phase correlation, peak hold, and alternate scales. The standard display mode is set as a single segment PPM “dot” above a VU bar; each segment’s colour is fixed according to its position on the scale. Level calibration may be set via dip switches to select one of four different calibration levels.

A 6.35mm headphone jack with associated volume control is positioned on the front facing panel. When the headphone output is in use, the speakers are muted automatically. Other than the headphone output on the front facing panel, all I/O connectivity is on the rear facing panel; including 2x unbalanced BNC AES/EBU digital inputs, 2x balanced 3-pin XLR analogue inputs (1 stereo), and 2x balanced 3-pin XLR analogue output of selected source.

Power consumption: 30W. Power supply: 24V DC, 3.0A. Dimensions (WxHxD): 483 x 44 x 305mm. Weight: 6.4kg.

AMP1-2SDA, AMP1-2SDA+

Both AMP1-2SDA and AMP1-2SDA+ are 1U, rackmountable, 2-channel audio monitors designed for network facility or OB truck for live events. The monitors feature a large front panel screen that displays the selected source and monitored pair; along with brightly displayed levels on 2 x 26 segment LED meters. Additional features include simple tone controls for adjusting audio output and an audio trim control for altering the analogue output levels.

Audio connectivity is available via either 1 x 3G-SDI (with looped output), 1 x AES3 input pair, and either of 2 pairs of Analog inputs (balanced or unbalanced). Analogue and AES3 outputs of the selected pair are included in the unit for external monitoring. In addition, AMP1-2SDA+ has 8 pairs of both analogue and AES3 on 3x DB-25 inputs as standard.

Speaker power output is 5watts RMS per side, 12watts peak, with a peak acoustic output of 90dB SPL at 2ft.

Power consumption: 60W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 107mm. Weight: 2.3kg.

AMP1-8-M, AMP1-16-M

Both of these units offer the same dual input with 3G, HD, and SD-SDI. AMP1-8-M is an 8-channel audio monitor, AMP1-16-M is a 16-channel audio monitor. Both have been designed by Wohler for use in the studio or on the road.

Both units have automatic frame rate detection, which on the AMP1-8-M allows the user to get quick selection and summing of up to eight audio channels and choose between two SDI inputs - toggling selection of channels 1-thru-8 or channels 9-thru-16. AMP1-16-M allows the user to get quick selection and summing of eight audio pairs and choose between two SDI inputs and access 16-channels via 8 pairs.

Other standard features include volume and balance controls, push-button selection of audio channels, SDI looped outputs, and conversion to analogue on XLR. Finally, level meters and phase display on two 2.4-inch LCDs.

The rear panel host I/O connectivity including dual, balanced 3-pin XLR analogue outputs, RJ45 Ethernet connection, SDI 1 I/O on BNC, SDI 2 I/O on BNC, and a fifth BNC connection for selected SDI out. Mains connection is via IEC type input. The front facing panel hosts a USB connection for software updated and storage transfer, and a single 6.35mm headphone jack output with associated volume control. The class D amplifier allows the inbuilt speakers to produce 6watts RMS per side, 12watts peak.

Power consumption: 60W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 44 x 108mm. Weight: 2.3kg.

Wohler eAMP series offers ‘fast and intuitive’ confidence monitoring of AES3 and analogue audio sources. Whether in the studio or on the road, eAMP units provide simultaneous selection and summing of the selected source. They also feature adjustable volume and balance controls, clear display of levels, and phase indications.

eAMP monitors have been designed to be easier to operate than the now-obsolete Wohler S8. They include a wide 7-inch LCD touchscreen display providing fast access to input sources, meters and menus, all augmented by hardware controls. Software upgrades include loudness, presets, web meters/monitoring/configuration and customized output routing. Dolby D, DD+ and E decoding are also optional add-ons.

eAMP1-8-M, eAMP1-16-M

Being the replacement models for AMP1-8-M, AMP1-16-M many of the features are the same, including dual input with 3G, HD, and SD-SDI. One of the main upgrades is the 7-inch LCD touchscreen which for better monitoring, menu navigation and selection, and adjustment. Another upgrade is the lower power consumption which is 19W as opposed to 60W. eAMP1-8-M is an 8-channel audio monitor, eAMP1-16-M is a 16-channel audio monitor. Both have been designed by Wohler for use in the studio or on the road.

Both units have automatic frame rate detection, which on the eAMP1-8-M allows the user to get quick selection and summing of up to eight audio channels and choose between two SDI inputs - toggling selection of channels 1-thru-8 or channels 9-thru-16. eAMP1-16-M allows the user to get quick selection and summing of eight audio pairs and choose between two SDI inputs and access 16-channels via 8 pairs.

Other standard features include volume and balance controls, push-button selection of audio channels, SDI looped outputs, and conversion to analogue on XLR. Finally, level meters and phase display on two 2.4-inch LCDs.

The rear panel hosts I/O connectivity including dual, balanced 3-pin XLR analogue outputs, RJ45 Ethernet connection for unit management, SDI 1 I/O on BNC, SDI 2 I/O on BNC, and a fifth BNC connection for selected SDI out. Mains connection is via IEC type input. The front facing panel hosts a USB connection for software updated and storage transfer, and a single 6.35mm headphone jack output with associated volume control. The class D amplifier allows the inbuilt speakers to produce 5watts RMS per side, 12watts peak.

Power consumption: 19W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 1.5kg.

eAMP1-S8-DA - 8-channel, AES3/Analogue

Wohler eAMP1-S8-DA is an 8-channel, baseband only, audio monitor for AES3 and analogue signals. Connectivity includes dual RCA (phono) analogue input, balanced 8-channel analogue inputs/outputs via D-sub connection, analogue output via dual, balanced 3-pin XLR, and 8-channel AES I/O on 15-pin d-sub connector. Mains input is by way of IEC connector and system management connection is via RJ45. The 7-inch touchscreen display has a viewing angle of 160x160 degrees (HxV), and the speaker output is 5watts RMS per side, 12watts peak; with a peak acoustic output of 90dB SPL at 2ft.

Optional upgrades: OPT-e Package, OPT-DOLBY (829174).

Power consumption: 19W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 1.5kg.

eAMP1-S8-MDA - 8-channel, AES3/Analogue/3G-SDI

An 8-channel, baseband only, dual 3G-SDI input, audio monitor for AES3 and analogue audio signals. Connectivity includes dual 3G-SDI input on BNC connector, dual RCA (phono) analogue input, balanced 8-channel analogue inputs/outputs via D-sub connection, analogue output via dual, balanced 3-pin XLR, and 8-channel AES I/O on 15-pin d-sub connector. Mains input is by way of IEC connector and system management connection is via RJ45. The 7-inch touchscreen display has a viewing angle of 160x160 degrees (HxV), and the speaker output is 5watts RMS per side, 12watts peak; with a peak acoustic output of 90dB SPL at 2ft.

Optional upgrades: OPT-e Package, OPT-DOLBY (829174).

Power consumption: 19W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 1.5kg.

eAMP1-S8-2MDA - 8-channel, AES3/Analogue/Dual 3G-SDI

eAMP1-S8-2MDA is an 8-channel, baseband only audio monitor with dual 3G-SDI inputs, AES3 and analogue I/O, and a 7-inch wide touchscreen. Connectivity includes SDI-1 on dual 3G-SDI I/O on BNC connectors, SDI-2 on dual 3G-SDI I/O on BNC connectors, single BNC connector for selected SDI output, dual RCA (phono) analogue input, balanced 8-channel analogue inputs/outputs via D-sub connection, analogue output via dual, balanced 3-pin XLR, and 8-channel AES I/O on 15-pin d-sub connector. Mains input is by way of IEC connector and system management connection is via RJ45. The 7-inch touchscreen display has a viewing angle of 160x160 degrees (HxV), and the speaker output is 5watts RMS per side, 12watts peak; with a peak acoustic output of 90dB SPL at 2ft.

Optional upgrades: OPT-e Package, OPT-DOLBY (829174).

Power consumption: 19W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 1.5kg.

eAMP1-S16-MDA - 16-channel, AES3/Analogue/3G-SDI

Wohler eAMP1-S16-MDA has the same feature set, functionality, and I/O connectivity options as eAMP1-S8-MDA, however it has 16-channel monitoring.

Optional upgrades: OPT-e Package, OPT-DOLBY (829174).

Power consumption: 19W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 1.5kg.

eAMP1-S16-2MDA - 16-channel, AES3/Analogue/Dual 3G-SDI

eAMP1-S16-2MDA has the same feature set, functionality, and I/O connectivity options as eAMP1-S8-2MDA, however it has 16-channel monitoring.

Optional upgrades: OPT-e Package, OPT-DOLBY (829174).

Power consumption: 65W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 2.5kg.

Designed for use in broadcast studio, OB vans, and studio monitoring, Wohler iAM series of audio monitors include a variety of feature sets for multiple levels of use. iAM series audio monitors contain an onboard web server ensuring multiple units on the same network can be updated, monitored and controlled via a browser-based user interface. The same interface supports configuration with role-based authentication that protects critical configurations from unauthorized alteration.

iAM1-8 - 8-channel, 1U

iAM1-8 is an 8-channel, 3G-SDI and analogue audio monitor with triple 2.4inch touchscreens. The audio monitor also comes with loudness monitoring and phase status as standard. Designed for users who only need 8-channels of monitoring, iAM1-8 is said to be ‘easy to operate’, and provide ‘fast access’ to meters, menus and presets.

Audio loudness metering uses ITU-R BS.1770 or EBU R128 standards. Connectivity includes 2x 3G-SDI inputs via BNC connectors, 1x 3G-SDI output (of selected source) via BNC connector. An additional 8-channels of analogue I/O is obtainable via optional cards.

Optional upgrades: OPT-AES, OPT-MADI, OPT-DOLBY, OPT-OUTPUT ROUTING, OPT-DANTE (829171 or 829171-1), OPT-RAVENNA 64, OPT-ANLG/TOS, OPT-SFP CARD, SFP-2110 W/Ember+, SFP-2110 W/NMOS, SFP-2022-6, SFP-2110 W/Ember+ + 2022-6, SFP-2110 W/NMOS+2022-6, SFP-SDI, SFP-SDI-Fiber, SFP-MADI-MM-Fiber, SFP-MADI-SM-Fiber.

Power consumption: 65W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 2.5kg.

iAM2-8 - 8-channel, 2U

Wohler iAM2-8 shares much of the functionality of iAM1-8, however it is housed in a 2U rackmountable chassis. iAM2-8 has one fewer touchscreen than the three of the iAM1-8, however they are larger in form, measuring 4.3inches each. The speaker output power is 15watts RMS per side, 30watts peak, with a peak acoustic output of 104dB SPL at 2ft.

Optional upgrades: OPT-AES, OPT-MADI, OPT-DOLBY, OPT-OUTPUT ROUTING, OPT-DANTE (829171 or 829171-1), OPT-RAVENNA 64, OPT-ANLG/TOS, OPT-SFP CARD, SFP-2110 W/Ember+, SFP-2110 W/NMOS, SFP-2022-6, SFP-2110 W/Ember+ + 2022-6, SFP-2110 W/NMOS+2022-6, SFP-SDI, SFP-SDI-Fiber, SFP-MADI-MM-Fiber, SFP-MADI-SM-Fiber.

Power consumption: 60W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 89 x 140mm. Weight: 3.6kg.

iAM1-12G - 16-channel, 1U

Wohler iAM1-12G is a 16-channel, 12G-SDI audio-only monitor that is IP ready. As standard iAM1-12G has 12G-SDI and analogue inputs, loudness monitoring and phase status. Featuring 3x 2.4inch touchscreen LCD panels, iAM1-12G is designed to be easily operated, providing fast access to meters, menus and presets. The speaker output is 5watts RMS per side, 12watts peak, with a peak acoustic output of 90dB SPL at 2ft.

The user is able to license additional signal formats and processing options, including Dolby, AoIP, Toslink and 8-channel Analogue, as and when needed – ensuring the product is future proof. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

Optional upgrades: OPT-AES, OPT-MADI, OPT-DOLBY, OPT-OUTPUT ROUTING, OPT-DANTE (829171 or 829171-1), OPT-RAVENNA 64, OPT-ANLG/TOS, OPT-SFP CARD, SFP-2110 W/Ember+, SFP-2110 W/NMOS, SFP-2022-6.

Power consumption: 65W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 2.5kg.

iAM-SUM8, iAM-SUM16, iAM-SUM32

A sub-series of ‘easy to use’, IP-ready audio monitors/mixers with options of 8, 16 or 32-channel configurations. All versions have a single 7-inch touchscreen with a viewing angle of 160 x 160degrees, and feature access control to lockout unauthorised setting adjustment. The audio monitors can be configured to operate in either single channel or pair mode and offer 3G-SDI connectivity and a pair of analogue inputs and outputs as standard. Speaker output is 5watts RMS per side, 12watts peak.

Connectivity includes 2x 3G-SDI input on BNC connectors, 1x 3G-SDI output on BNC connector, and 1x pair analogue audio input/outputs on 3-pin XLR connectors. Audio loudness can be measures using ITU-R BS.1770 or EBU R128 standards.

Designed for use at home in quality control, outside broadcast, and live-to-air production environments, iAM-SUM provides ‘intuitive audio monitoring’ with access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing.

Optional upgrades: OPT-AES, OPT-MADI, OPT-OUTPUT ROUTING, OPT-DANTE (829171 or 829171-1), OPT-RAVENNA 64, OPT-ANLG/TOS, OPT-SFP CASD, SFP-2110 W/Ember+, SFP-2110 W/NMOS, SFP-2022-6, SFP-2110 W/Ember+, SFP-2110 W/NMOS+ 2022-6, SFP-SDI, SFP-SDI-Fiber, SFP-MADI-MM-FIBER, SFP-MADI-SM-FIBER.

Power consumption: 65W. Power requirements: 100-240 VAC ±10%, 50/60Hz. Dimensions (WxHxD): 483 x 45 x 140mm. Weight: 2.5kg.
